Our pneumatic forging hammer from 9kg to 75kg are widely used by blacksmith for the art forging,from 150kg to 2000kg are widely used in the industrial forging.

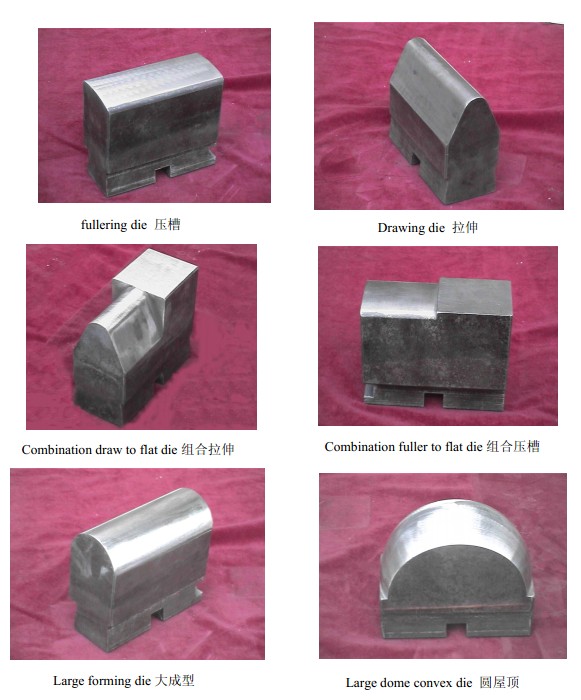

Pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
Features:
1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
The main technical parameter of industrial pneumatic forging hammer | ||||||||
Model | C41-150 | C41-250 | C41-400 | C41-560 | C41-750 | C41-1000 | C41-2000 | |
Weight of falling parts(kg) |
150 | 250 | 400 | 560 | 750 | 1000 | 2000 | |
Maximum hit energy(kj) | 2.5 | 5.6 | 9.5 | 13.7 | 19 | 27 | 54 | |
Hit number(min-1) | 180 | 140 | 120 | 115 | 105 | 95 | 80 | |
Heigh of working area(mm) |
370 | 450 | 530 | 600 | 670 | 800 | 1000 | |
Tup axis to frame front(mm) |
350 | 420 | 520 | 550 | 750 | 770 | 950 | |
Dimension of top die surface(L x W) (mm) |
200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 | |
Dimension of bottom die surface(L x W) (mm) |
200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 | |
Forges | Square(mmxmm) | 130x130 | 145x145 | 220x220 | 270x270 | 270x270 | 290x290 | 350x350 |
Round(mm) | Φ145 | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | Φ400 | |
Motor | Type | Y180M-4-B3 | Y180L-4-B3 | Y200L-4-B3 | Y280S-6-B3 | Y280M-6-B3 | Y315S-6-B3 | Y315L2-6-B3 |
Power(kw) | 18.5 | 22 | 30 | 45 | 55 | 75 | 132 | |
Weight | Hammer(kg) | 3260 | 5000 | 8000 | 9800 | 17000 | 20000 | 48000 |
Anvil block(kg) | 1500 | 2500 | 4800 | 6720 | 9000 | 13000 | 24000 | |
Outside Size | 2390x1085 x2150 |
2639x1155 x2540 |
2785x1400 x2884 |
3464x1500 x3157 |
3905x1370 x3175 |
4125x1500 x3770 |
4200x2300 x4390 |
The main technical parameter blacksmith pneumatic forging hammer | ||||||||
Model | C41-9 | C41-15 | C41-25 | C41-40 | C41-55 | C41-75 | ||
Weight of falling parts (kg) | 9 | 15 | 25 | 40 | 55 | 75 | ||
Maximum hit energy(kj) | 0.09 | 0.16 | 0.27 | 0.53 | 0.7 | 1 | ||
Diameter of the working cylinder(mm) |
100 | 115 | 165 | 200 | 215 | 210 | ||
Diameter of the compressing cylinder(mm) |
105 | 125 | 170 | 205 | 220 | 240 | ||
Hit number (min-1) | 245 | 245 | 250 | 245 | 230 | 210 | ||
Height of working area (mm) | 135 | 160 | 240 | 230 | 270 | 300 | ||
Tup axis to frame front (mm) | 120 | 140 | 200 | 235 | 270 | 280 | ||
Dimension of top die surface(L x W) (mm) |
60x35 | 70x40 | 100x50 | 116x53 | 135x60 | 145x65 | ||
Dimension of bottom die surface(L x W)(mm) |
60x35 | 70x40 | 100x50 | 116x53 | 135x60 | 145x65 | ||
Maximum round steel can be forged(Diameter)(mm) |
30 | 35 | 48 | 68 | 75 | 85 | ||
Maximum square steel can be forged(mm) |
25x25 | 30x30 | 40x40 | 52x52 | 60x60 | 65x65 | ||
Distance from bottom die surface to base(mm) |
325 | 370 | 410 | 500 | 610 | 750 | ||
Machine floor space(L x W)(mm) |
790x550 | 850x500 | 1320x610 | 1265x1470 | 1435x1650 | 1430x1478 | ||
Machine height (above the ground) (mm) |
950 | 980 | 1300 | 1390 | 1590 | 1853 | ||
Motor | Type | Y90L-4 | Y100L-4 | Y112M-6 | Y132MI-6 | Y132M2-6 | Y160M-6 | |
Rate power(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | ||
Speed(r/min-1) | 1400 | 1400 | 970 | 960 | 960 | 970 | ||
Total weight of the hammer (kg) |
250 | 290 | 720 | 860 | 1300 | 2500 |
