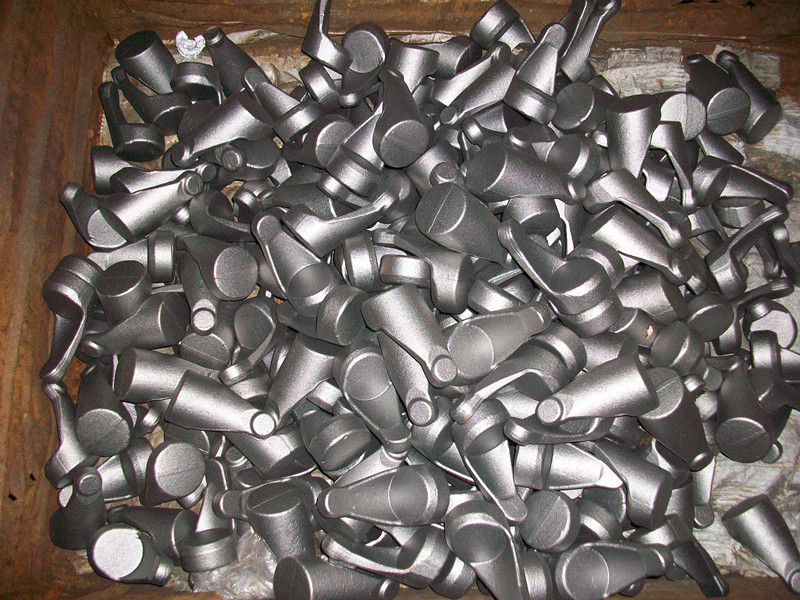

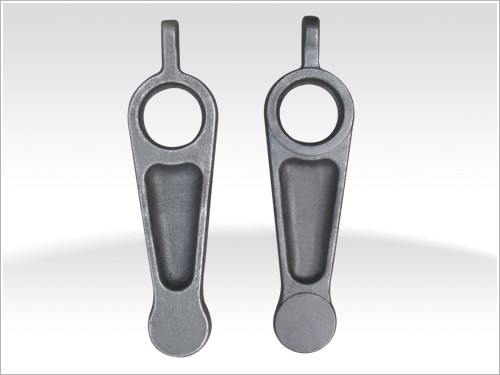

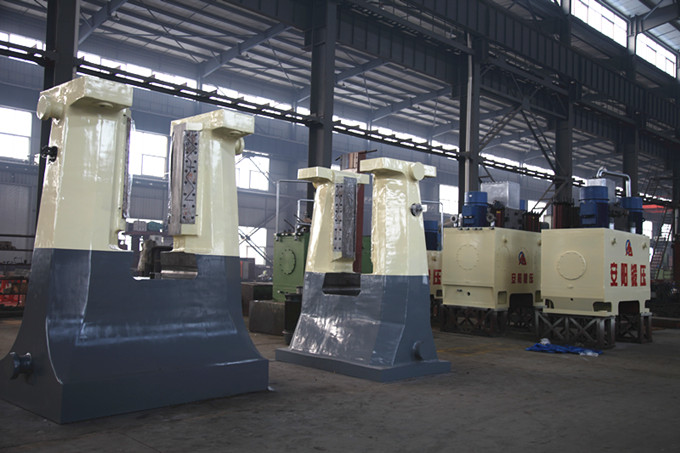

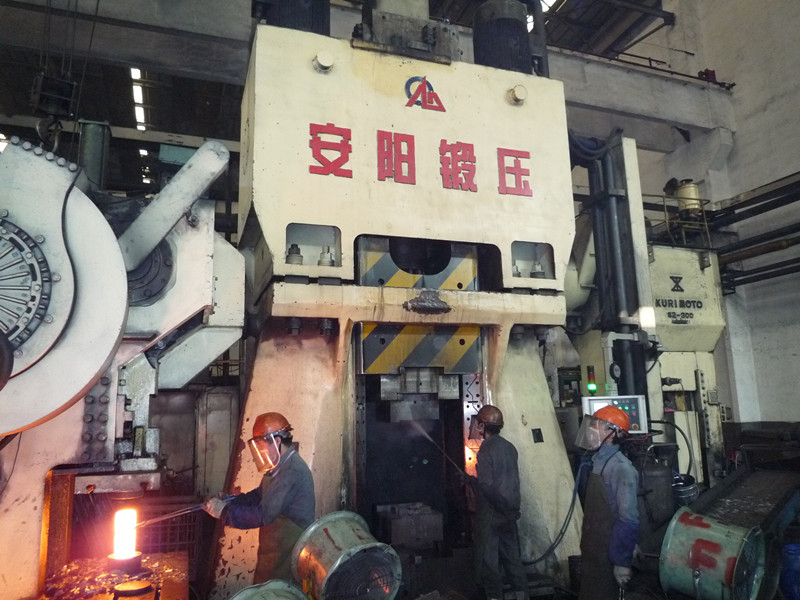

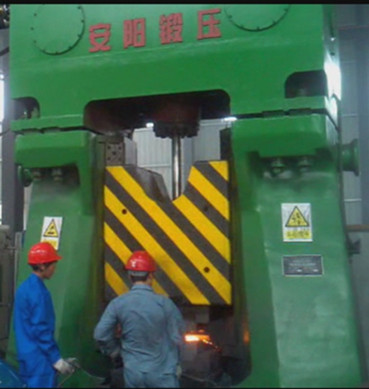

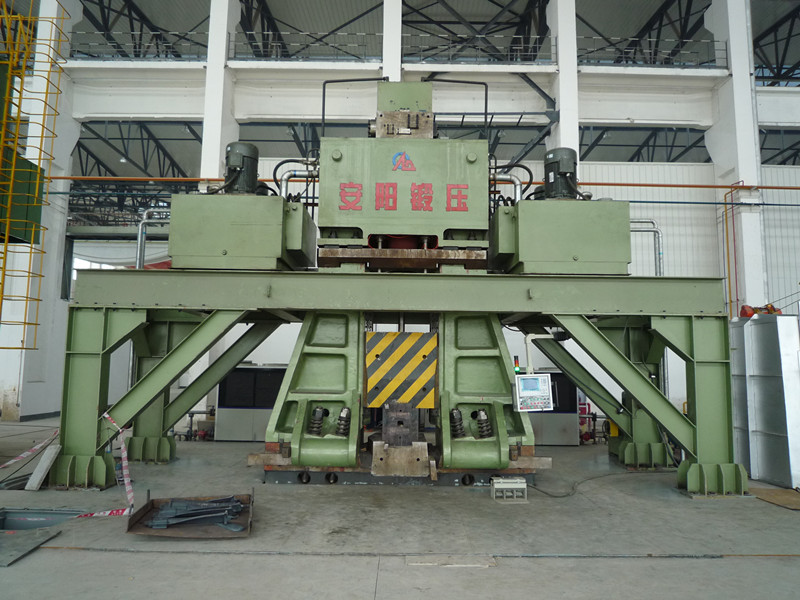

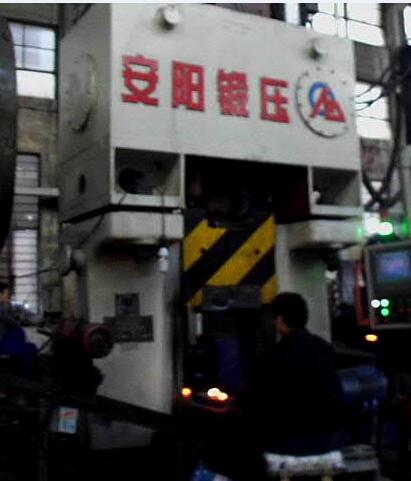

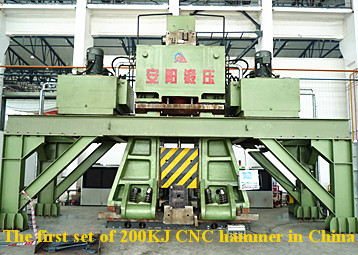

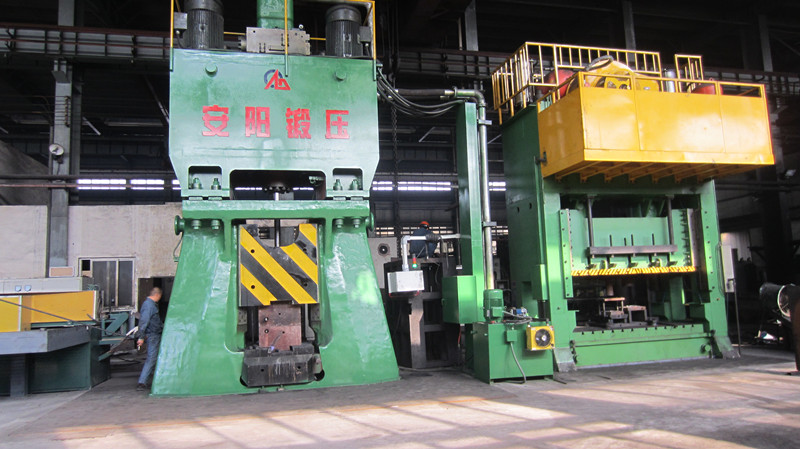

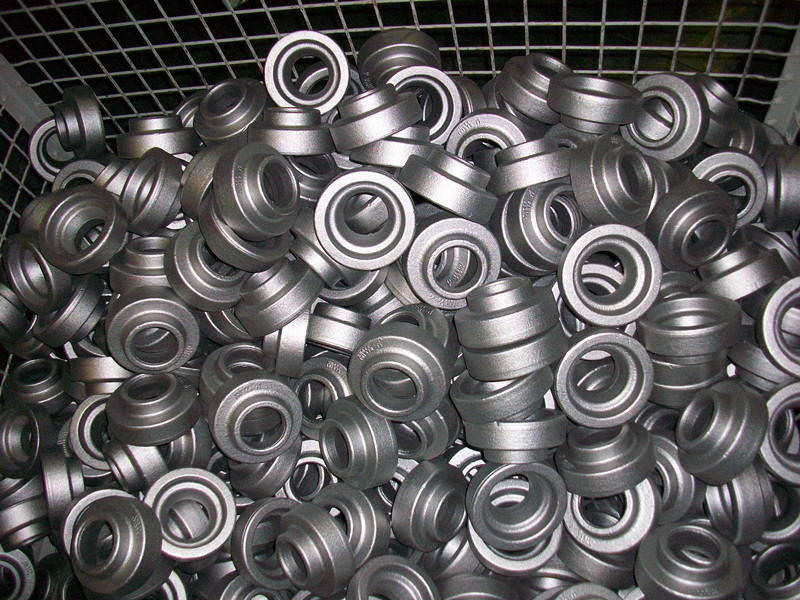

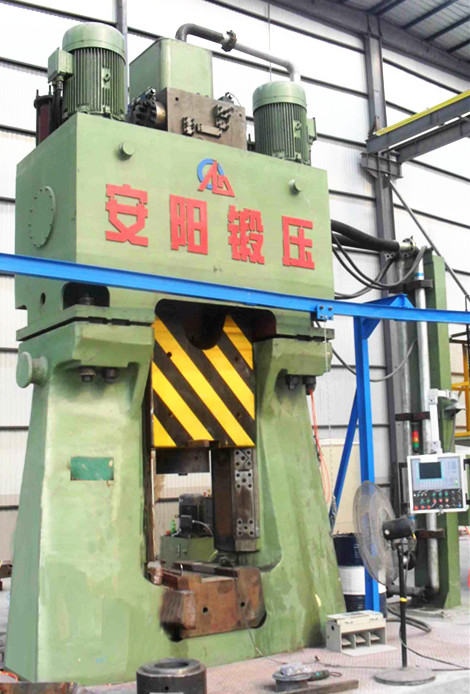

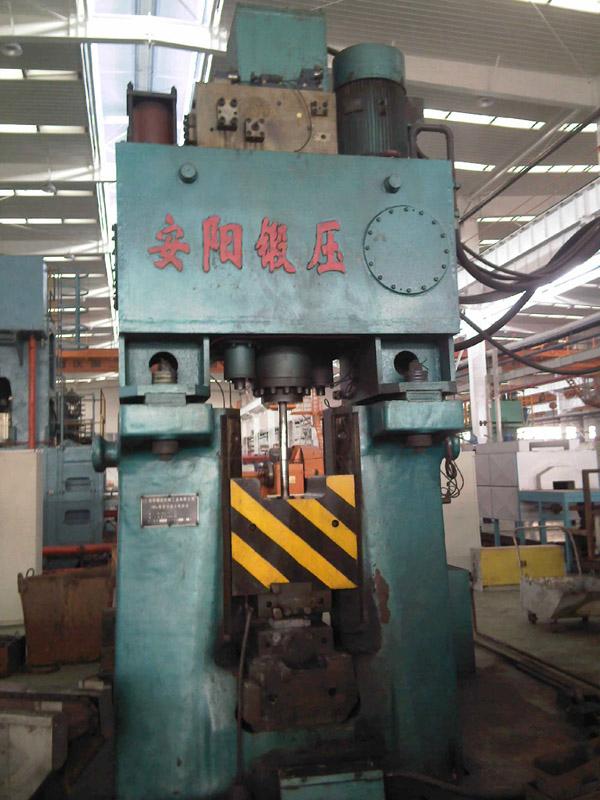

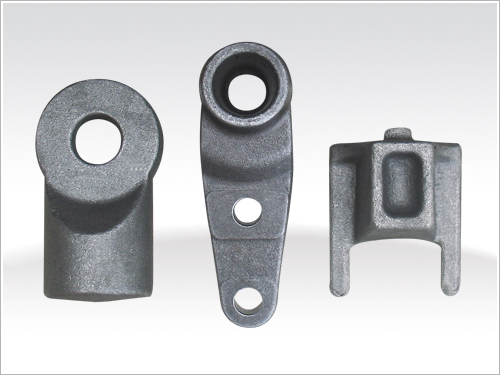

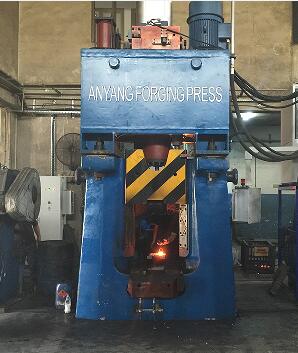

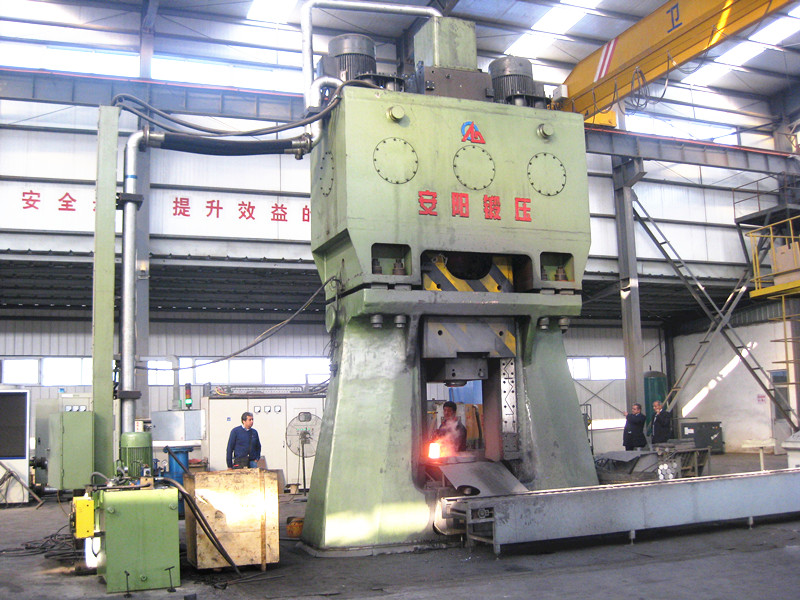

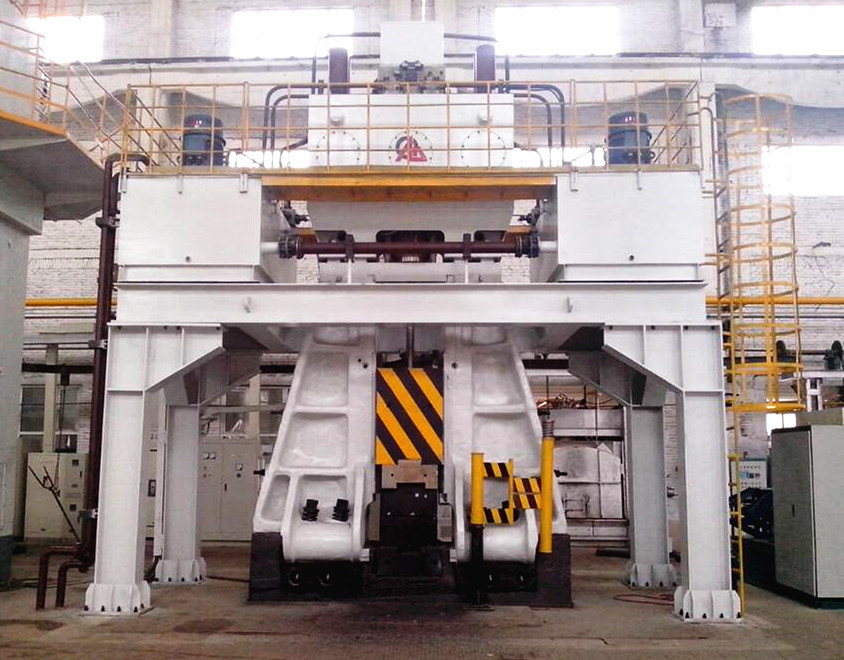

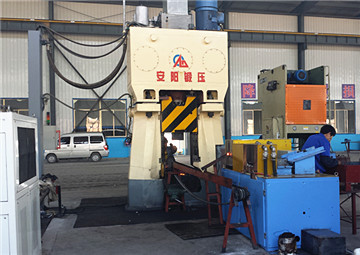

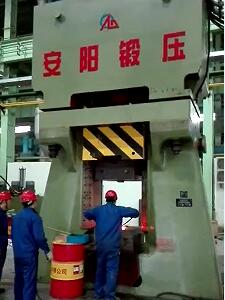

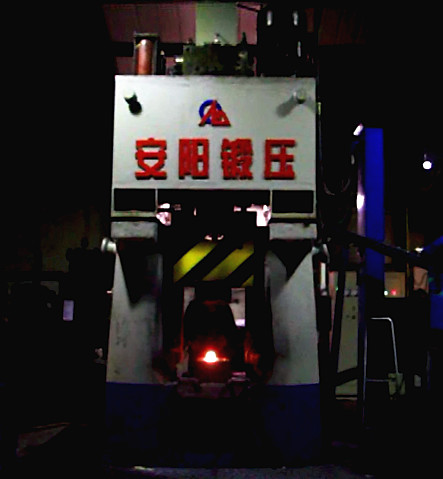

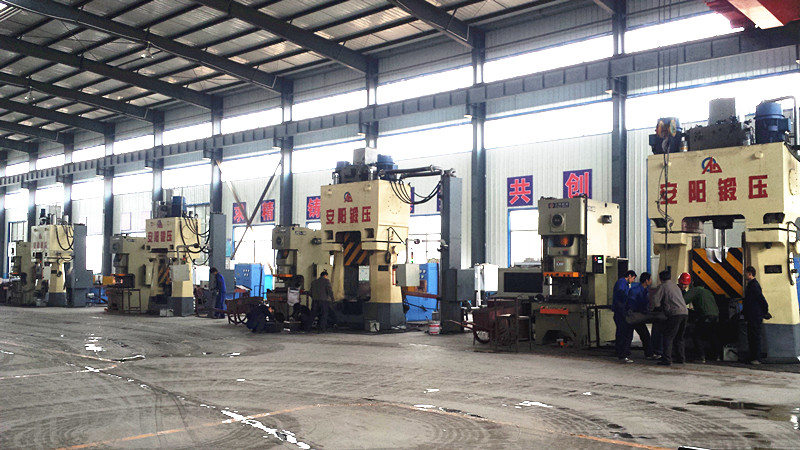

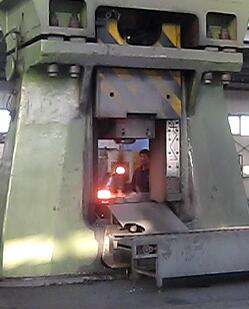

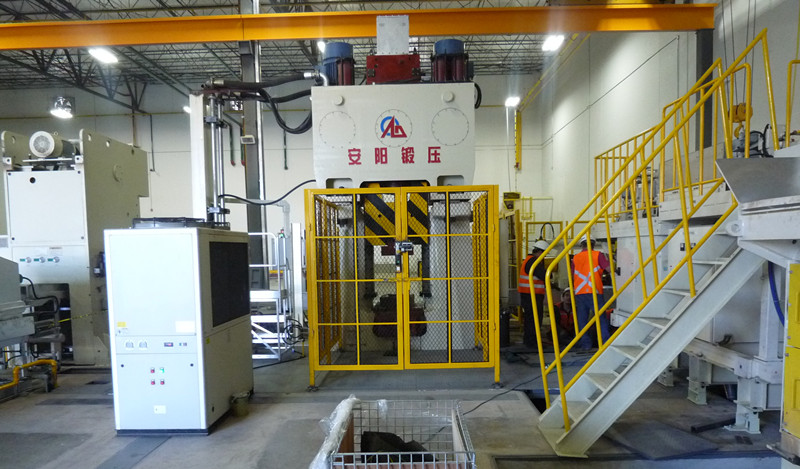

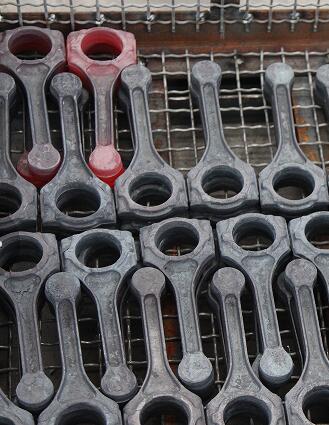

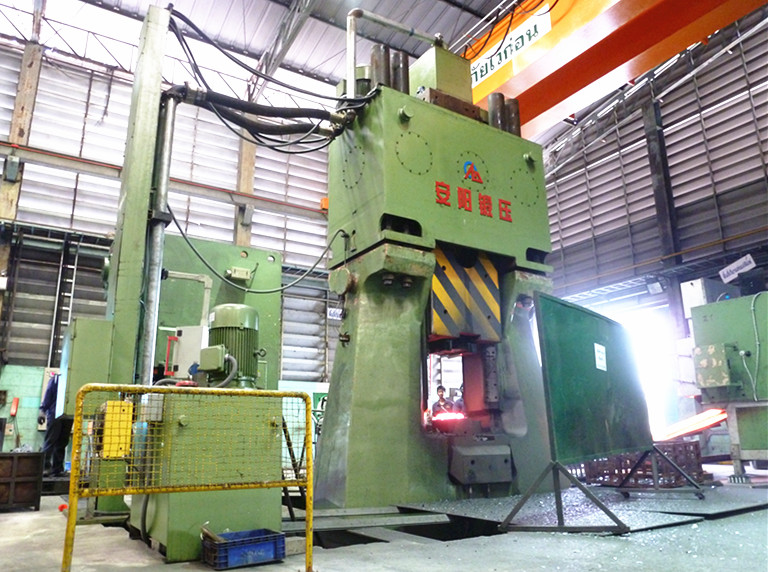

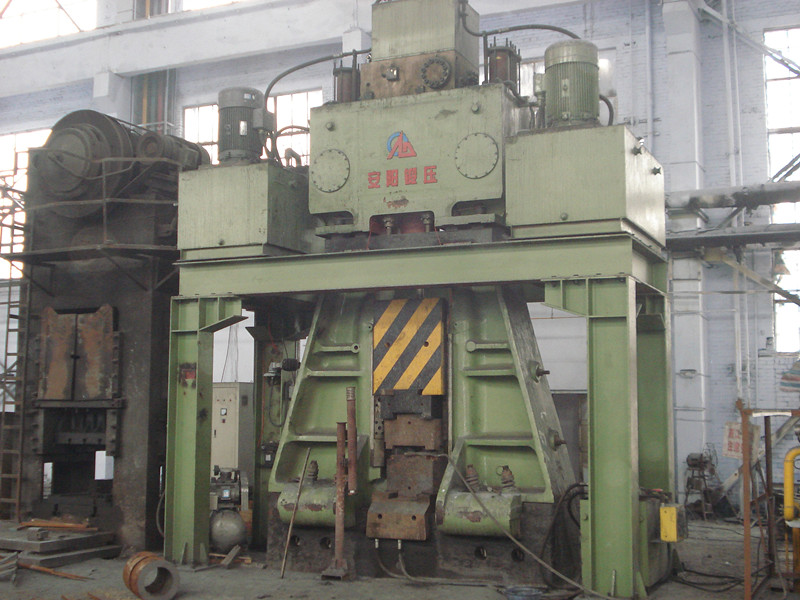

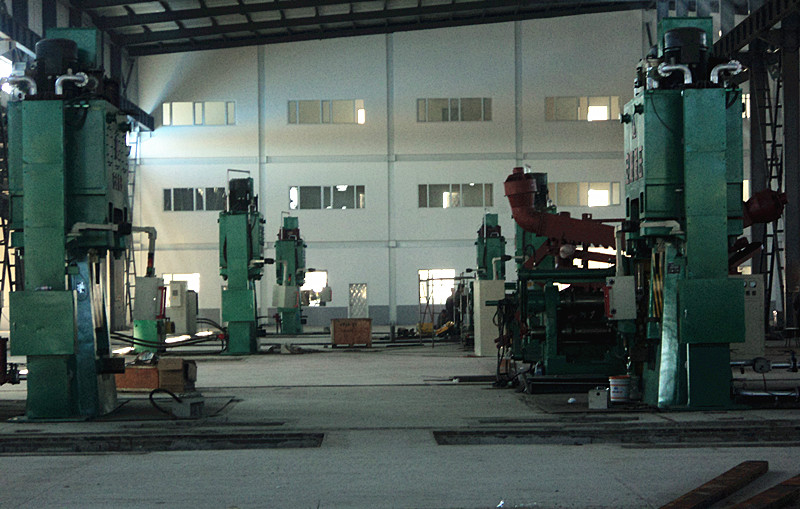

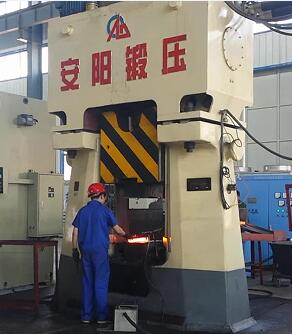

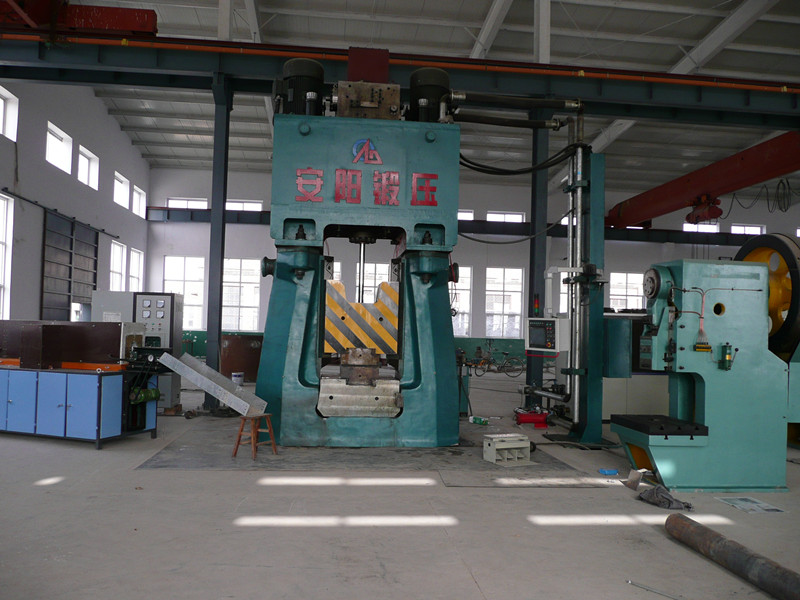

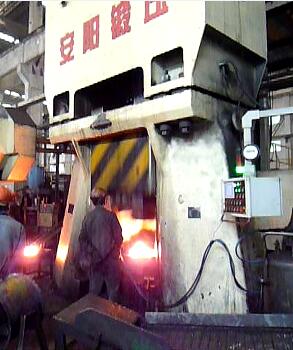

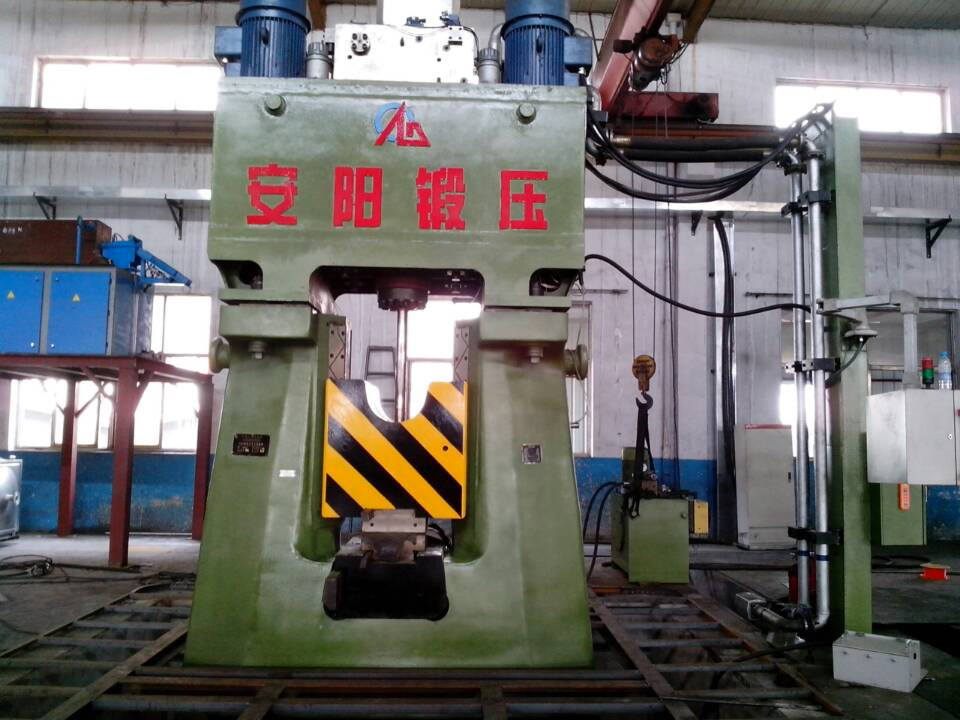

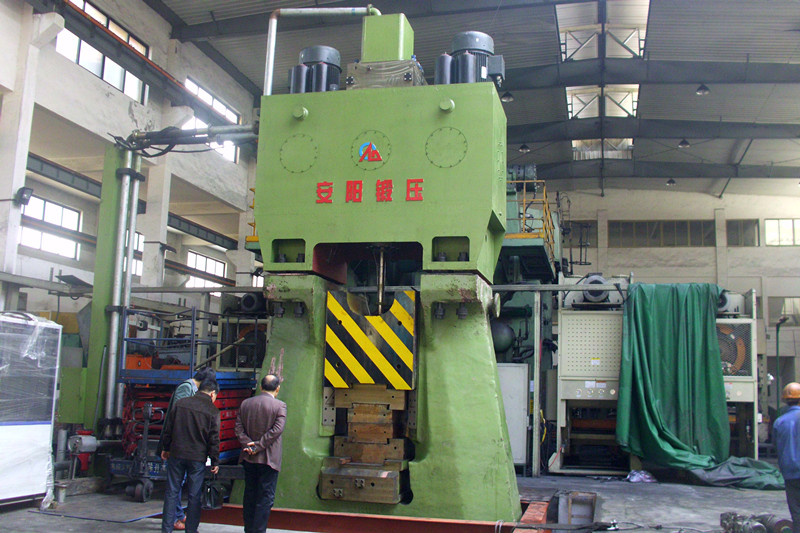

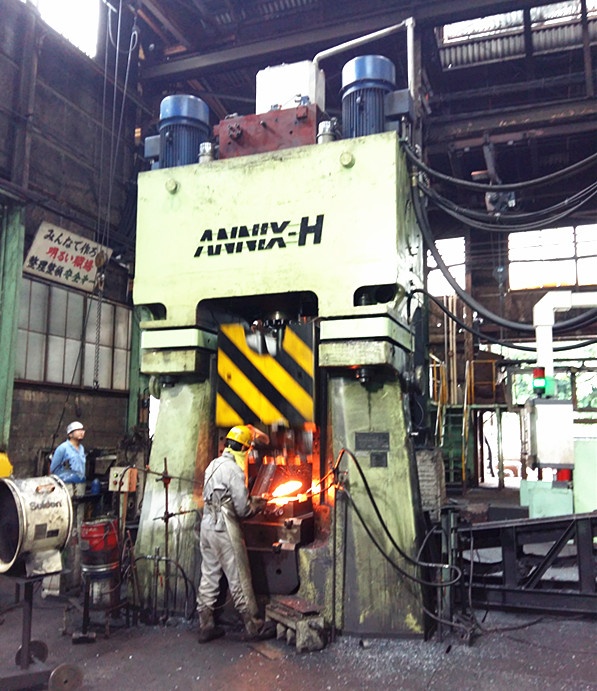

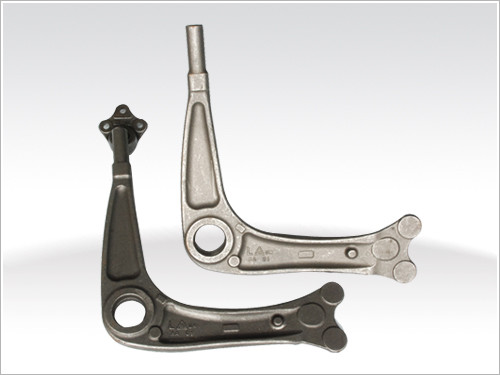

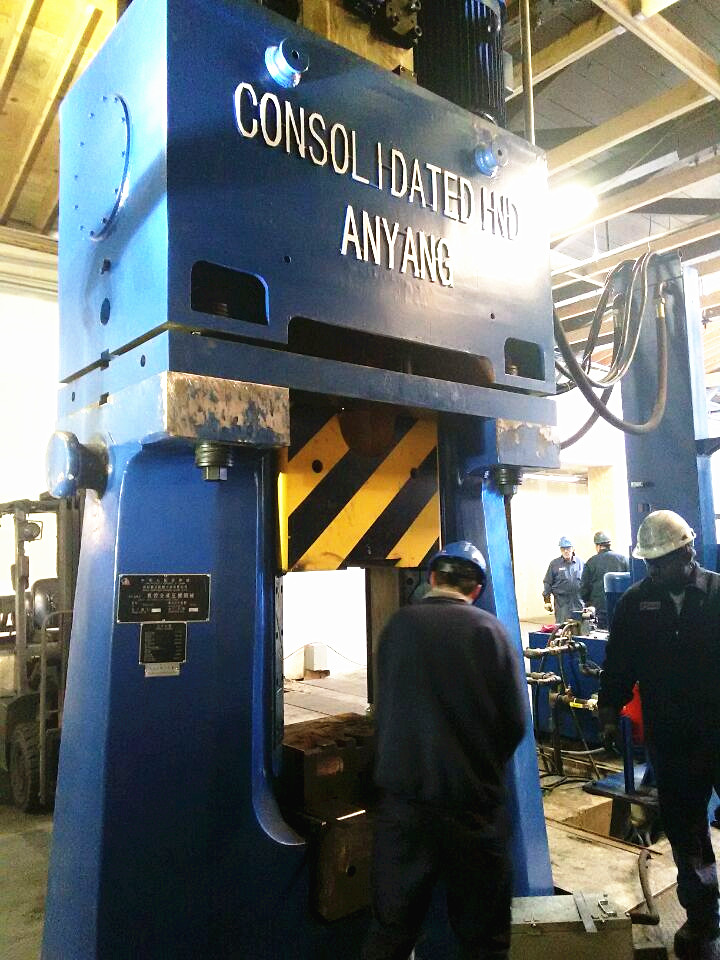

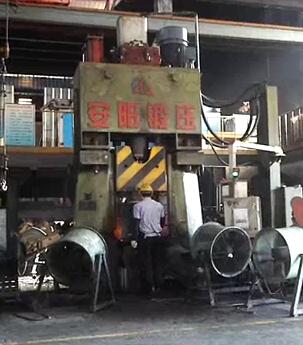

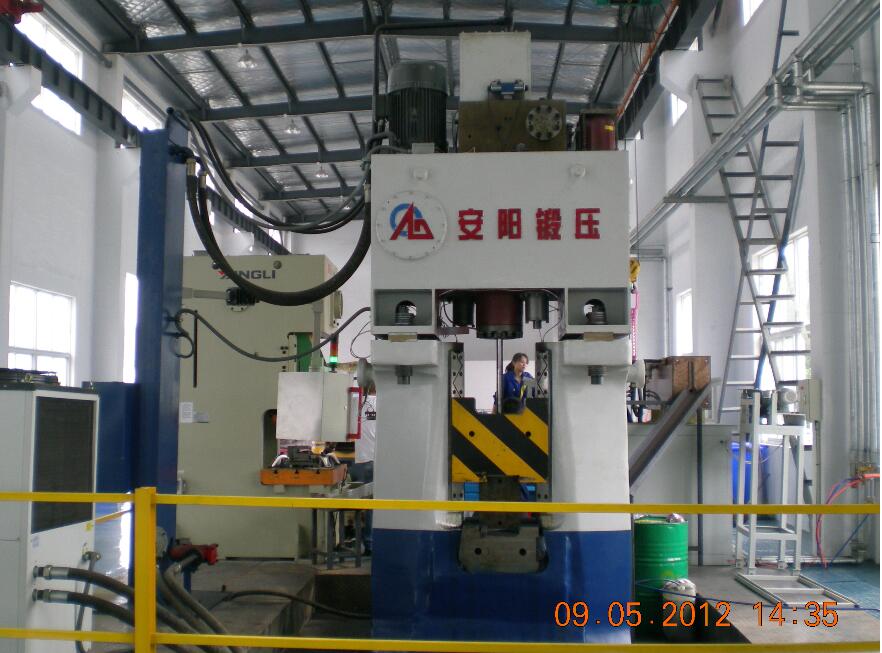

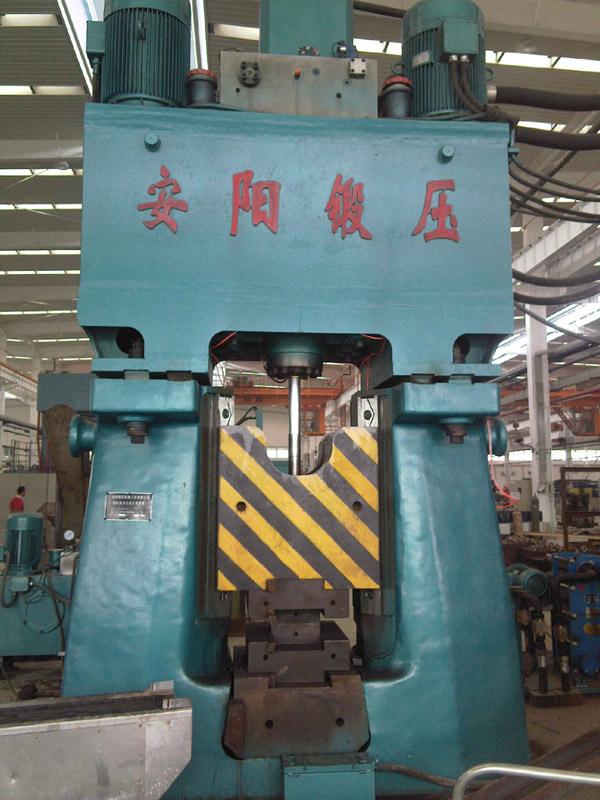

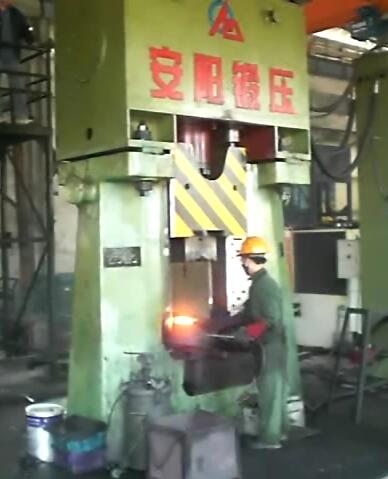

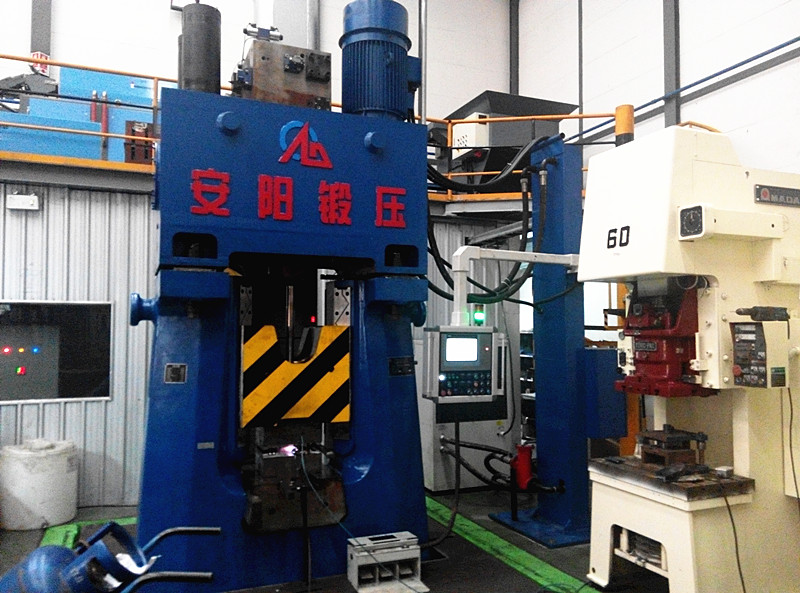

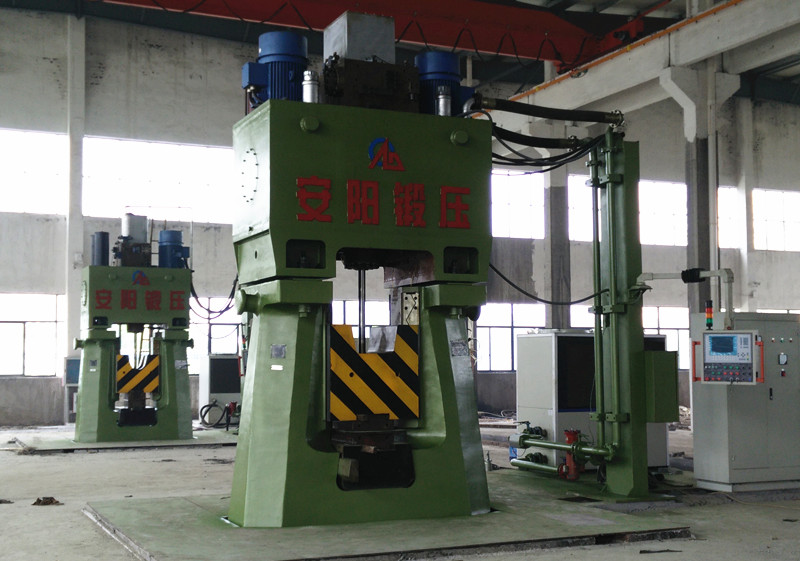

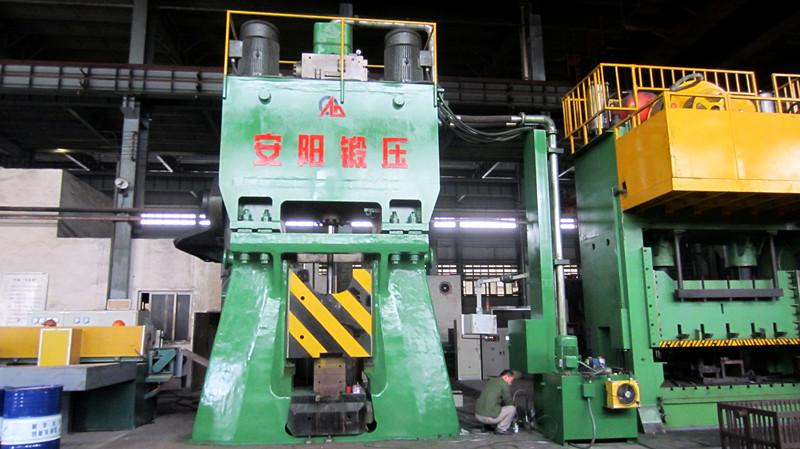

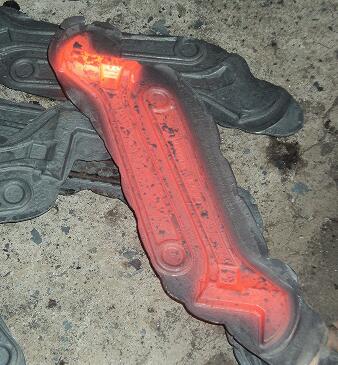

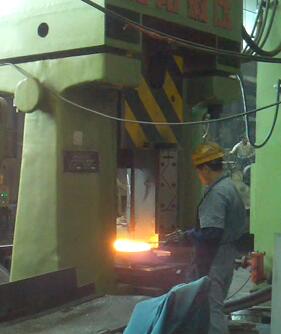

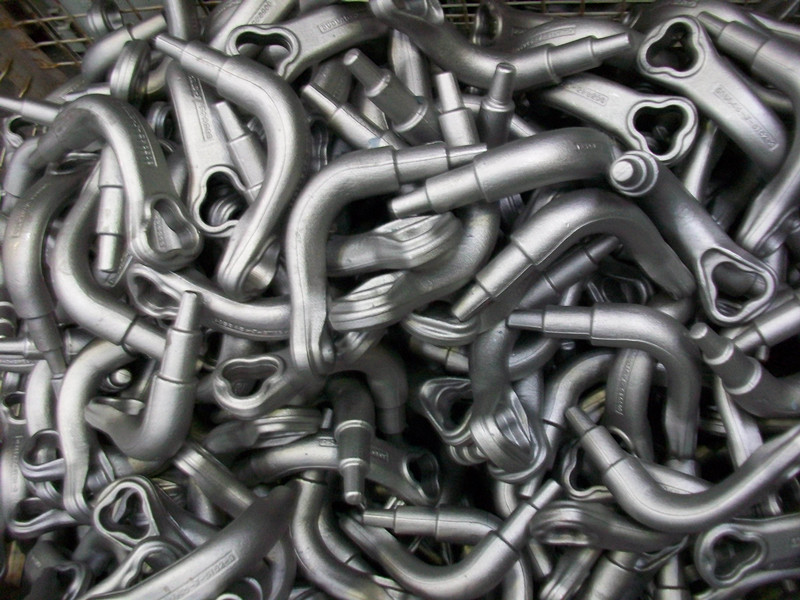

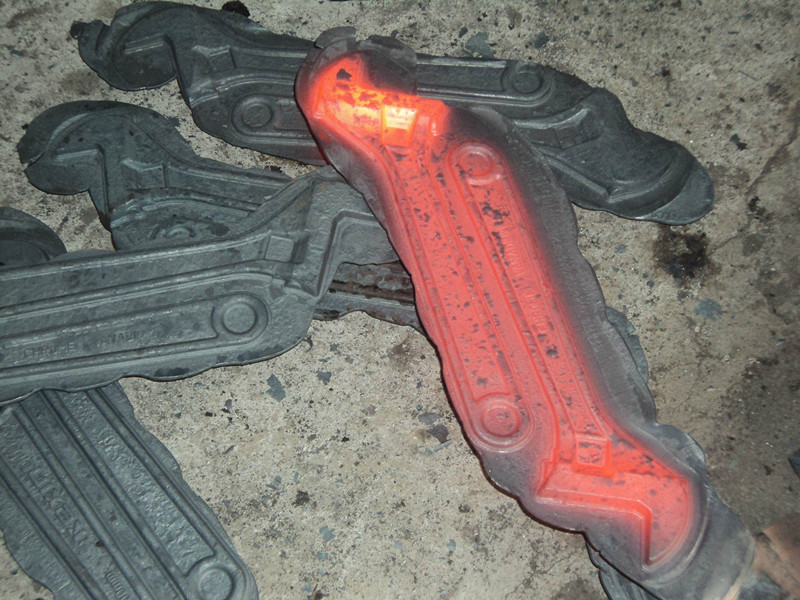

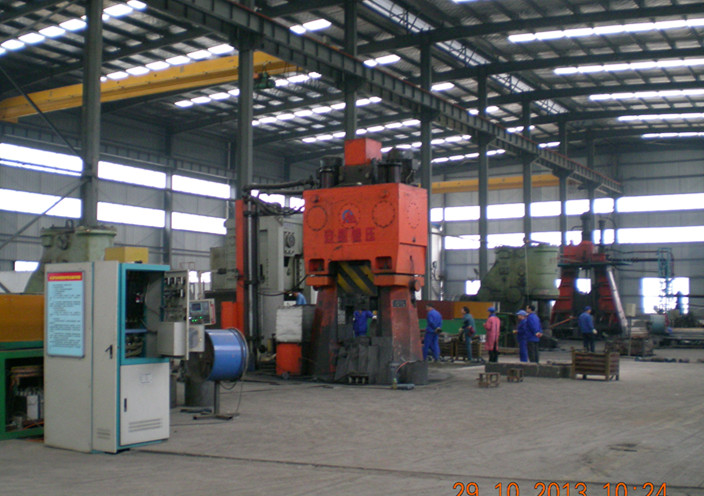

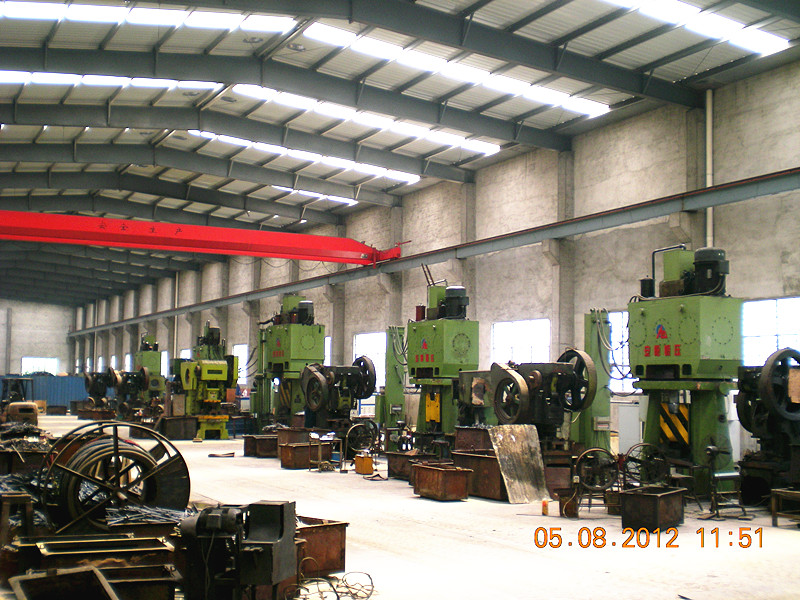

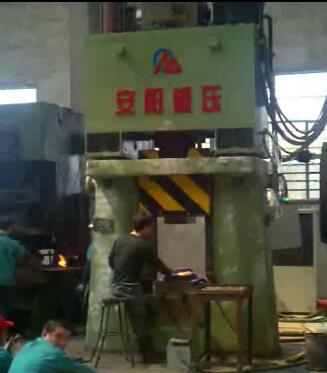

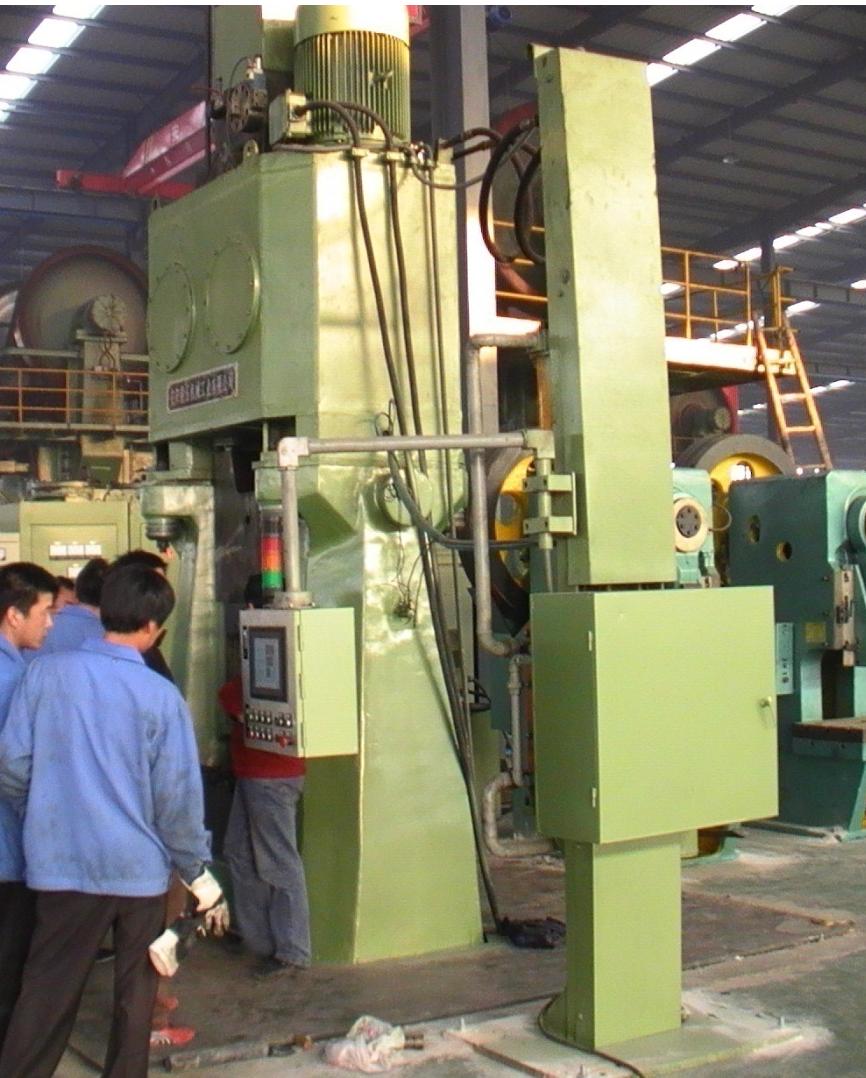

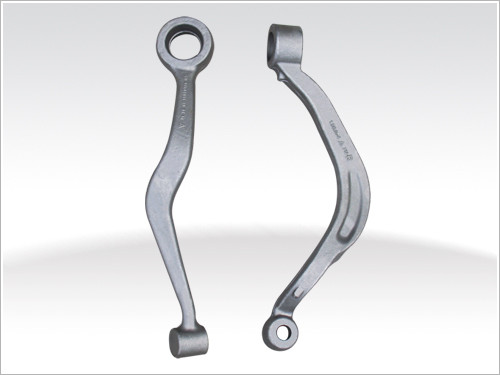

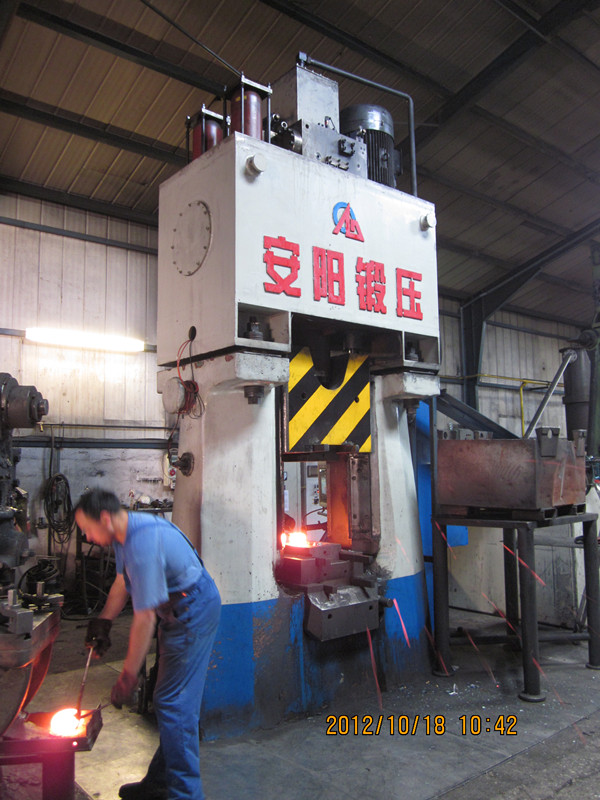

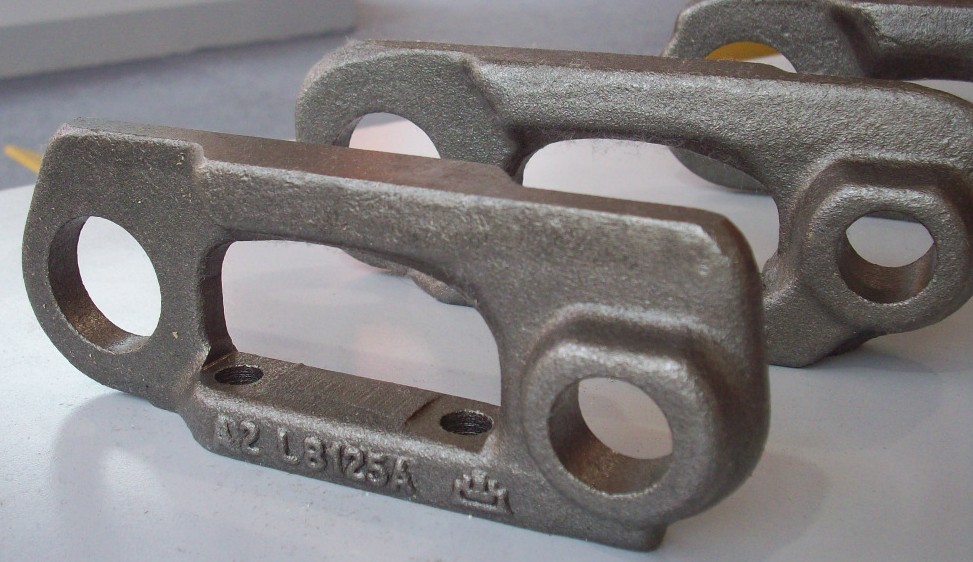

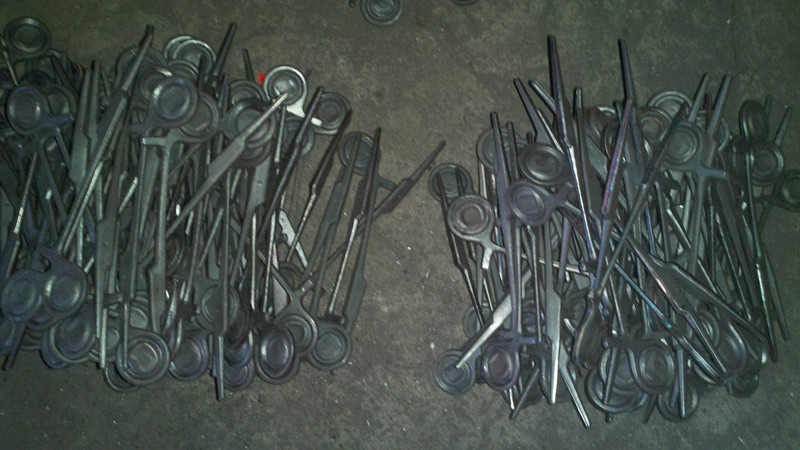

CNC Fully Hydraulic Die Forging Hammer is program-controlled hydraulic die forging hammer, they are widely applied in automobile forgings, motorcycle forgings, hardware forgings, hand tools blank forgings, stainless steel tableware, and aeronautic forgings etc, especially for the precision forging field. CNC hydraulic die forging hammers are hydraulic double-acting programmable forging hammer with HO-U structures, they are complied with low carbon production, low hammer running cost production and high efficiency production etc high requirements in modern forging industry.
Features:
1. Programmable hitting
2. Precise energy control
3. High forging accuracy
4. High blow frequencies
5. Simple and safe operating
6. Low forging vibration
7. Optimum die life and hammer rod life
8. Realize automatic production line
CNC Forging Hammer Technical Parameter
| CNC Hammer Model | C92K-12.5 | C92K-16 | C92K-20 | C92K-25 | C92K-31.5 | C92K-40 | C92K-50 | C92K-63 |
| Hit energy(KJ) | 12.5 | 16 | 20 | 25 | 31.5 | 40 | 50 | 63 |
| Weight of falling parts(kg) | 860 | 1080 | 1350 | 1700 | 2150 | 2700 | 3400 | 4300 |
| Max hit number(min-1) | 129 | 122 | 123 | 113 | 100 | 98 | 98 | 98 |
| Hit stroke(mm) | 420-620 | 435-635 | 455-665 | 470-685 | 490-755 | 510-790 | 530-775 | 550-805 |
| Working oil pressure(Mpa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Main motor power(KW) | 37 | 37 | 55 | 55 | 55 | 75 | 2*55 | 2*55 |
| Machine weight(kg) | 19000 | 27000 | 30000 | 39300 | 48000 | 58000 | 78500 | 95000 |
| | ||||||||
| CNC Hammer Model | C92K-80 | C92K-100 | C92K-125 | C92K-160 | C92K-200 | C92K-250 | C92K-320 | C92K-400 |
| Hit energy(KJ) | 80 | 100 | 125 | 160 | 200 | 250 | 320 | 400 |
| Weight of falling parts(kg) | 5400 | 6800 | 8500 | 10800 | 13700 | 17100 | 21000 | 27000 |
| Max hit number(min-1) | 92 | 81 | 70 | 70 | 60 | 50 | 45 | 40 |
| Hit stroke(mm) | 570-835 | 595-885 | 615-920 | 640-960 | 740-1060 | 770-1100 | 740-1150 | 860-1200 |
| Working oil pressure(Mpa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Main motor power(KW) | 2*90 | 2*90 | 2*132 | 3*90 | 4*90 | 4*90 | 4*110 | 6*110 |
| Machine weight(kg) | 120000 | 148000 | 195000 | 235000 | 275000 | 330000 | 410000 | 465000 |
