Introduction

Anyang Forging Press have over 30 years history to produce hydraulic open die foring hammers. The China National standard of hydraulic foring hammer is drafted by us. we not also produce new hydrauli forging hammer, but also can convert the old steam/air forging hammer to be hydraulic forging hammer.
According to the driving medium our hydraulic forging hammer can be divide Hydraulic-Gas foring hammer(C66) and fully Hydraulic forging hammer(C66Y).
As per structure, Hydraulic open die forging hammer includes bridge type open die forging hammer, single-frame hydraulic open die hammer,arch open die hydraulic forging hammer.

[C66 series hydraulic-gas open die forging hammer introduction]

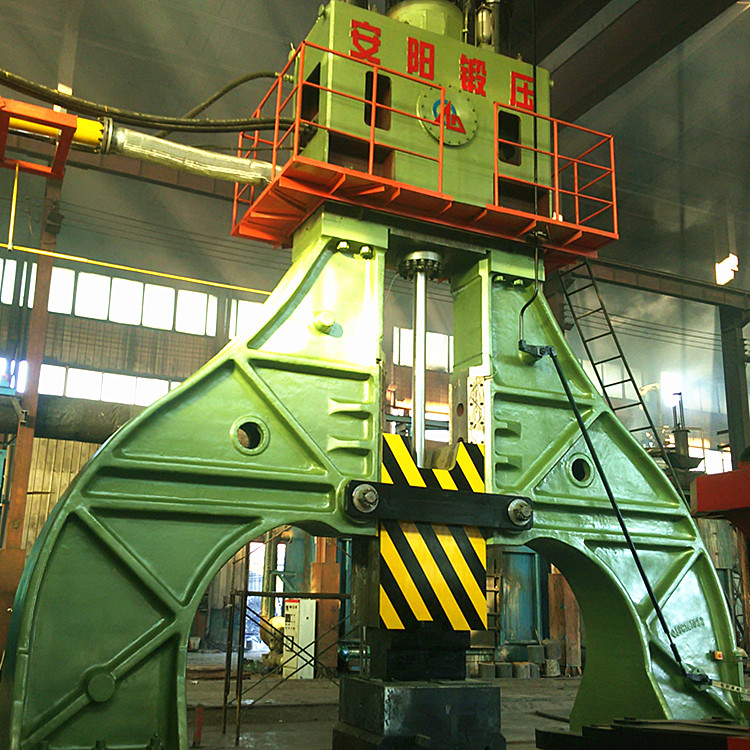

C66 series electro hydraulic forging hammer is a open die forging hammer that adopt hydraulic pressure-nitrogen gas driven. It have bridge type and arch type. Upper chamber of hammer rod piston is nitrogen gas, lower chamber is hydraulic oil. It can realize hitting by controlling the oil of lower chamber. It is used all kinds of open die forging.

[Technical Feature]

1. Energy saving and environmental protection.
2. High frequency hitting, improve production efficiency.
3. Auto lubricating of guide rails.
4. PLC control, after switch on, immediately starting to do forging .
5. Safety and easy operating by hand lever or pedal.
6. High efficiency cooling system for hydraulic oil, which guarantee 8*24 production.

open die hammer

Besides the hydraulic-gas , we design new open die forging hammer - fully hydraulic driving,

This kind open die hammer will no need gas, all the driving medium is hydraulic oil, operating will be more smart and hitting energy is powerful, also stop the oil - gas mixing, reduce the maintance cost.

Item	Unit	C66-35 （1T)	C66-70 （2T)	C66-120 （3T)	C66-140 （4T)	C66-175 （5T)	C66-210 （6T)	C66-245 （7T)	C66-280 （8T)	C66-350 (10T)	C66-420 （12T)	C66-490 (14T)
Hit energy	KJ	35	70	120	140	175	210	245	280	350	420	490
Weight of tup	Kg	1300	2600	4200	4800	6000	6800	7600	8500	10500	12500	14500
Max.stroke	mm	100	1260	1450	1500	1730	1850	2000	2200	2400	2500	2600
Hit frequency	min-1	65-75	65-75	50-55	50-60	45-50	45-50	46-50	45-50	44-46	42-45	42-45
Motor power	kw	45×2	55×3	55×4	55×5	75×5	75×6	75×7	75×7	75×10	75×12	75×16
Guide distance	mm	460	550	630	630	760	890	890	980	980	1050	1050
Working Spaces	mm	1800× 1250	2300× 1390	2700× 1470	2700× 1470	3700× 2000	3700× 2150	3820× 2200	4700× 2250	4700× 2350	5000× 2500	5000× 2500
Lower die suface height	mm	750	750	760	760	880	880	900	900	900	900	900
Outslde size （L×W×H）	mm	3600 × 1500 × 6000	4500 × 1700 × 6500	5100 × 2300 × 7500	5100 × 2300 × 7800	6300 × 2700 × 8500	6300 × 2700 × 8800	7000 × 2800 × 9100	7500 × 2800 × 9500	7500 × 3000 × 10000	7600 × 3000 × 12000	7600 × 3000 × 13000
