전기액압 자유단조 해머

Location：HOME >> 전기액압 자유단조 해머

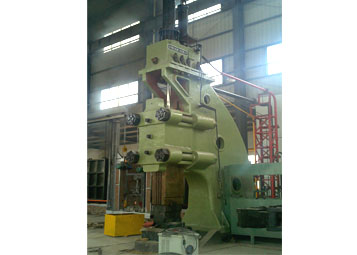

전기액압 자유단조 해머

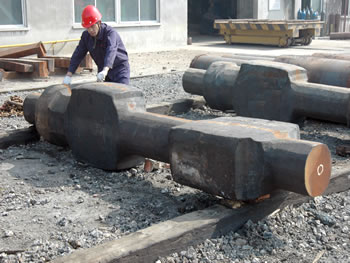

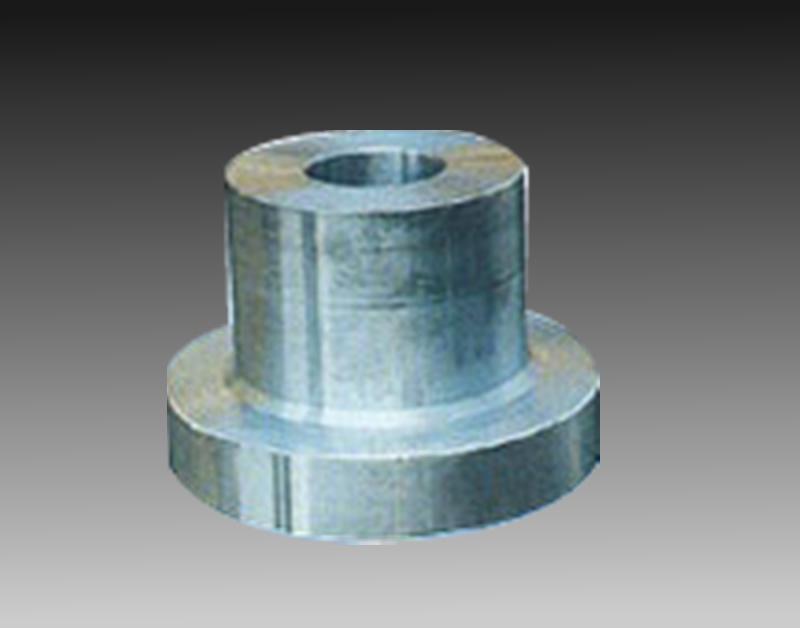

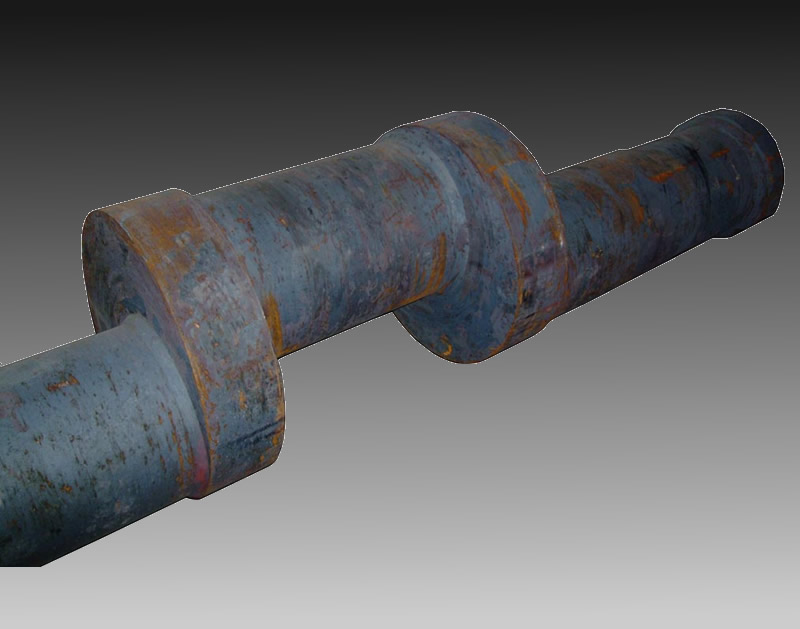

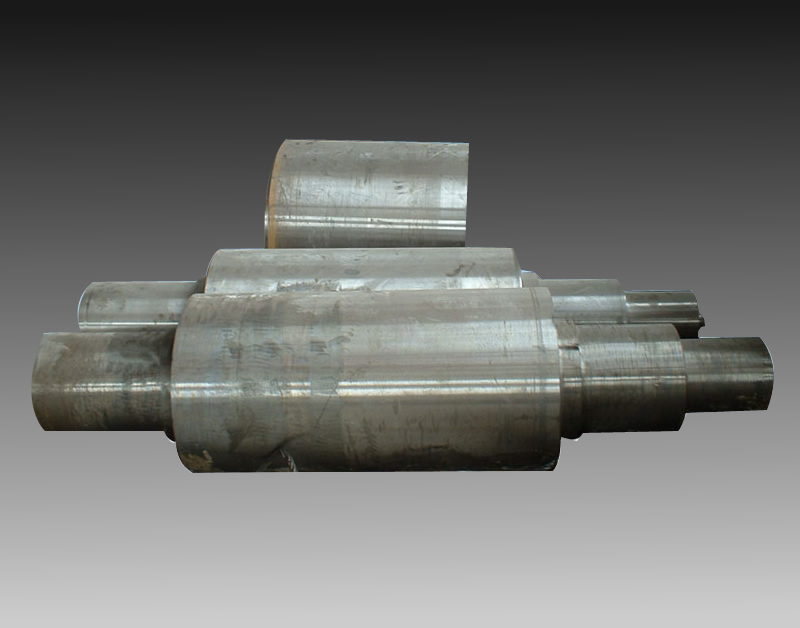

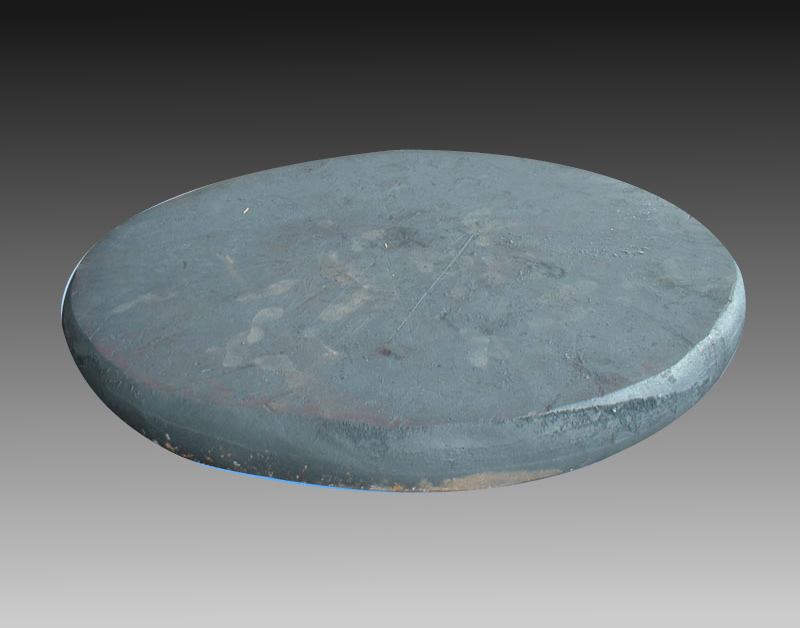

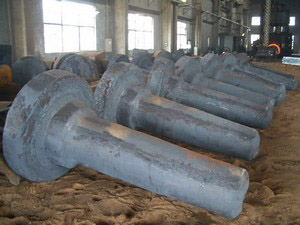

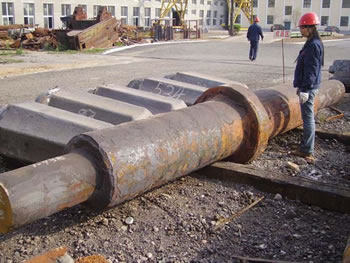

전기액압 자유단조 해머는 다양한 자유단조품, 축 단조품, 고리 단조품, 기어단조품, 플랜지 등 단조에 사용된다.

특징:

1. 에너지 절약 및 친환경.
2. 높은 생산 효율 과 생산 속도.
3. 'X'형 레일은 정밀도를 보증함.
4. 레일 자동윤활.
5. PLC 제어.
6. 높은 안전도.
7. 액압기름 고효 냉각.

파라미터

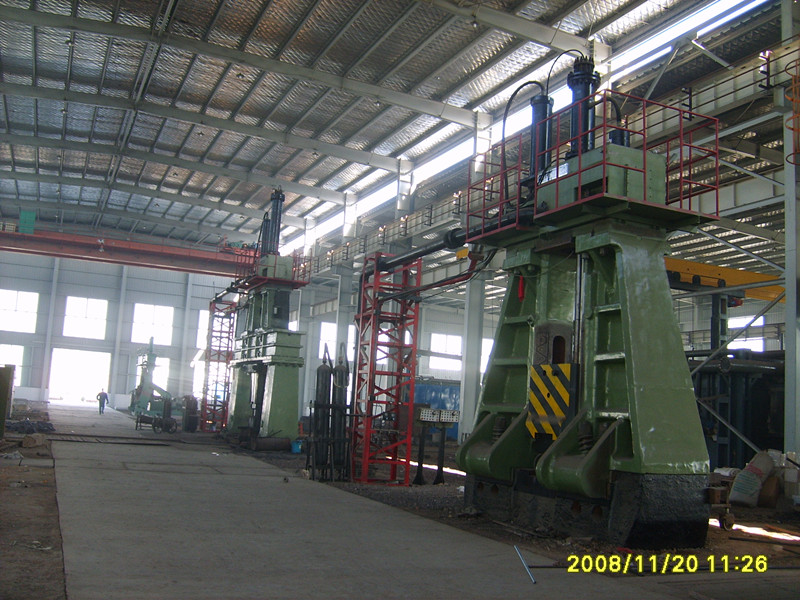

제조공장
동영상

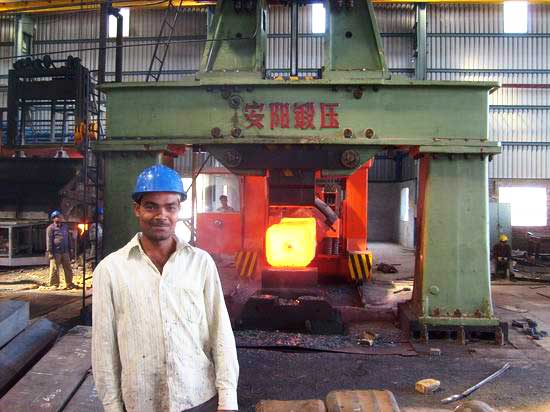

고객
응용영역
다운로드

파라미터

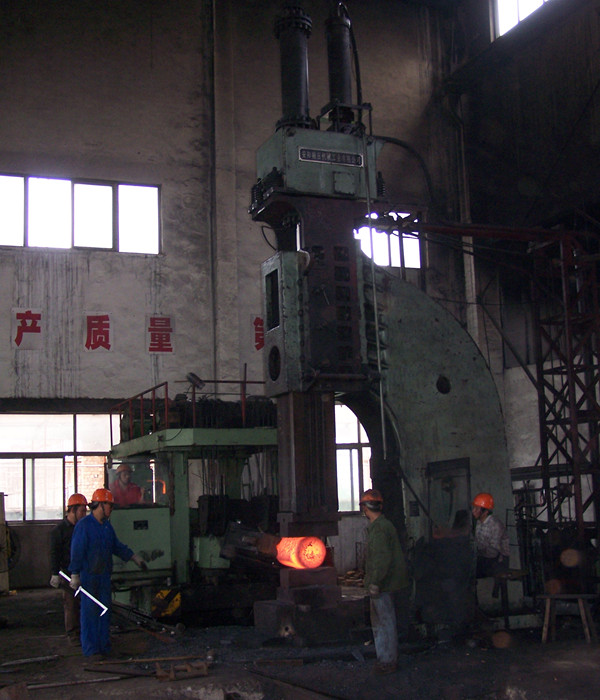

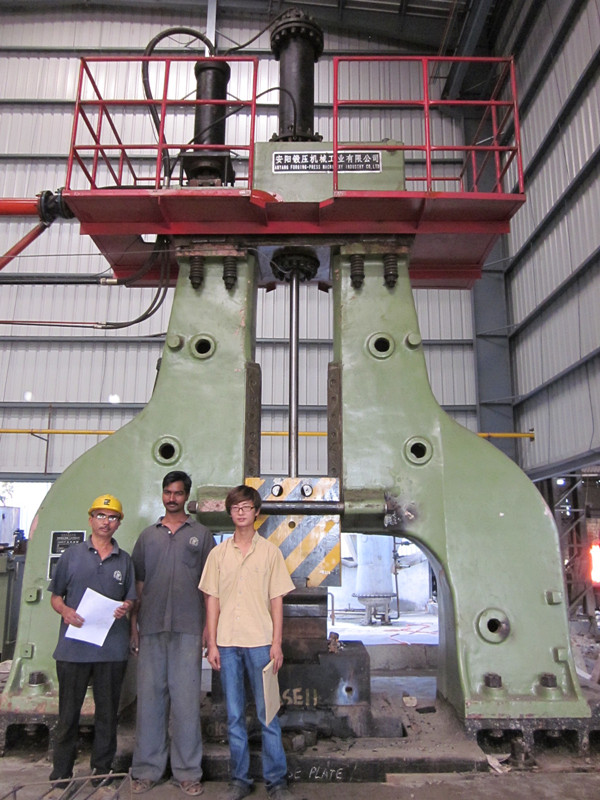

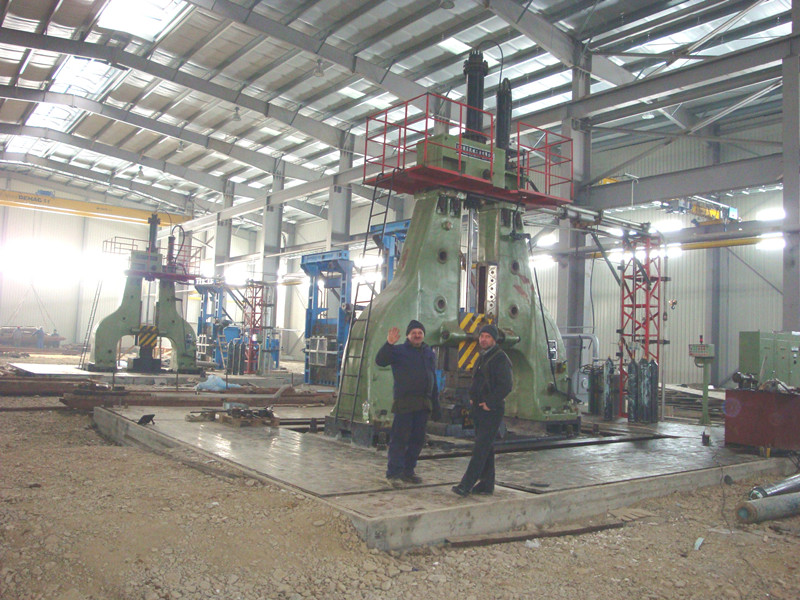

더블 암식 궁형 자유단조해머
Item	Unit	C66-35 (1T)	C66-35 (1T)	C66-70 (2T)	C66-120 (3T)	C66-140 (4T)	C66-175 (5T)
Item	Unit	C66-35 (1T)	C66-35 (1T)	C66-70 (2T)	C66-120 (3T)	C66-140 (4T)	C66-175 (5T)
Hit energy	KJ	35	35	70	120	140	175
Rated weight of falling parts	kg	1300	1300	2600	4200	4800	6000
Maximumstroke	mm	1000	1000	1260	1450	1500	1730
Hitfrequency	min-1	50-58	65-75	65-75	50-55	50-60	45-50
Main oil pump	type	A2F160R2P3	A2F125R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P3
Main motor type		Y250M-4-B35	Y250M-4-B35	Y250M-4-B35	Y250m-4-B35	Y250m-4-B35	Y280s-4-B35
Main motorpower	kW	55	45	55	55	55	75
Motor/pump number	set	1	2	3	4	5	5
Electric-cooler type	type	YLD400	YLD400	YLD800	YLD1200	YLD800x2	YLD800x2
Electric-cooler capacity	Kcal/h	40000	40000	80000	120000	80000x2	80000x2
Electric-cooler power	kW	19	19	38	60	38x2	38x2
Guide space	mm	460	460	550	630	630	760
Working area (WxH)	mm	1800x1250	1800x1250	2300x1380	2700x1470	2700x1470	3700x2000
Lower die surface height above ground	mm	750	750	750	760	760	880
Machine outside size (LxWxH)	mm	3600x 1500x 6000	3600x 1500x 6000	4500x 1700x 6500	5100x 2300x 7500	5100x 2300x 7800	6300x 2700x 8500
Oil tank outside size (LxWxH)	mm	2000x 1500x 1300	2000x 1500x 1300	2700x 2000x 1600	3600x 2000x 1600	4500x 2000x 1600	4500x 2000x 1600

Item	Unit	C66-210 (6T)	C66-245 (7T)	C66-280 (8T)	C66-350	C66-420	C66-490
Item	Unit	C66-210 (6T)	C66-245 (7T)	C66-280 (8T)	(10T)	(12T)	(14T)
Hit energy	KJ	210	245	280	350	420	490
Rated weight of falling parts	kg	7000	7600	8500	10500	12500	14500
Maximumstroke	mm	1850	2000	2200	2400	2500	2600
Hitfrequency	min-1	45-50	46-50	45-50	44-46	42-45	42-45
Main oil pump	type	A2F160R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P2	A2F160R2P2	A2F160R2P2
Main motor type		Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35
Main motorpower	kW	75	75	75	75	75	75
Motor/pump number	set	6	7	7	10	12	16
Electric-cooler type	type	YLD1000x2	YLD1000x2	YLD1000x2	YLD1200x2	YLD1200x2	YLD1200x2
Electric-cooler capacity	Kcal/h	100000x2	100000x2	100000x2	120000x2	120000x2	120000x2
Electric-cooler power	kW	54x2	54x2	54x2	60x2	60x2	60x2
Guide space	mm	890	890	980	980	1050	1050
Working area (WxH)	mm	3700x2150	4200x2200	4700x2250	4800x2350	5000x2500	5000x2500
Lower die surface height above ground	mm	880	900	900	900	900	900
Machine outside size (LxWxH)	mm	6300x 2700x 8800	7000x 2700x 9100	7500x 2800x 9500	7500x 2800x 10000	7600x 3000x 12000	7600x 3000x 13000
Oil tank outside size (LxWxH)	mm	5400x 2000x 1600	6300x 2000x 1600	6300x 2000x 1600	9000x 2000x 1600	10800x 2000x 1600	2x7200x 2000x 1600

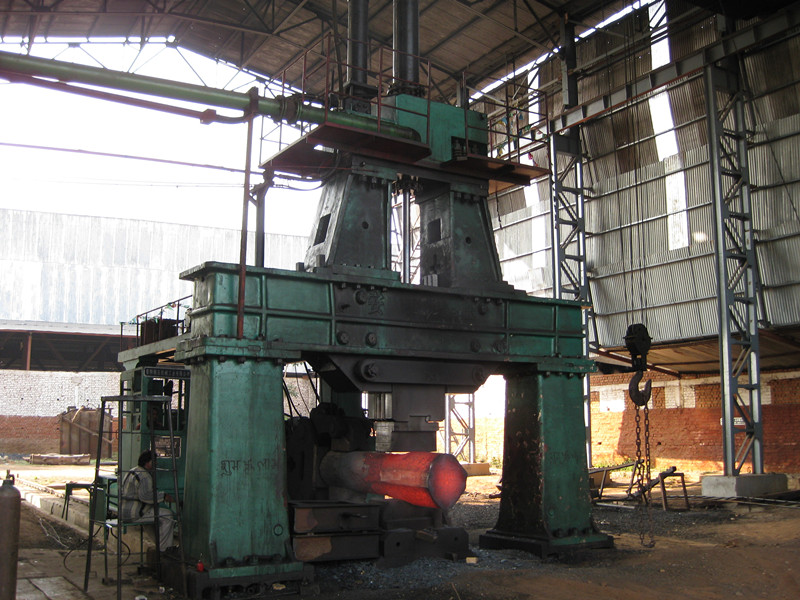

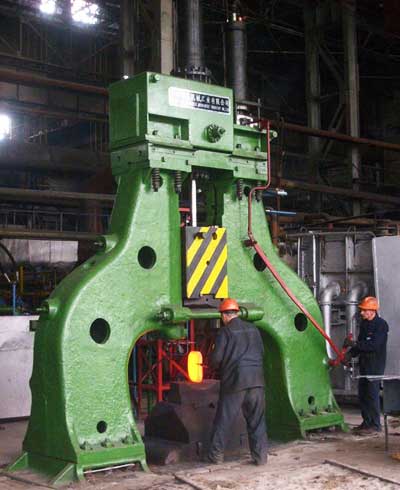

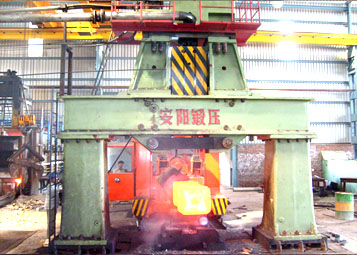

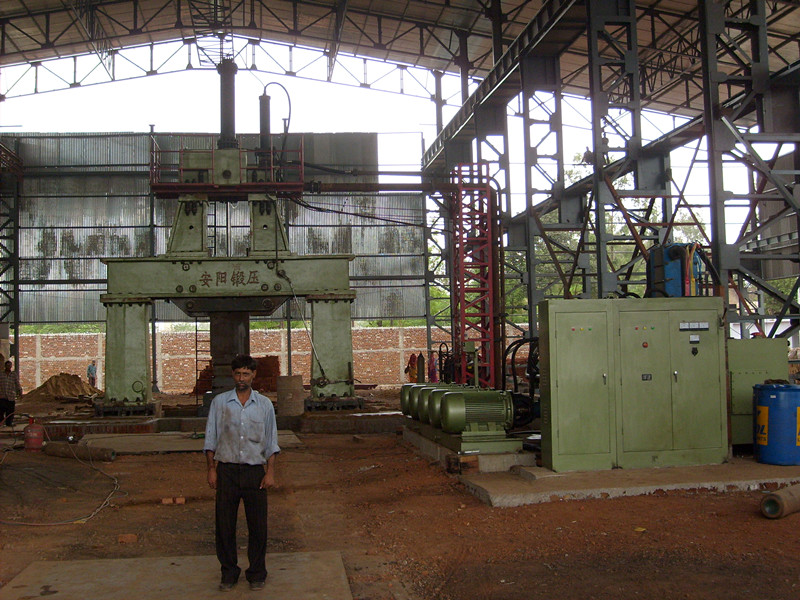

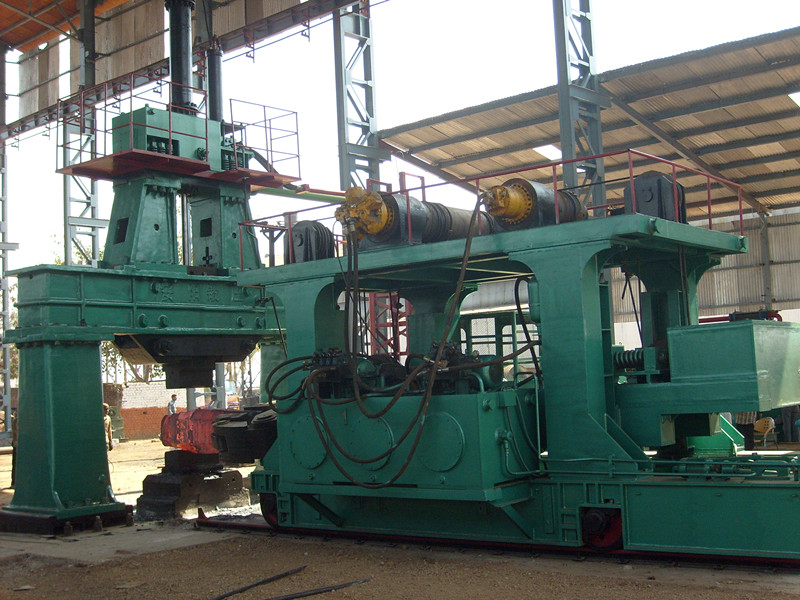

더블 암식 다리형 자유단조해머
Item	Unit	C66-175 (5T)	C66-210 (6T)	C66-245 (7T)	C66-280 (8T)	C66-350 (10T)	C66-420 (12T)	C66-490 (14T)
Hit energy	KJ	175	210	245	280	350	420	490
Rated weight of falling parts	kg	6000	6800	7600	8500	10500	12500	14500
Maximum stroke	mm	1730	1850	2000	2200	2400	2500	2500
Hit frequency	min-1	45-50	45-50	46-50	45-50	44-46	42-45	42-45
main oil pump	type	A2F160R2 P3	A2F160R2P3	A2F160R2P3	A2F160R2P3	A2F160R5P2	A2F160R5P2	A2F160R5P2
Main motor type		Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35	Y280s-4-B35
Main motor power	kW	75	75	75	75	75	75	75
Motor/pump number	set	5	6	7	7	10	12	16
Electric-cooler type	type	YLD800x2	YLD1000x2	YLD1000x2	YLD1000x2	YLD1200x2	YLD1200x2	YLD1200x2
Electric-cooler capacity	Kcal/h	80000x2	100000x2	100000x2	100000x2	120000x2	120000x2	120000x2
Electric-cooler power	kW	38x2	54x2	54x2	54x2	60x2	60x2	60x2
Guide space	mm	830	930	930	1030	1030	1050	1050
Working area (WxH)	mm	3700x2000	3700x2150	4200x2300	4200x2460	4400x2650	4500x2800	4500x2900
Lower die surface height above ground	mm	880	880	900	900	900	900	900
Machine outside size (LxWxH)	mm	6300 x2700 x8500	6300 x2700 x8800	7000 x2700 x9100	7500 x2800 x9500	7500 x2800 x10000	7600 x3000 x12000	7600 x3000 x13000
Oil tank Outside size (LxWxH)	mm	4500 x2000 x1600	5400 x2000 x1600	6300 x2000 x1600	6300 x2000 x1600	9000 x2000 x1600	10800 x2000 x1600	2x7200 x2000 x1600

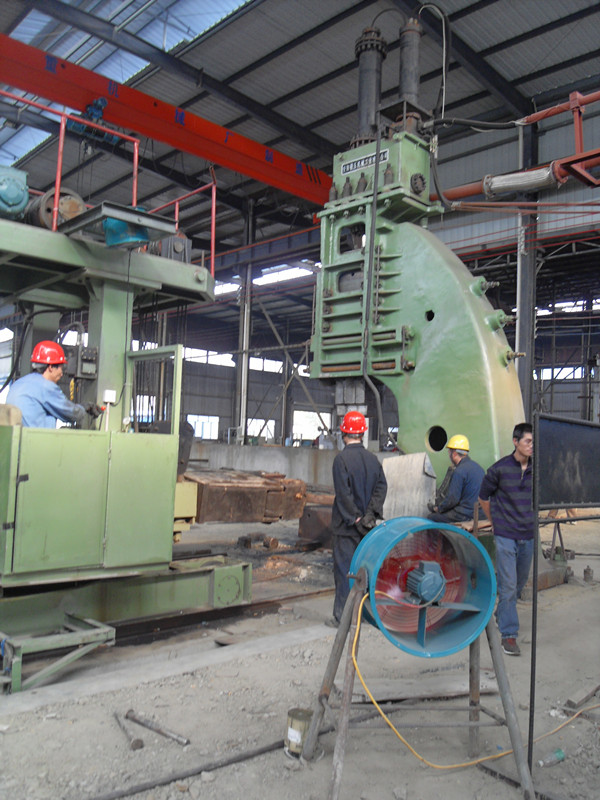

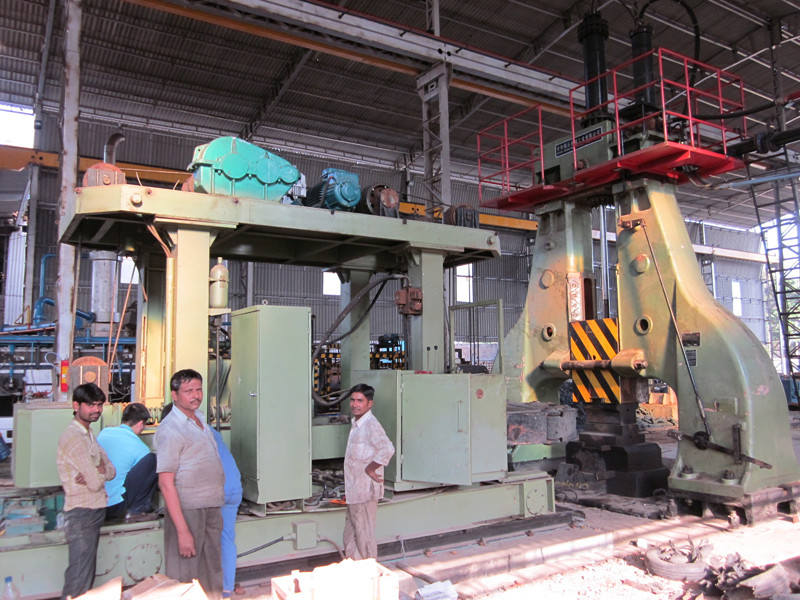

싱글 암식 자유단조해머
Model	Unit	C61-30 (1T)	C61-70 (2T)	C61-105 (3T	C61-140 (4T)	C61-175 (5T)
Hit energy	Kj	30	70	105	140	175
Rated weight of falling part	kg	1300	2600	4000	4800	5500
Max stroke	mm	1000	1260	1450	1700	1800
Hit frequency	min-1	50-58	65-75	50-58	50-60	48-55
Main pump type	mm	A2F160R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P3
Main motor type	type	Y250M-4-B35	Y250M-4-B35	Y250M-4-B35	Y250M-4-B35	Y280S-4-B35
Main motor power	kw	55	55×3	55×4	55×5	75×5
Motor/pump number	set	1	3	4	5	5
Electric-cooler type	type	YLD400	YLD800	YLD1200	YLD800×2	YLD800×2
Electric-cooler capacity	Kcal/h	40000	80000	120000	80000×2	80000×2
Electric-cooler power	kw	19	38	60	38×2	38×2
Distance between guides	mm	480	560	600	600	700
Throat depth× throat height	mm	730x1750	840x2150	960x2340	960x2500	1250x2200
Lower die surface height above ground	mm	750	750	750	750	760
Outside size	mm	3800x1680x7000	4260x1800x7200	4700x1900x7600	5440x1900x8000	5700x2300x8500
Oil tank outside size	mm	2000x1500x1300	2700x2000x1600	3600x2000x1600	4500x2000x1600	4500x2000x1600

Model	Unit	C61-210 (6T)	C61-280 (8T)	C61-350 (10T)	C61-420 (12T)
Hit energy	KJj	210	105	140	175
Rated weight of falling part	kg	6300	4000	4800	5500
Max stroke	mm	1900	1450	1700	1800
Hit frequency	min-1	50-55	50-58	50-60	48-55
Main pump type	mm	A2F160R2P3	A2F160R2P3	A2F160R2P3	A2F160R2P3
Main motor type	type	Y280S-4-B35	Y280S-4-B35	Y280S-4-B35	Y280S-4-B35
Main motor power	kw	75	75	75	75
Motor/pump number	set	6	7	10	12
Electric-cooler type	type	YLD1000x2	YLD1000x2	YLD1200×2	YLD1200×2
Electric-cooler capacity	Kcal/h	100000x2	100000x2	120000×2	120000×2
Electric-cooler power	kw	54x2	54x2	60×2	60×2
Distance between guides	mm	800	1000	1100	1100
Throat depth× throat height	mm	1300x2300	1400x2400	1450x2500	1450x2500
Lower die surface height above ground	mm	760	780	850	900
Outside size	mm	5850x2400x8700	6400x2600x9200	6400x2600x9300	6400x2600x9400
Oil tank outside size	mm	5400x2000x1600	6300x2000x1600	9000x2000x1600	10800x2000x1600
