대형 메니플레트

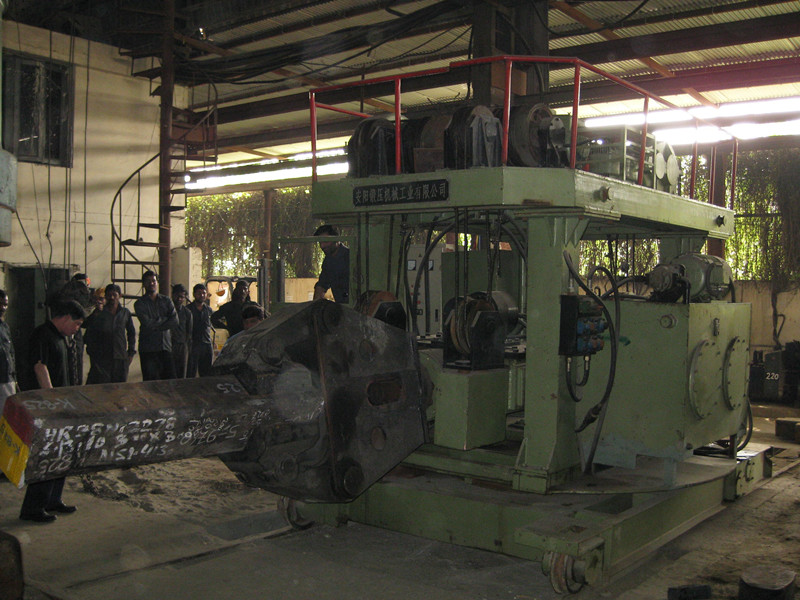

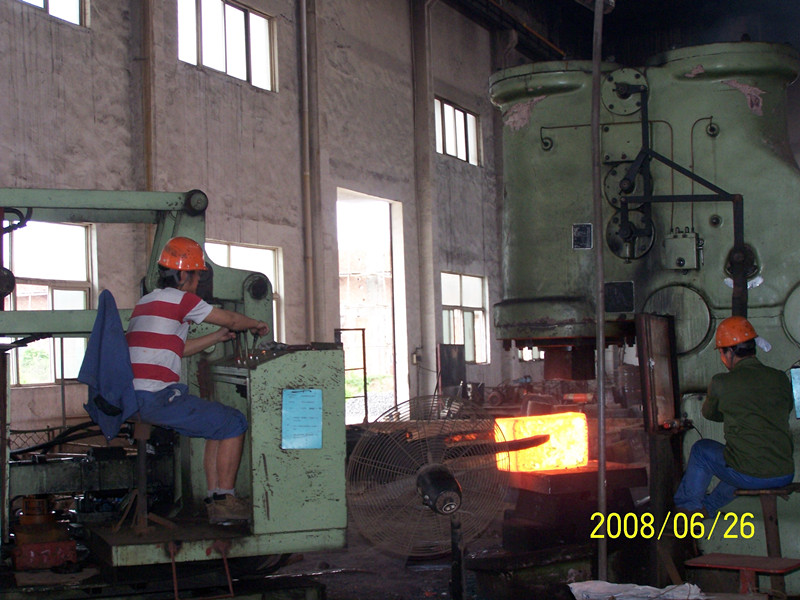

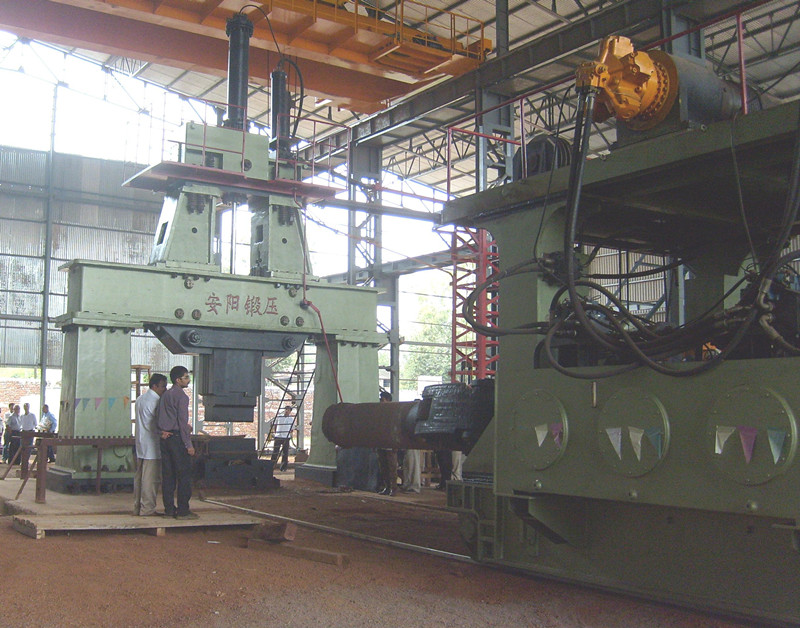

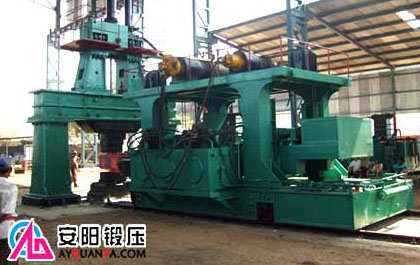

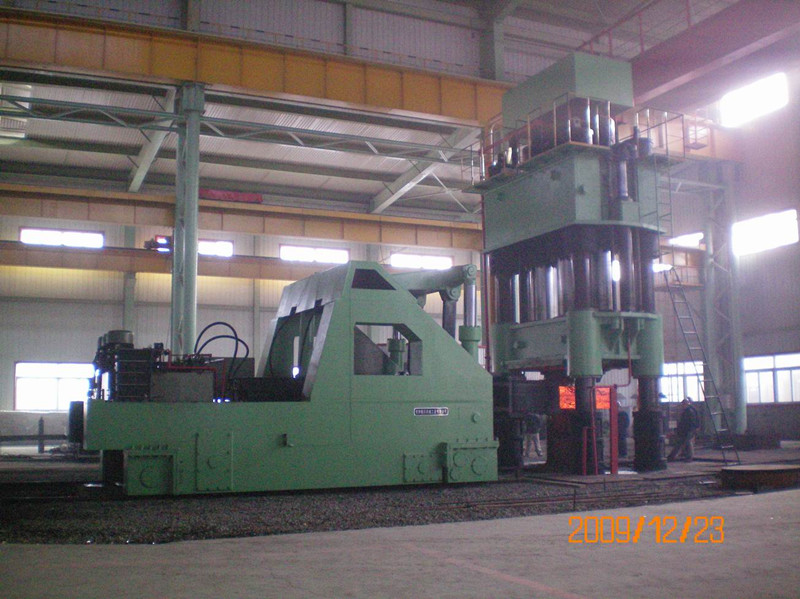

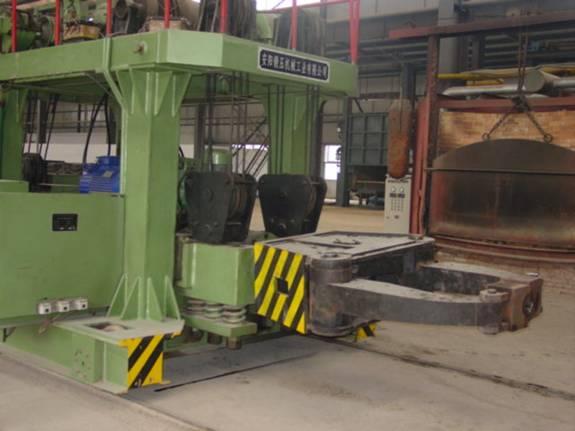

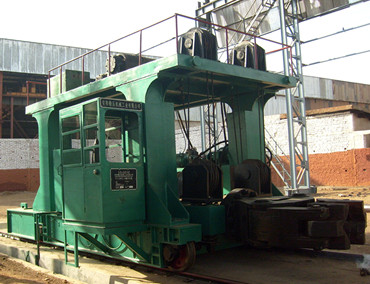

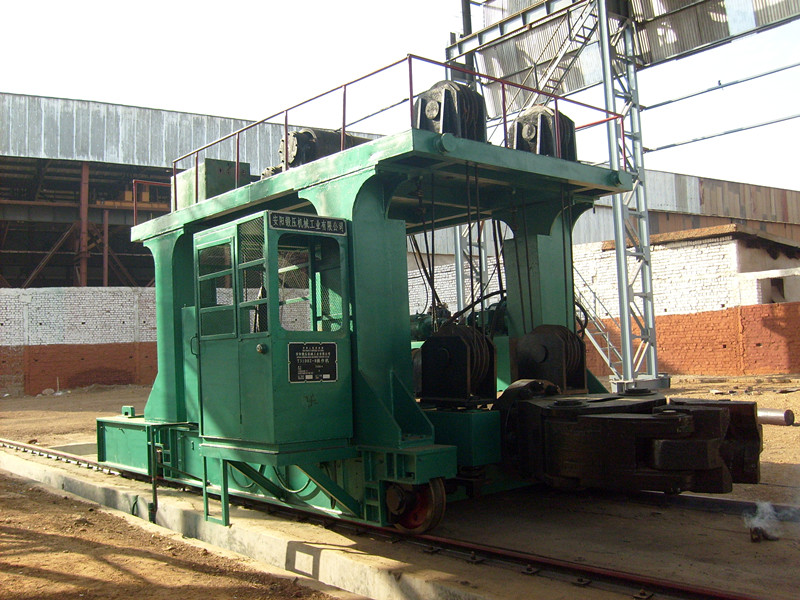

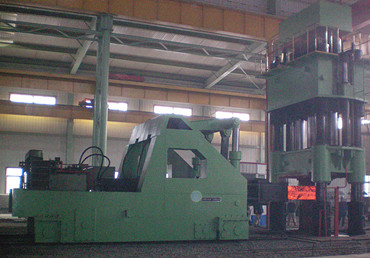

대형 메니플레트는 완전히 액압형 구동 및 기계 - 액압 혼합형 구동 두가지 있다. 대형 메니플레트랑 자유단조 헤머 및 프레스 같이 사용한다.

특징:

1. 높은 효율성 및 정밀도
2. 최적의 운영 비용.
3. 높은 정밀도와 정확도
4. 최고의 품질

파라미터
제조공장
동영상
고객
응용영역
다운로드

파라미터

Item		unit	T31-1	T31-1.5	T31-2	T31-3	T31-4	T31-5
Nominalload force		KN	10	15	20	30	40	50
Max holdingmoment		KN×m	20	30	48	60	80	120
Holding range	Min	mm	60	100	100	150	150	150
Holding range	Max	mm	420	560	600	650	700	800
Clamp center height	Min	mm	650	600	620	750	700	780
Clamp center height	Max	mm	1100	1400	1500	1300	1500	1600
Clamp rodlifting speed		m/nin	9	9	9	6	5	5
Clamp up degree		°	7	8	10	10	10	10
Clamp down degree		°	7	Touch ground	Touch ground	Touch ground	Touch ground	Touch ground
Clamp head over hang		mm	1480	1360	1550	1750	1600	2150
Clamp rotate speed		r/min	30	30	30	20	20	20
Clamp head max rotate dia		mm	980	1130	1200	1250	1288	1300
Manipulator moving speed		m/min	40	40	40	26	30	25
Manipulator rail distance		mm	2200	2200	2200	2280	2280	2280
working oil pressure		Mpa	10	10	10	8	8	15
Total motor power		kw	18.5	50	70	74	58	67
Machineoutside size (L×W×H)		mm	5180 2800× 2470	4800× 2380× 3000	5400× 2900× 3100	6290× 3060× 3045	6350× 3200× 3600	7600× 3850× 3600

Item		unit	T31-8	T31-10	T31-16	T31-20	T31-30	T31-40
Nominalload force		KN	80	100	160	200	300	400
Max holdingmoment		KN×m	200	250	400	500	700	900
Holding range	Min	mm	180	230	280	310	350	380
Holding range	Max	mm	1000	1000	1130	1300	1450	1600
Clamp center height	Min	mm	800	800	850	900	1030	1200
Clamp center height	Max	mm	1800	1700	1800	1850	2100	2300
Clamp rodlifting speed		m/nin	6	6	6	6	6	6
Clamp up degree		°	7.5	7.5	7.5	7.5	7.5	7.5
Clamp down degree		°	12	Touch ground	12	Touch ground	10	10
Clamp head over hang		mm	2200	2200	2200	2835	2300	2360
Clamp rotate speed		r/min	20	15	15	15	12	10
Clamp head max rotate dia		mm	1920	1980	2030	2130	2200	2260
Manipulator moving speed		m/min	20	20	20	30	15	15
Manipulator rail distance		mm	2737	3300	3300	3800	4100	4300
working oil pressure		Mpa	15	15	15	15	15	15
Total motor power		kw	104	130	165	230	250	280
Machineoutside size (L×W×H)		mm	9000× 4700× 4100	11000× 4400× 4000	10000× 4000× 3900	11200× 4830× 4600	12000× 4800× 4500	12800× 5100× 4900
