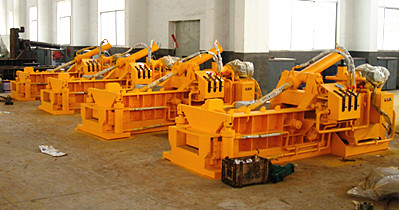

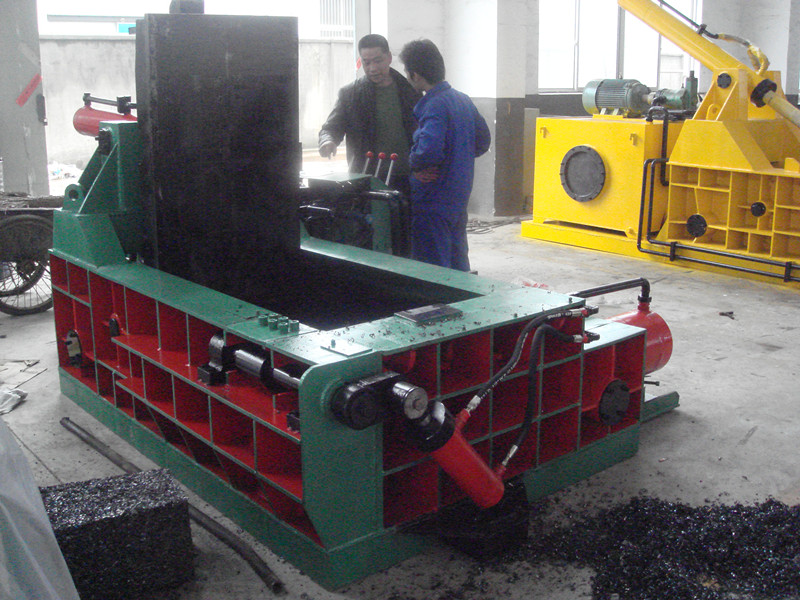

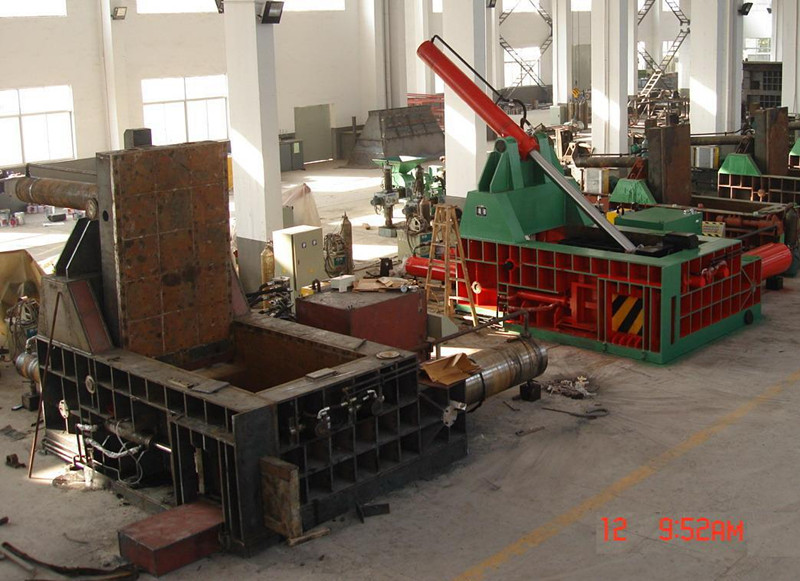

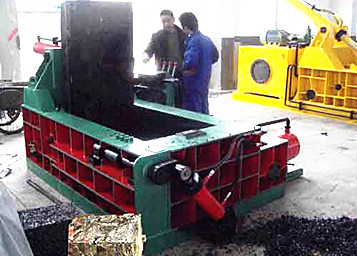

금속스크랩 분쇄압착기

금솟스크랩 분쇄압착기는 제강소, 금속 재생 회가, 야금공업 등 공업애 사용됟다.편라하게 고철을 다시 녹인다.

특징:

1.액압형 구동,수동 및 PLC 제어

2.자유로운 하역

3.저유로운 모양 압착

파라미터

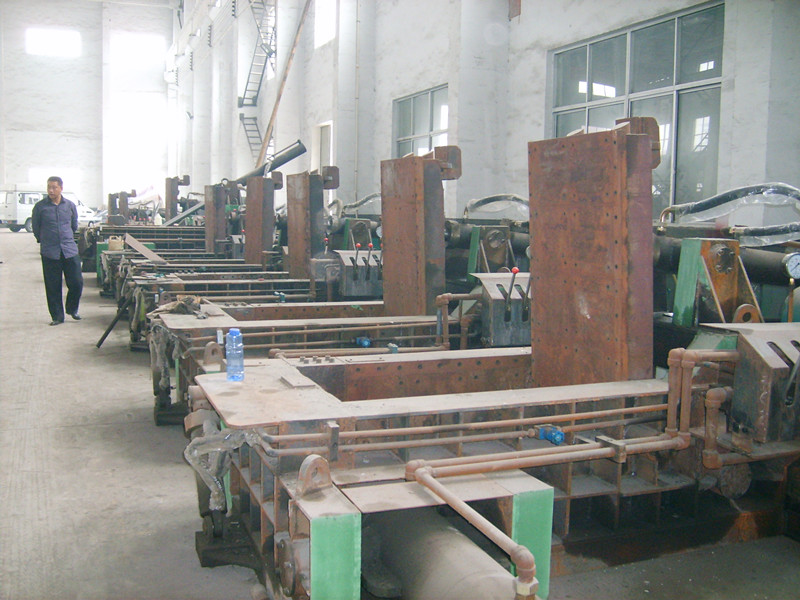

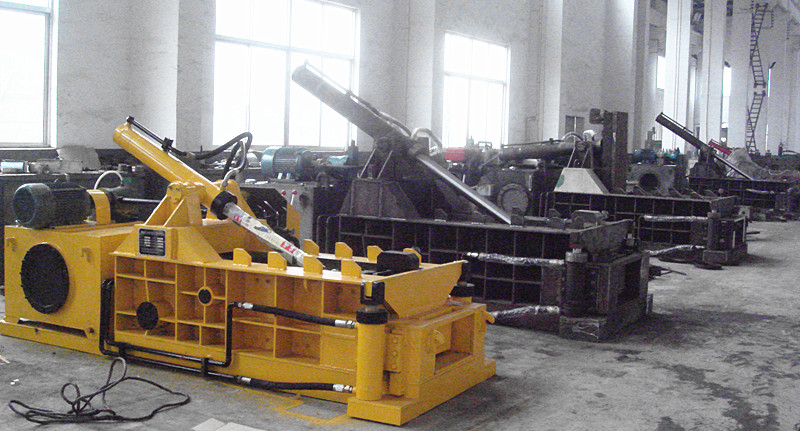

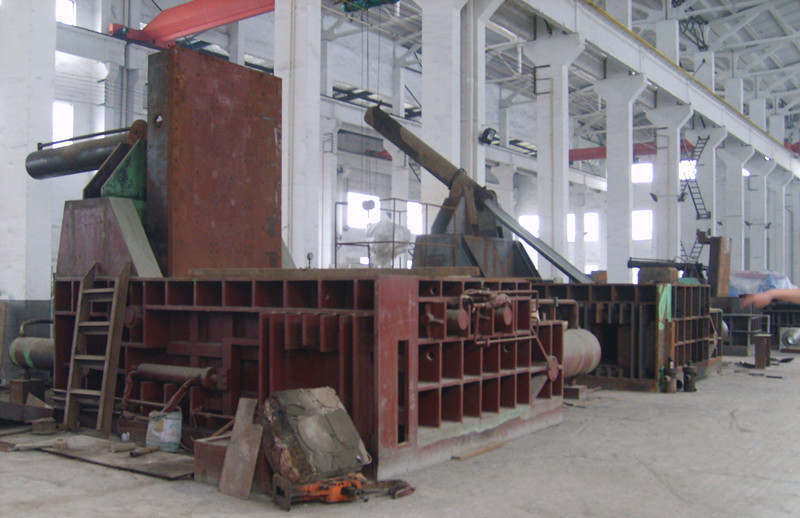

제조공장
동영상
고객
응용영역
다운로드

파라미터

Item	unit	Y81-63	Y81-63A	Y81-100	Y81-100A	Y81-130B	Y81-130C	Y81-135
Pressure of main cylinder	KN	630	630	1000	1000	1300	1300	1300
ID of main cylinder	mm	￠180	￠180	￠220	￠220	￠250	￠250	￠250
Baling Chamber	mm	750×500 ×350	1000×600 ×500	1000×700 ×550	1100×500 ×500	1200×700 ×550	1200×800 ×550	1400×600 ×600
Final Bale size	mm	180×180	200×200	300×300 250×250 220×220 200×200	200×(200-500)	300×300 250×250 220×220 200×200	300×300 250×250	600×250
Final Bale size	mm	180×180	200×200	300×300 250×250 220×220 200×200	200×(200-500)	300×300 250×250 220×220 200×200	300×300 250×250	600×250
Baled block density	kg/m3	≥1800	≥1800	≥1800	≥1800	≥1800	≥1800	≥1800
Productivity	ton/shift	3-4	4-6	6-8	6-8	8-12	12-16	16-20
Power	KW	7.5	11	11	11	15	15	18.5/22
Baler Discharging		manual	Turn-out	Turn-out	Forward-out	Turn-out	Turn-out	Forward-out
Machine Weight	ton	3	4.5	5.5	5	6	6.2	7.8

Item	unit	Y81-160	Y81-160A	Y81-200	Y81-250	Y81-315	Y81-400	Y81-600
pressure of main cylinder	KN	1600	1600	2000	2500	3150	4000	6000
ID of main cylinder	mm	￠280	￠280	￠320	￠340	￠400	￠450	￠550
Baling Chamber	mm	1200×700 ×550	1600×800 ×800	1600×1200 ×800	2000×1200 ×800	2000×1400 ×1200	2500×1600 ×1200	2800×2000 ×1200
Final Bale size	mm	300×300	350×350	350×400	450×450	450×500	500×600	600×700
Final Bale size	mm	300×300	350×350	350×400	450×450	450×500	500×600	600×700
Baled block density	kg/m3	≥1800	≥1800	≥1800	≥1800	≥1800	≥1800	≥1800
productivity	ton/shift	12-16	16-20	24	30	30-36	36-50	80
Power	KW	18.5/22	18.5/22	30	30	37	44	90
Baler Discharging		Turn-out	Turn-out	Push-out, Turn-out	Push-out, Turn-out	Push-out, Turn-out	Push-out, Turn-out	side-out
Machine Weight	ton	8	12	20	28	32	40	90
