Transportador de lingotes

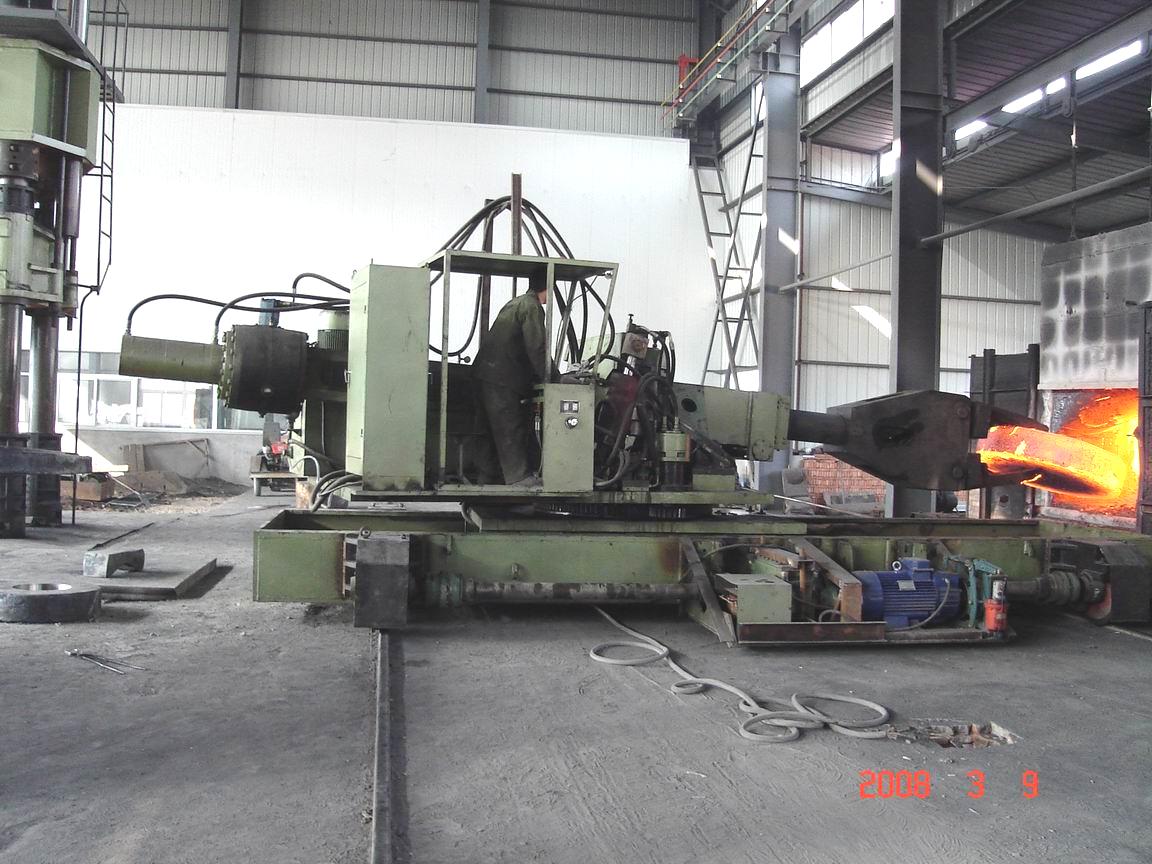

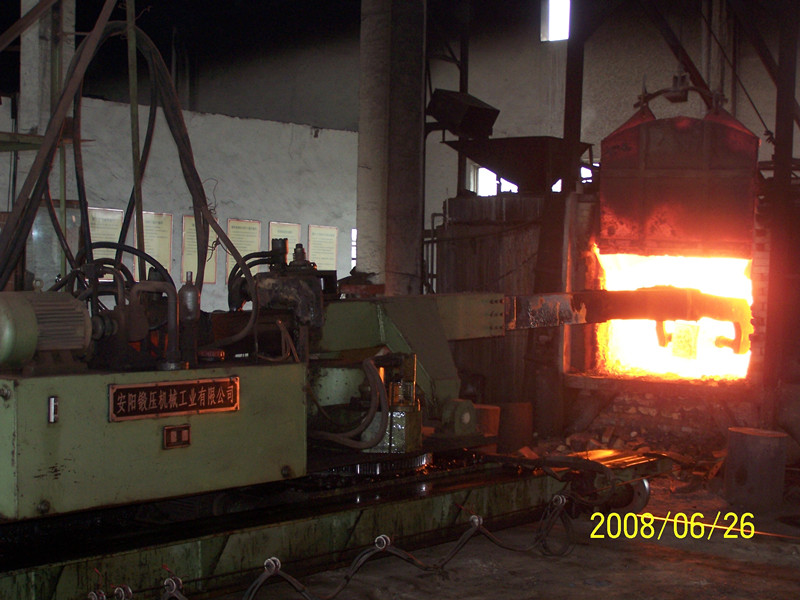

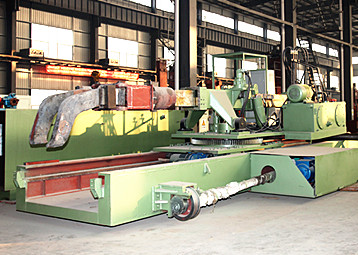

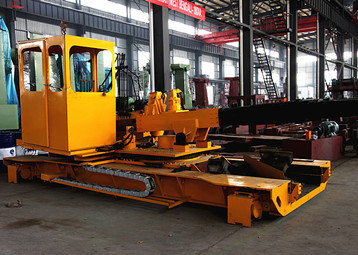

Forging charger is a mechanical-hydraulic mixed type machine.,it is used to transport cold and hot ingots discs and rings in open-die forging plants, ring mills, blooming mills and similar works. According to the types of the manipulative workpiece, they fall into clamp-support type, clamp-hold type, fork type. It can do the functions: manipulator walk,upside of the manipulator turn around, clamp rod flex,clamp rod lifting.

Features:
1. Efficient forging process and high performance.
2. Operational costs will be reduced significantly.
3. Rapid movements with highest precision will be achieved.
4. The quality of the forgings as well as the capacity of the production line can be significantly increased.

  • Parameters
  • Manufacturing
  • Video
  • Customer
  • Application Fields
  • Download

Parameters

Item Unit ZHJ-0.6 ZHJ-1 ZHJ-2 ZHJ-3 ZHJ-4 ZHJ-5 ZHJ-8 ZHJ-10
Nominal load weight ton 0.6 1 2 3 4 5 8 10
Holding range mm 50-550 50-600 80-700 100-850 100-1000 100-1000 150-1500 150-1800
Clapmp rod overhang mm 1500 1800 1800 210 2100 2100 2300 2300
Holding height mm 1500 1600 1600 1800 1800 1800 2000 2000
Moving speed of
manipulator upside
m/min 25 25 25 25 20 20 20 15
Manipulatormoving speed m/min 50 50 50 50 50 40 30 20
Table framerotating speed r/min 4 4 3 3 3 3 2 2
Workingoil pressure MPa 8 8 8 10 10 12 10 12
Total motorpower kw 11 15 22 29.7 33.5 46.5 89 130
Machine outside
size(L×W×H)
mm 4500×2200
×1500
4800×2200
×1550
5800×2700
×1760
6700×2650
×1450
7500×3450
×2650
7500×3200
×2850
8000×4500
×2770
8600×4600
×2900
