Cortadora de lingotes de precisión

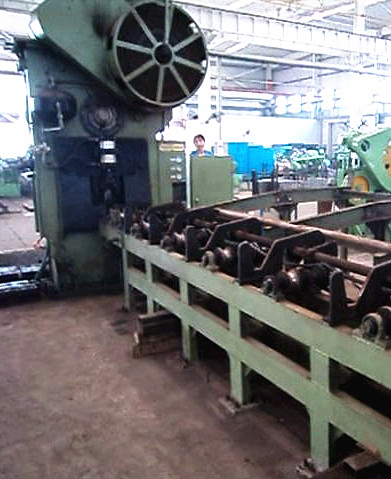

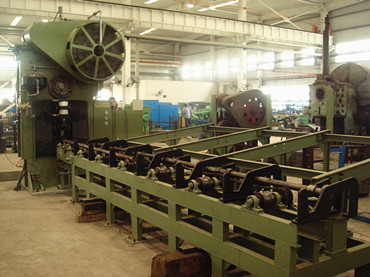

Billet cutting machine(billet shearing machine) is a kind of cold shearing machine, which is used to cut steel bar for the closed die forging production line. With PLC control, automatic feeding, automatic cutting , automatic counting, automatic lubrication and overloading protection .

Features:

1. PLC control
2. Section slope <=3 °; weight error within 0.5%
3. High efficiency cutting
4. Safety working
5. Energy saving
6. Low noise
7. Reliable operation and easy maintenance

  • Parameters
  • Manufacturing
  • Video
  • Customer
  • Application Fields
  • Download

Parameters

Ítem Unit Q42-200 Q42-300 Q42-400 Q42-500
Fuerza de prensado KN 2000 3000 4000 5000
Frecuencia de corte Times 50 30 40 20
Profundidad del trazo mm 70 80 90 110
Resistencia a la tensión del material MPa 600 600 600 600
Diámetro de corte mm 25-55 25-75 30-85 30-110
Longitud de corte mm 50-300 50-300 50-300 50-300
Presión de aire requerida MPa 0.5 0.5 0.5 0.5
Potencia del motor principal KW 18.5 22 30 45
Peso de la máquina Ton 11 14.5 17.7 22.5
