Remachadora hidráulica

High-speed hydraulic riveting machine is generally applied in heavy truck, bus, car, motorcycle, train, agricultural vehicle, mine-vehicle, aeroplane, bridge structure etc.

Features:

1. The low noise
2. The low labor intensity
3. The high riveting speed about 1/3(s)
4. The high riveting force is used in cold or hot riveting
5. The equal riveting force and high quality which can partly correct vehicles’ frame.

Parameters

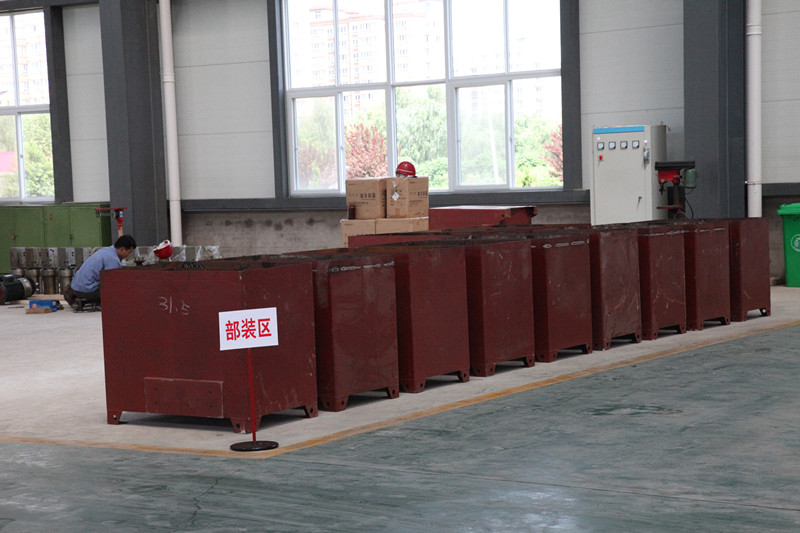

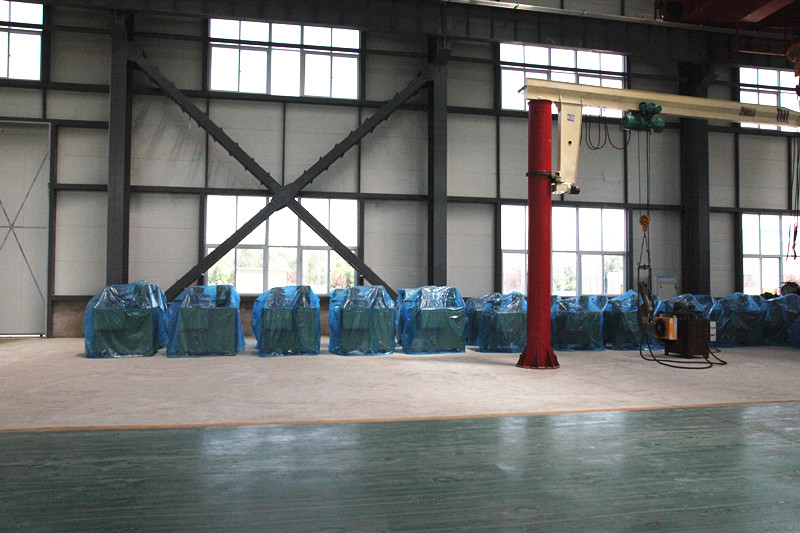

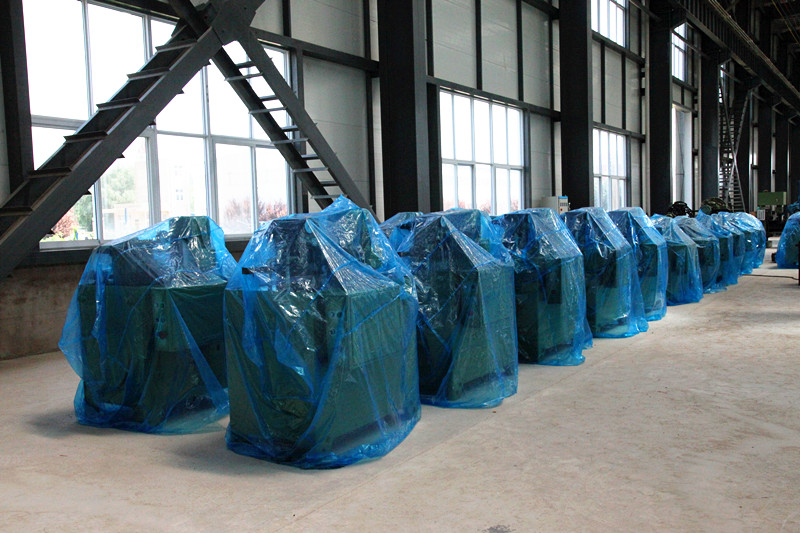

Manufacturing
Video
Customer
Application Fields
Download

Parameters

The main technical parameter of hydraulic riveting machine pump station
Model		T92Y-8	T92Y-30	T92Y-40	T92Y-50	T92Y-63
Riveting force(KN)		80	300	400	500	630
System Pressure force(mpa)		16	7.5	7.5	7.5	7
Riveting Rate (min-1)		20-25	20-25	20-25	15-20	10-12
Max-Riveting Diameter	Cold	6	12	14	16	16
Max-Riveting Diameter	Heat	10	Ø18-20	Ø20-24	Ø24-28	Ø24-28
Pump Displacement (ml/r)		18	37	45	56	60
Motor Power (kw)		4	5.5	7.5	11	11
Oil tank volume(L)		240	450	550	650	650
Oil pipe joint(mmxmm)		M27x1.5	M27x1.5	M33x2	M36x2	M36x2

The specification and outside size of pump station
Type	A(mm)	B (mm)	C (mm)	D (mm)	E (mm)	Weight (KG)
T92Y-8	1020	800	1080	1200	500	700
T92Y-30	1110	1010	1300	1250	650	550
T92Y-40	1110	1010	1300	1350	650	550
T92Y-50	1110	1010	1550	1400	700	680
T92Y-63	1250	1150	1430	1400	700	700

The hanging riveting clamp specification table
Item		Unit	WB-20-H	WB-30-H	WB-40-H	WB-50-H	WB-63-H
Nominal riveting force		Ton	20	30	40	50	63
ID of oil cylinder		mm	90	110	125	140	160
Stroke		mm	80	80	90	120	150
Diameter of piston rod		mm	40	50	50	60	60
Riveting die mounting hole		mm	20	20	20	25	30
The neck diameter of oil cylinder		mm	64	80	80	90	90
The length of neck		mm	105	115	115	145	145
The diameter of rivet	cold riveting	mm	10	12	14	16	16
The diameter of rivet	hot riveting	mm	16	20	22	24	27
Hydraulic generator			T92Y-30		T92Y-40	T92Y-50	T92Y-63
