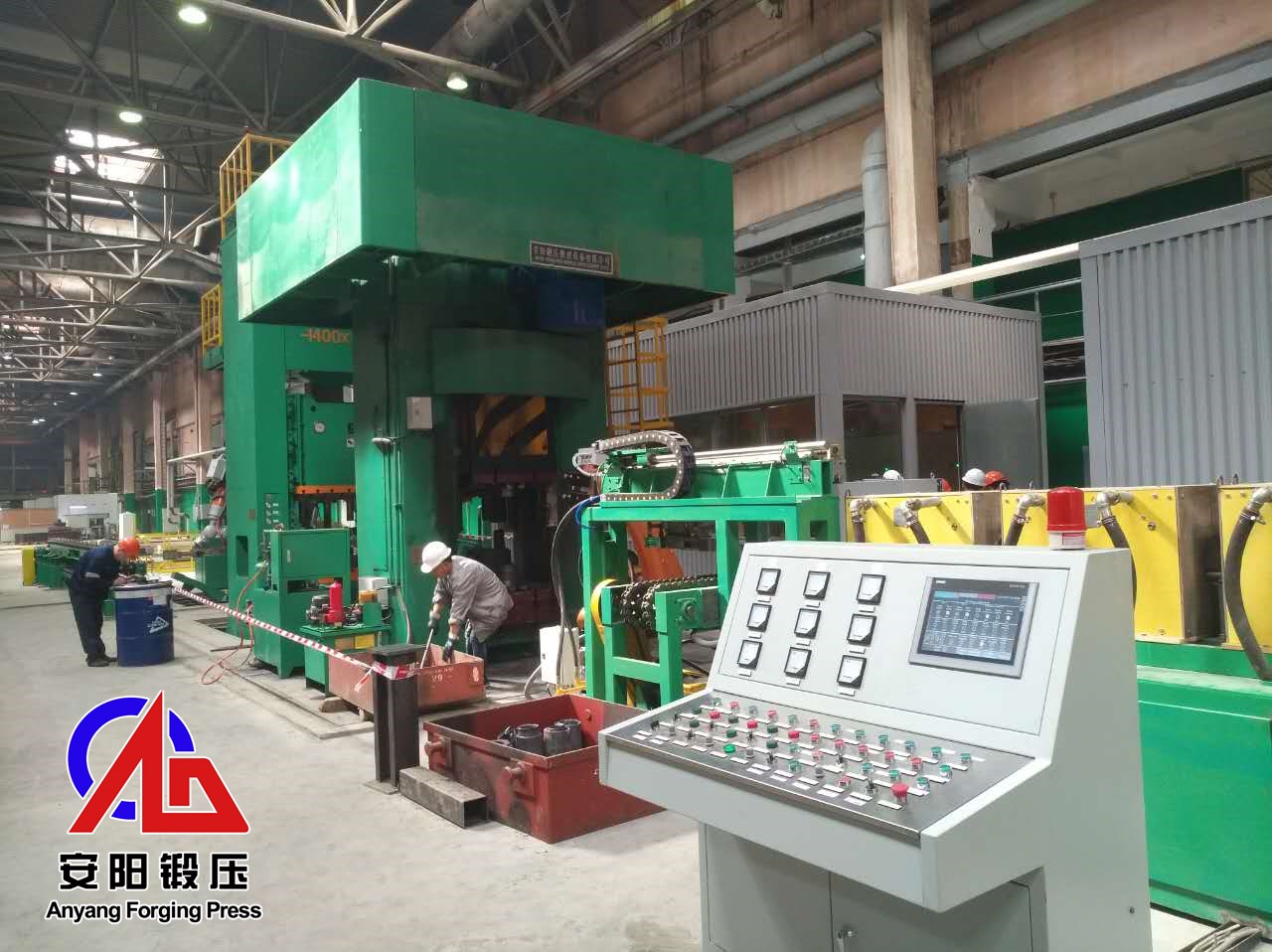

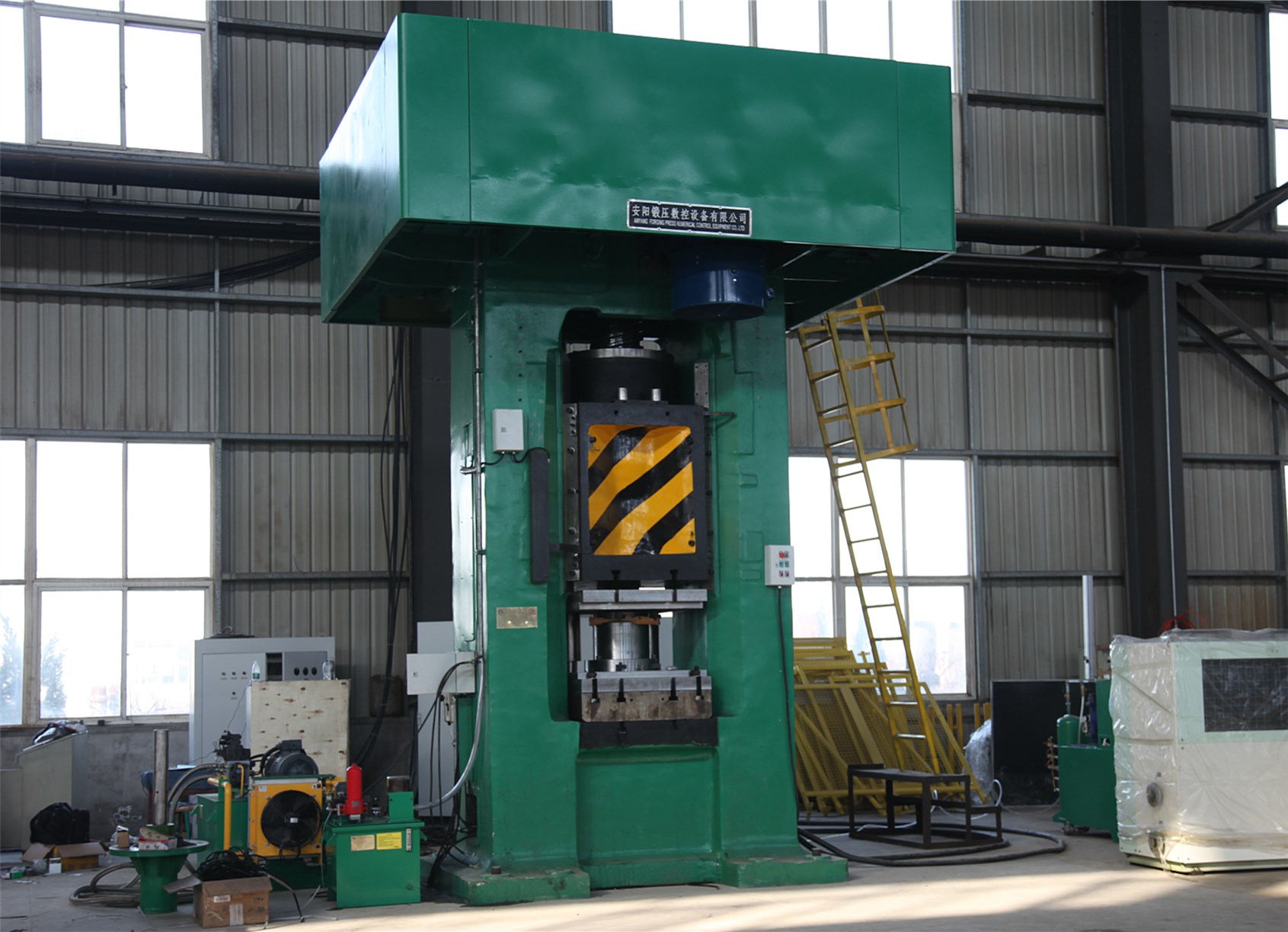

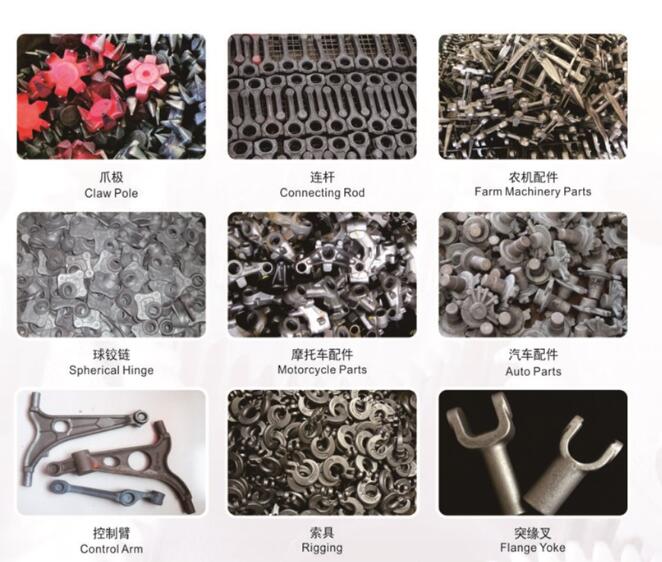

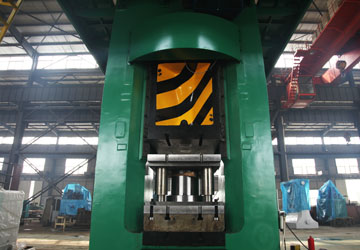

Electric screw press is widely used for forging parts in the field of machine, automobile, hardware, coal machinery and aerospace, it can be used for die forging, precision forging, trimming, calibration processes, it is one kind of popular forging equipment.

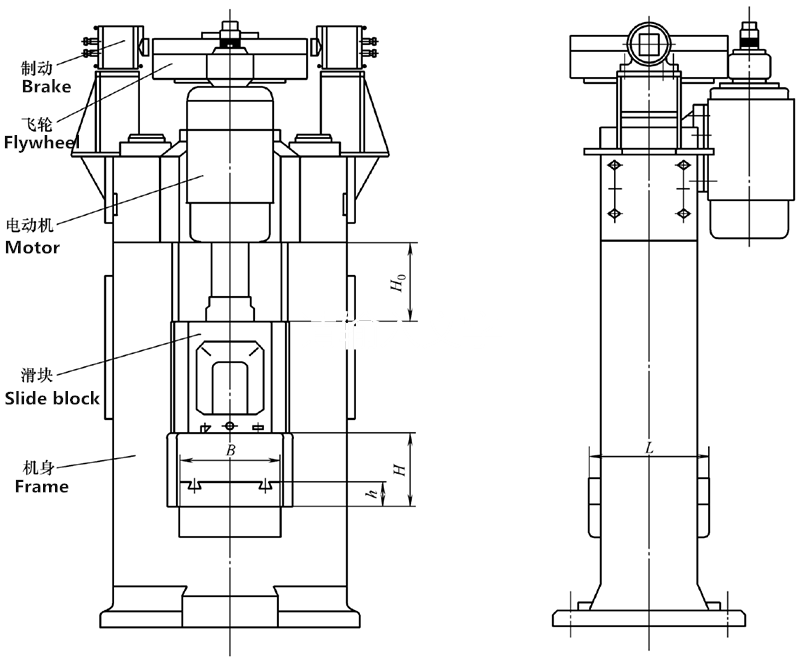

J58K series CNC electric screw press adopts long slider and long guide rail orientation form; achieve high precision and strong overload and unbalance load resistance.
J58k series CNC electric screw press control system adopts SIEMENS PLC and ABB frequency converter, with high reliability, excellent performance.
CNC clectric screw press advantages:
- 1.Press energy can be set accurately, with high precision and small tolerance, especially suitable for precision forging.
- 2.Die working life langer than friction press because the die not bear extra pressure.
- 3.Reduce power consumption because the flywheel energy recovery device.
- 4.Simple structure, low failure rate, easy maintenance,

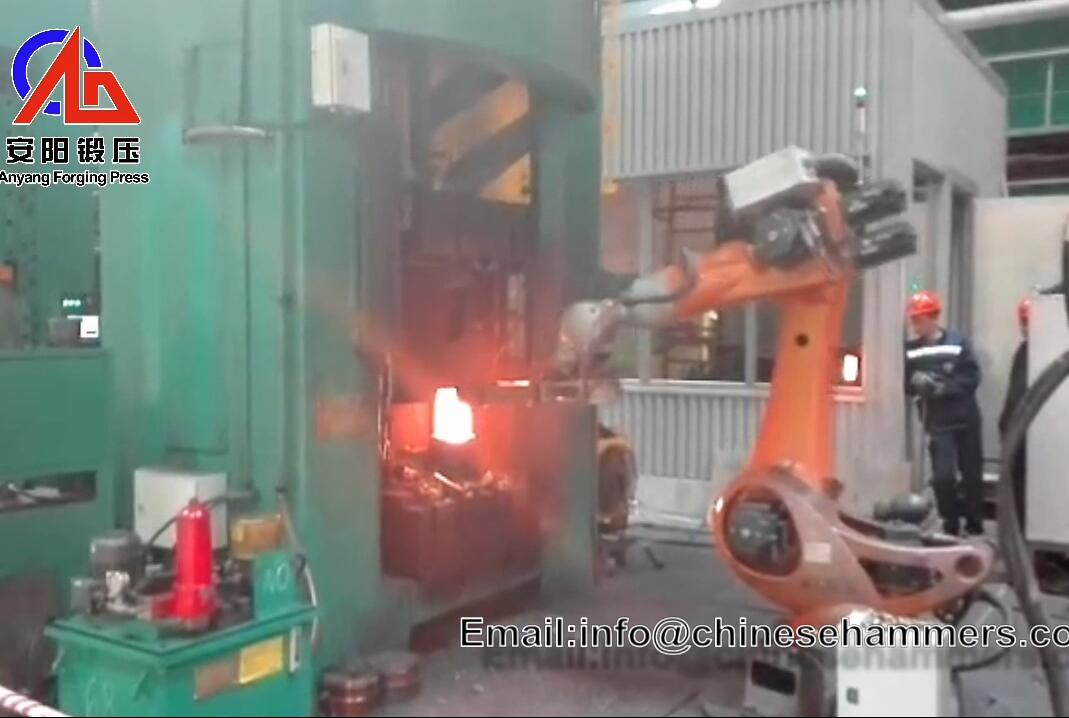

- 5.It's easy to realize automatic forging production working with robot.
- 6.The variable frequency drive technology avoid impacting the power grid and other equipment running.
- 7.Stroke adjusting quickly and position is correct.
Parameters of electric screw press:
|
Model |
Unit |
J58K-250 |
J58K-315 |
J58K-400 |
J58K-630 |
J58K-1000 |
J58K-1600 |
J58K-2500 |
J58K-4000 | |
|
Nominal force |
KN |
2500 |
3150 |
4000 |
6300 |
10000 |
16000 |
25000 |
40000 | |
|
Max.working force |
KN |
4000 |
5000 |
6300 |
10000 |
16000 |
25000 |
40000 |
63000 | |
|
Max.forging energy |
KJ |
15 |
20 |
40 |
80 |
160 |
280 |
500 |
1000 | |
|
Slide stroke |
mm |
320 |
380 |
400 |
450 |
500 |
560 |
630 |
750 | |
|
Stroke frequency |
/min |
28 |
26 |
20 |
19 |
17 |
15 |
12 |
8 | |
|
Min.enclosed height |
mm |
500 |
550
|
570 |
720 |
750 |
960 |
1100 |
1460 | |
|
Thickness of sow block |
mm |
120 |
120 |
120 |
160 |
200 |
220 |
250 |
300 | |
|
Dimension of worktable(L×B) |
mm |
560×600 |
640×700 |
750×730 |
820×900 |
920×1050 |
1000×1250 |
1200×1300 |
1600×1900 | |
