Ring rolling machine

Ring rolling machines are precisely adapted to meet the customer's requirements and rolls both profiled and rectangular rings with a high degree of precision as well as cost-effectively.The machine concept is particularly maintenance and user-friendly.
Ring rolling machines are suitable for producing rings for the following applications: Flanges, Bearings, Gears, Wheels, Sleeves, Rings in the automobile, aerospace, oil & gas industry etc.

Advantages:
1. High material utilization
2. Good quality
3. Good working conditions, high productivity
4. Low production costs

Ring rolling machine are divided into the radial rolling and radial-axial rolling(D53K series,CNC controlled). The radial rolling are divided into vertical type (D51 series) .

  • Introduction
  • Manufacture
  • Videos
  • Pictures
  • Applications
  • Documents

Introduction

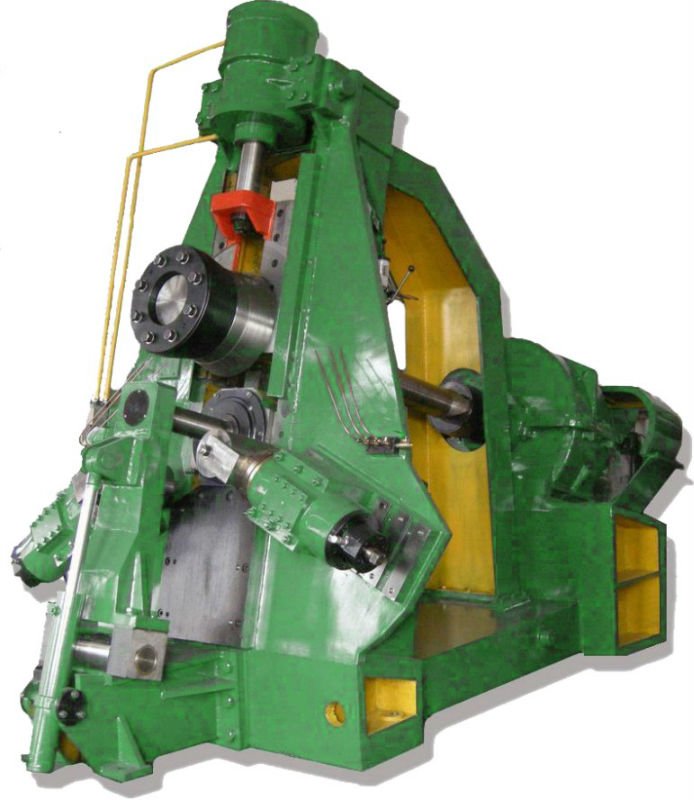

ring rolling machine

Item Unit D51-160D D51-160E D51-250D D51-250E D51-350D D51-350E
The ring size Max.OD mm 45～160 200 250 300 350 350
Max.
Height		 mm 35 70 50 120 85 200
Max.Productivity Pic/h 700 600 500 240 200 120
Nominal pressure of cylinder kn 6000 11300 9800 19600 15500 30000
Max.stroke of sliding block mm 70 70 110 110 130 130
250
Roller Linear Velocity m/sec 2～2.5 1.64 2.1 1.63 2.2 1.45
Speed of main shaft r.p.m 120 92 80 62.3 62 41
OD of rolling wheel mm 360～380 360～380 500～520 680～700 680～700
Center height of rolling roller mm 670 670 875 875 1050 1100
Min. distance between rolling
wheel′s center and rolling
roller′s center		 mm 185 185 265 265 365 365
Main motor power kw 18.5 30 37 55 75 90
Hydraulic motor power kw 4 7.5 11 11 15 15
Overall dimension mm 2200×
1550×1850		 2350×
1700×2100		 2890×
1900×2400		 3440×
2000×2700		 4040×
2000×3000		 4595×
2050×3370
Total weight kg 3200 3500 7000 7800 12000 13800
Item Unit D51-400E D51-500E D51-630E D51-800E D51-1000E D51-1000F
The ring size Max.OD mm 400 500 630 800 1000 1500
Max.
Height		 mm 200 220 200 220 220 200
250 350 350 350
Max.Productivity Pic/h 100 90 80 60 50 40
Nominal pressure of cylinder kn 30000 32000 32000 38000 38000 42000
42000
Max.stroke of sliding block mm 130 130 200-350
250 250
Roller Linear Velocity m/sec 1.45 1.5 1.47 1.5 1.5 1.5
Speed of main shaft r.p.m 40 40 38 38 38 38
OD of rolling wheel mm 700～720 700～720 700～720 760～820 760～820 820
Center height of rolling roller mm 1100 1200 1250 1350 1600 1780
Min. distance between rolling
wheel′s center and rolling
roller′s center		 mm 375 375 385 410 410 410
Main motor power kw 90 90 90 110 110 132
110 132 132 160
Hydraulic motor power kw 15 15 15 15 15 15
18 18 18
Overall dimension mm 4595×
2100×3370		 4800×
2200×3470		 4800×
2300×3770		 4800×
2350×3770		 5000
×2400×3520		 5500×
2700×4200
Total weight kg 14000 14500 15000 20000 22000 23800



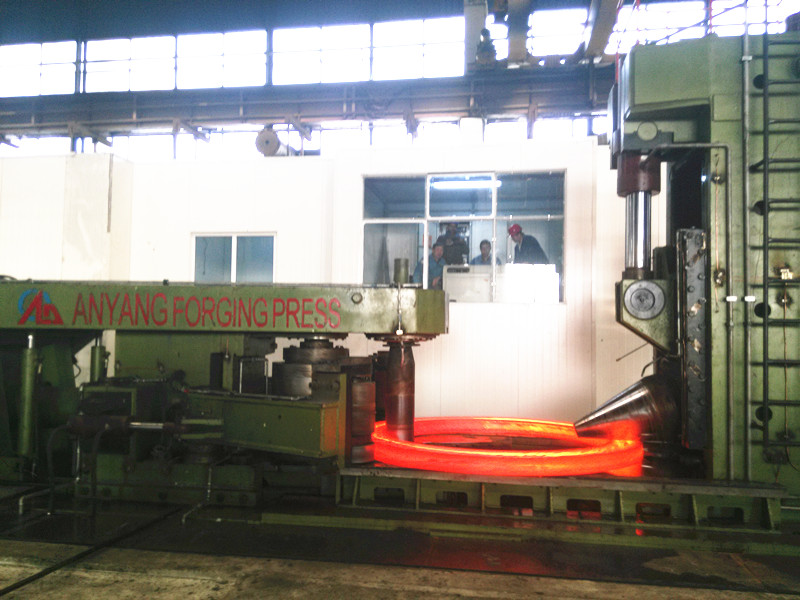

horizontal ring rolling machine

Item Unit D53K-
800		 D53K-1600 D53K-2000 D53K-3000 D53K-3500 D53K-4000 D53K-5000
Dimension
of Ring		 OD mm 350-800 400-1600 500-2000 500-3000 500-3500 500-4000 500-5000
Height mm 60-300 60-300 80-500 80-500 80-500 80-700 80-750
Parameter
of Machine		 Radial Rolling
 Force		 KN 1250 1250 2000 2000 2000 2000 2500
Axial Rolled
 Force		 KN 1000 1000 1250 1250 1600 1600 2000
Linear Velocity
 of Rolling		 M/s 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6 1.3/0.4-1.6
Driving
power		 Radial KW 280 280 500 500 560 630 630
Axial KW 2×160 2×160 2×220 2×220 2×280 2×315 2×315
Overall
Dimensions		 Length mm 10000 11000 14500 15200 16000 18500 20000
Width mm 2500 2500 3500 3500 3500 4500 5500
Height mm 3150 3300 4300 4300 4400 4400 5000
