Forging Manipulator

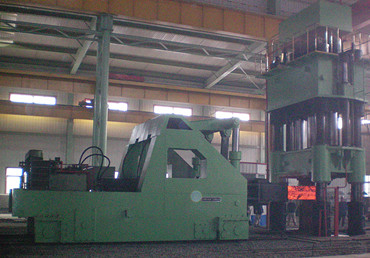

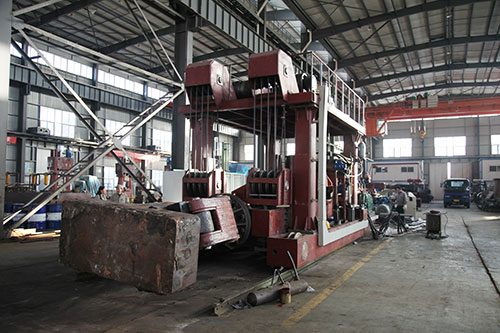

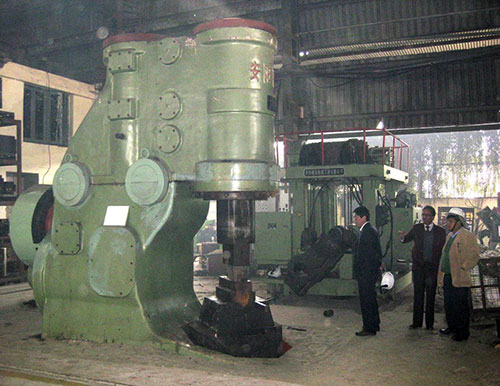

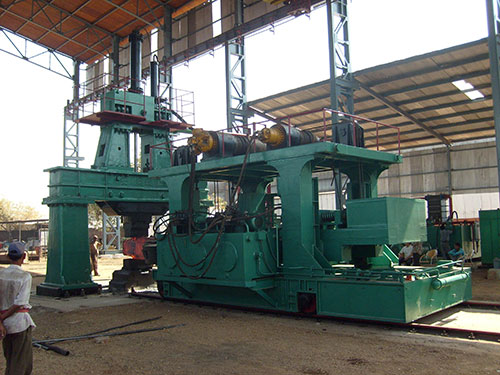

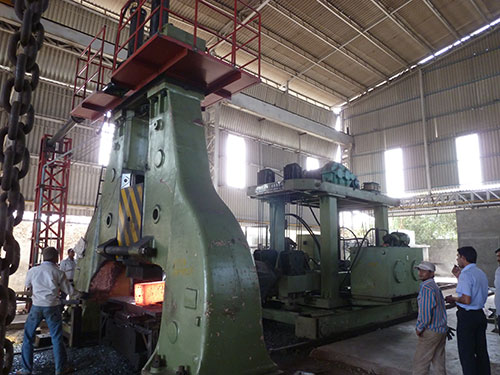

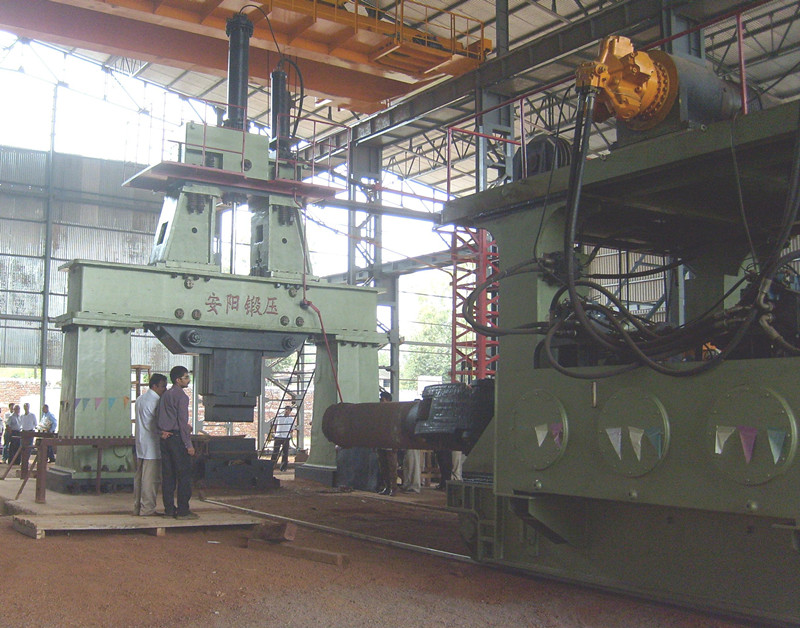

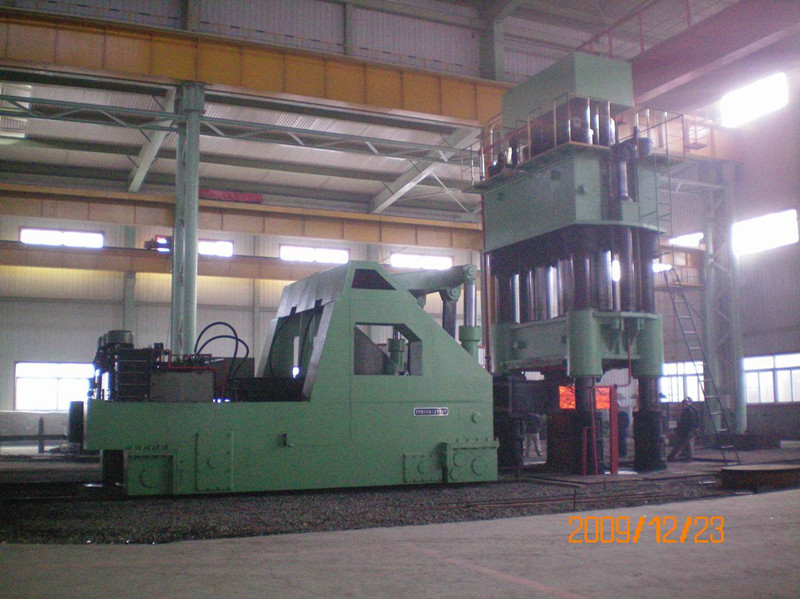

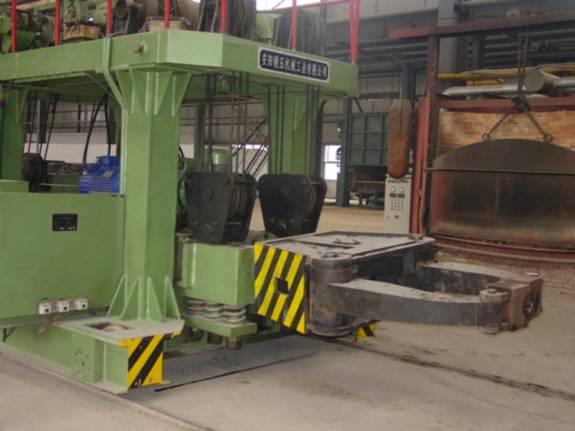

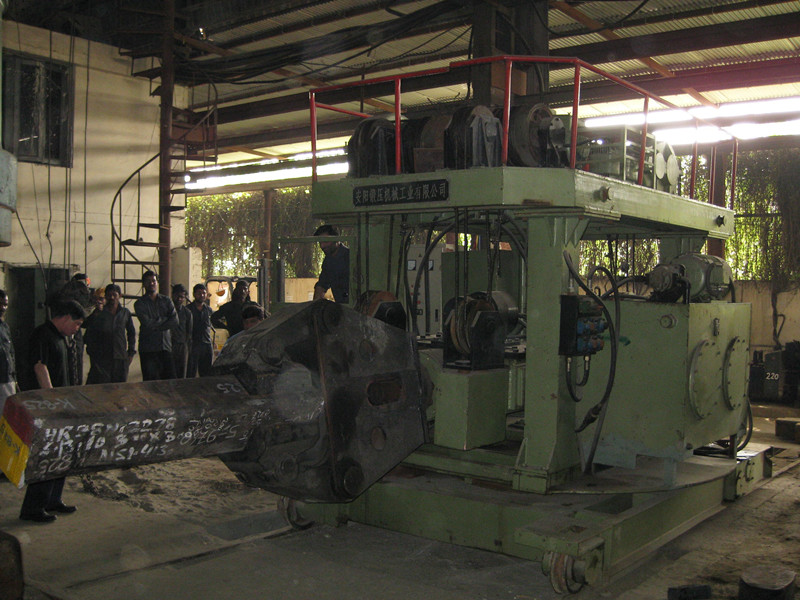

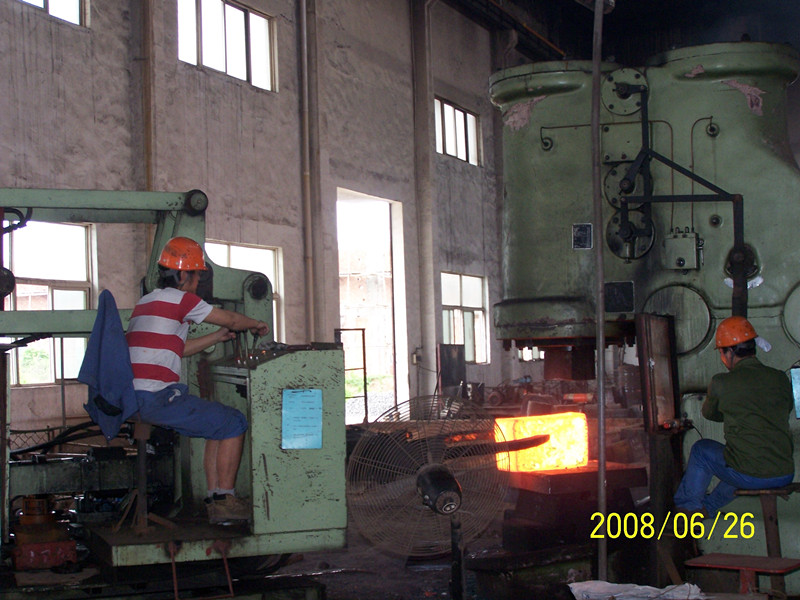

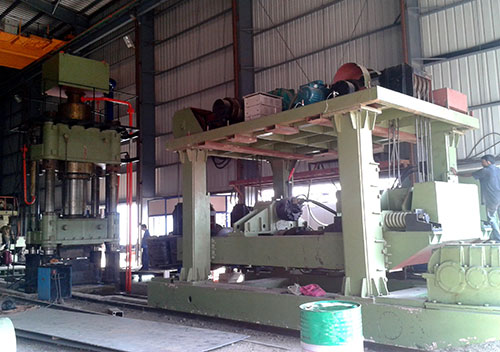

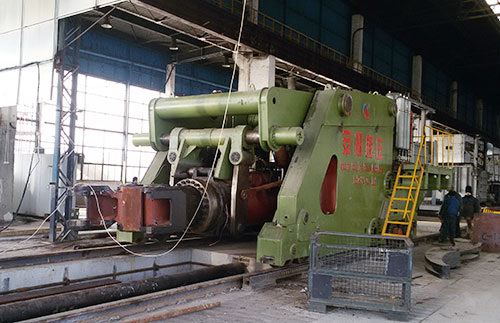

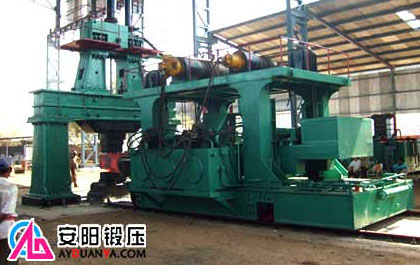

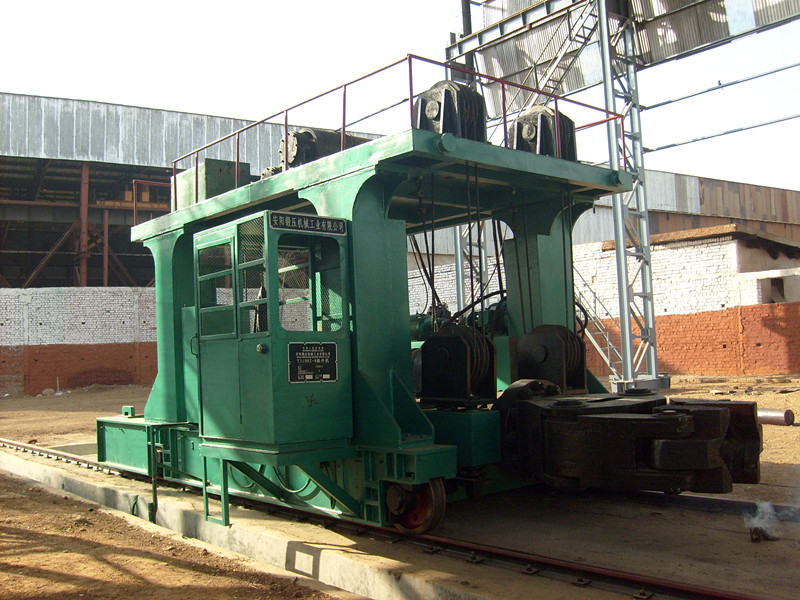

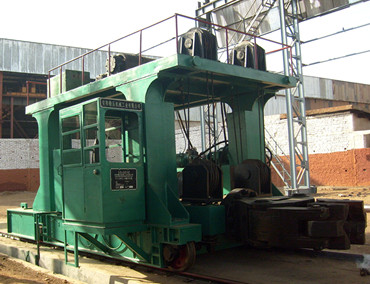

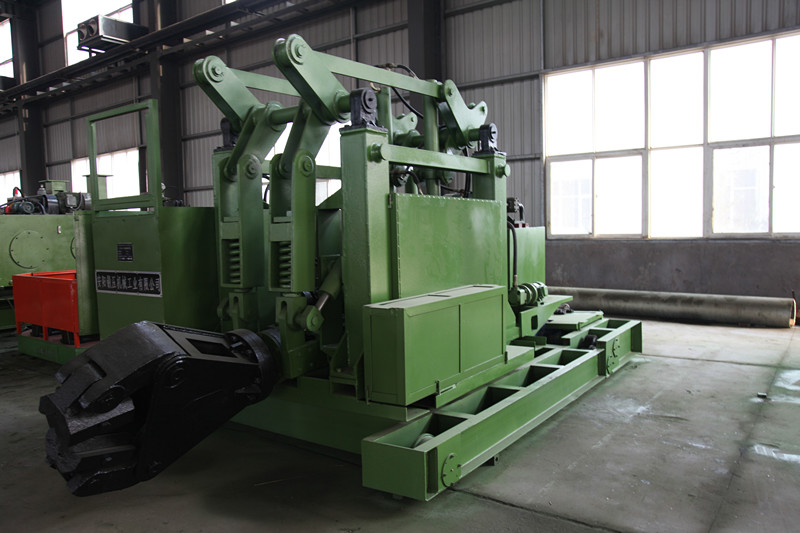

Forging manipulator include fully hydraulic and mechanical-hydraulic mixed driven two types. Forging manipulator is used to operate open die forgings under hammers and presses . It has manipulator walk, clamp clamping, the clamp head rotate, clamp frame lifting, clamp frame rotating etc actions.

Features:

1. Improve forging process efficiency and high performance.
2. Reduced forging cost significantly.
3. Movements rapid and precision is high.
4. Significantly increased the forging quality and production line capacity.

  • Parameters
  • Manufacturing
  • Video
  • Customer
  • Application Fields
  • Download

Parameters

Item unit T31-1 T31-1.5 T31-2 T31-3 T31-4 T31-5
Nominalload force KN 10 15 20 30 40 50
Max holdingmoment KN×m 20 30 48 60 80 120
Holding range Min mm 60 100 100 150 150 150
Max mm 420 560 600 650 700 800
Clamp center height Min mm 650 600 620 750 700 780
Max mm 1100 1400 1500 1300 1500 1600
Clamp rodlifting speed m/nin 9 9 9 6 5 5
Clamp up degree ° 7 8 10 10 10 10
Clamp down degree ° 7 Touch ground Touch ground Touch ground Touch ground Touch ground
Clamp head over hang mm 1480 1360 1550 1750 1600 2150
Clamp rotate speed r/min 30 30 30 20 20 20
Clamp head max rotate dia mm 980 1130 1200 1250 1288 1300
Manipulator moving speed m/min 40 40 40 26 30 25
Manipulator rail distance mm 2200 2200 2200 2280 2280 2280
working oil pressure Mpa 10 10 10 8 8 15
Total motor power kw 18.5 50 70 74 58 67
Machineoutside size
(L×W×H)
mm 5180
2800×
2470
4800×
2380×
3000
5400×
2900×
3100
6290×
3060×
3045
6350×
3200×
3600
7600×
3850×
3600
Item unit T31-8 T31-10 T31-16 T31-20 T31-30 T31-40
Nominalload force KN 80 100 160 200 300 400
Max holdingmoment KN×m 200 250 400 500 700 900
Holding range Min mm 180 230 280 310 350 380
Max mm 1000 1000 1130 1300 1450 1600
Clamp center height Min mm 800 800 850 900 1030 1200
Max mm 1800 1700 1800 1850 2100 2300
Clamp rodlifting speed m/nin 6 6 6 6 6 6
Clamp up degree ° 7.5 7.5 7.5 7.5 7.5 7.5
Clamp down degree ° 12 Touch ground 12 Touch ground 10 10
Clamp head over hang mm 2200 2200 2200 2835 2300 2360
Clamp rotate speed r/min 20 15 15 15 12 10
Clamp head max rotate dia mm 1920 1980 2030 2130 2200 2260
Manipulator moving speed m/min 20 20 20 30 15 15
Manipulator rail distance mm 2737 3300 3300 3800 4100 4300
working oil pressure Mpa 15 15 15 15 15 15
Total motor power kw 104 130 165 230 250 280
Machineoutside size
(L×W×H)
mm 9000×
4700×
4100
11000×
4400×
4000
10000×
4000×
3900
11200×
4830×
4600
12000×
4800×
4500
12800×
5100×
4900
