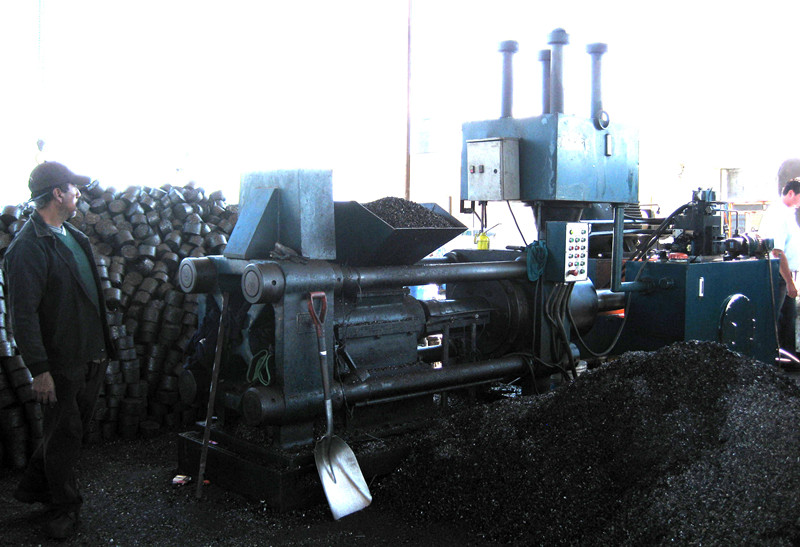

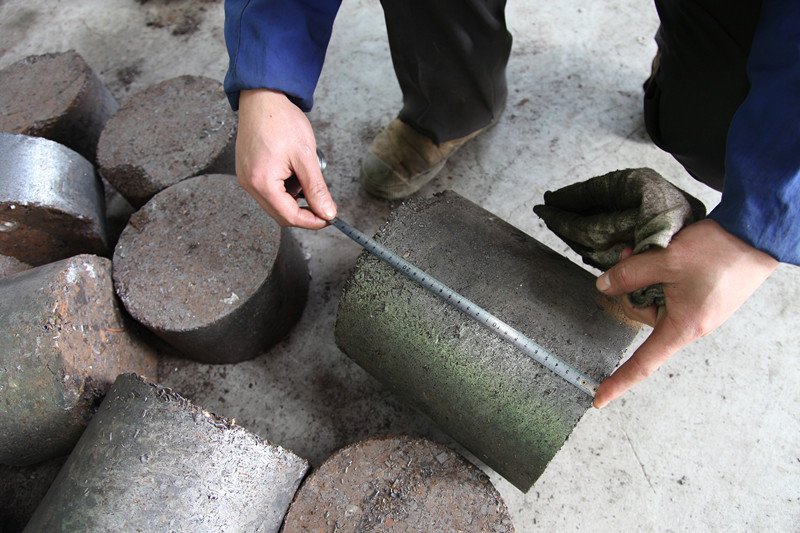

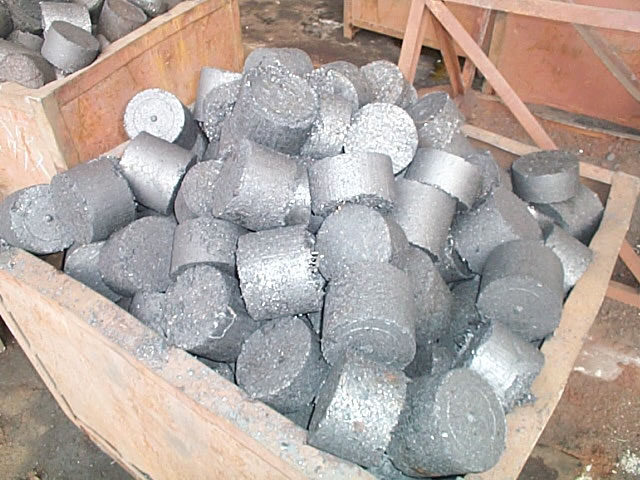

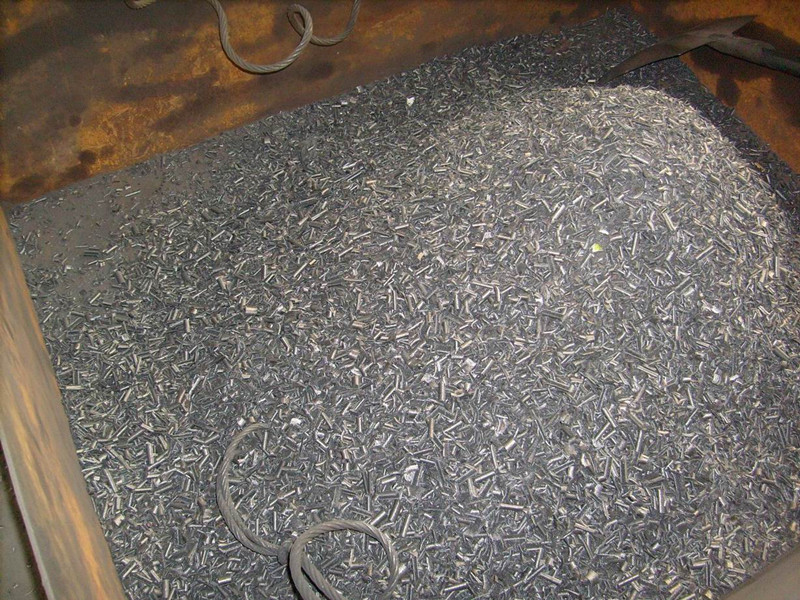

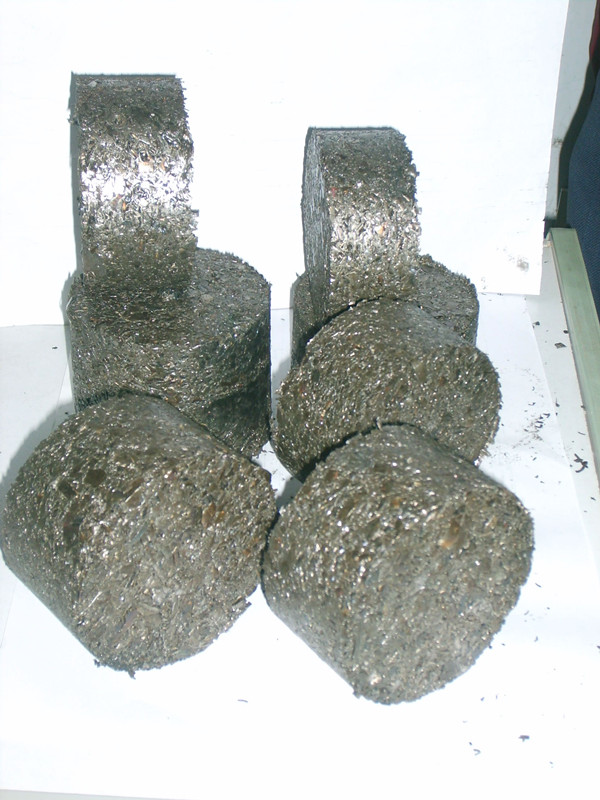

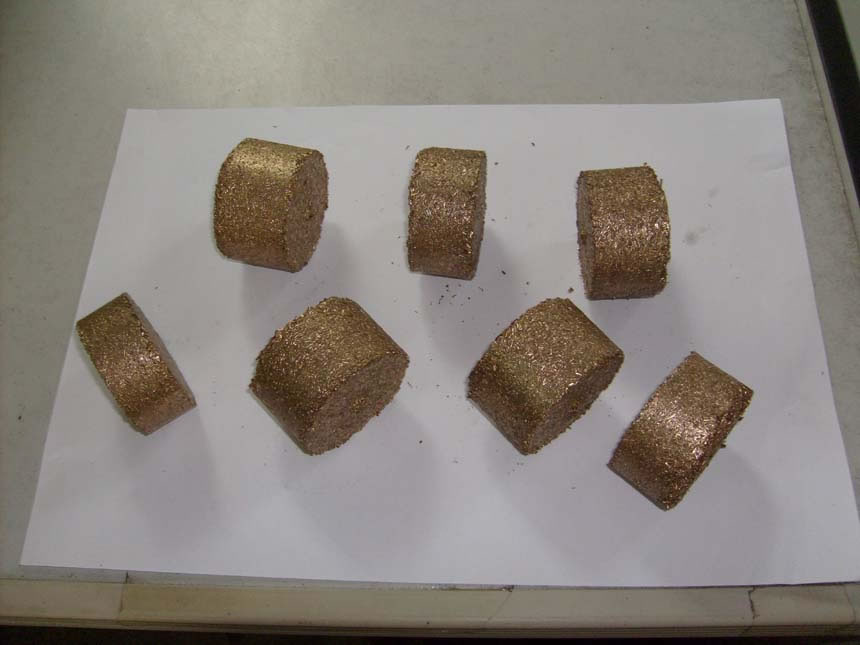

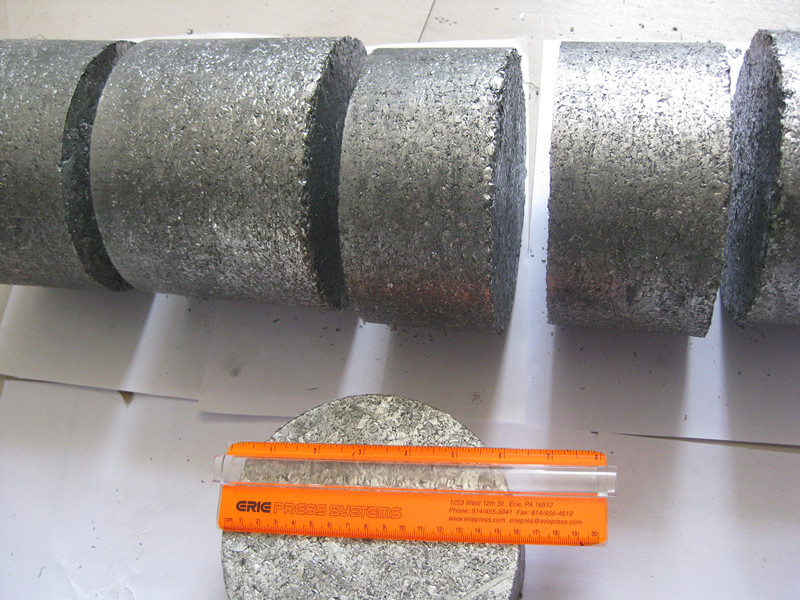

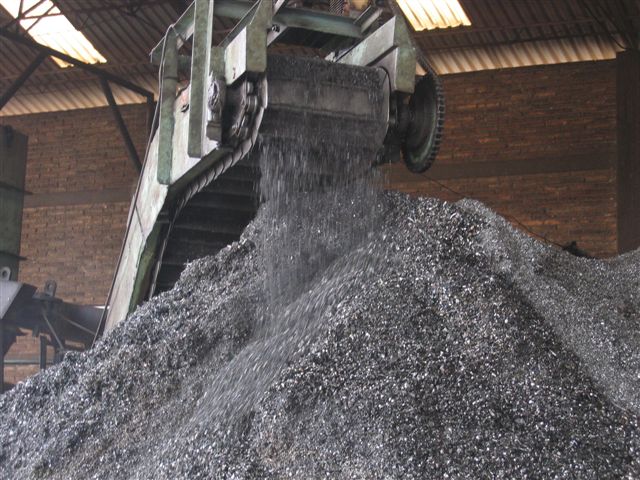

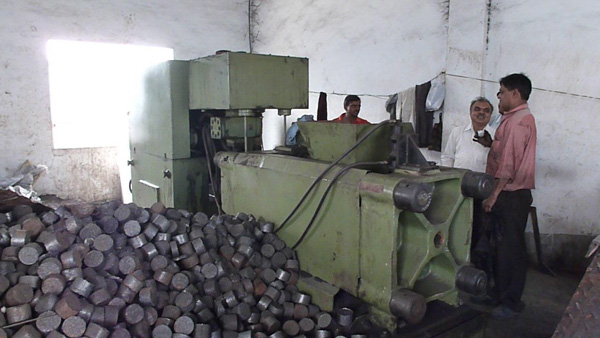

On the condition of not adding additive, the briquetting press can compress all kinds of cast iron, aluminum, copper,brass,mild steel etc metal chips to high density metal blocks.It also allows for the reclamation of valuable coolant, reduces floor space storage requirements, handling and transportation costs.

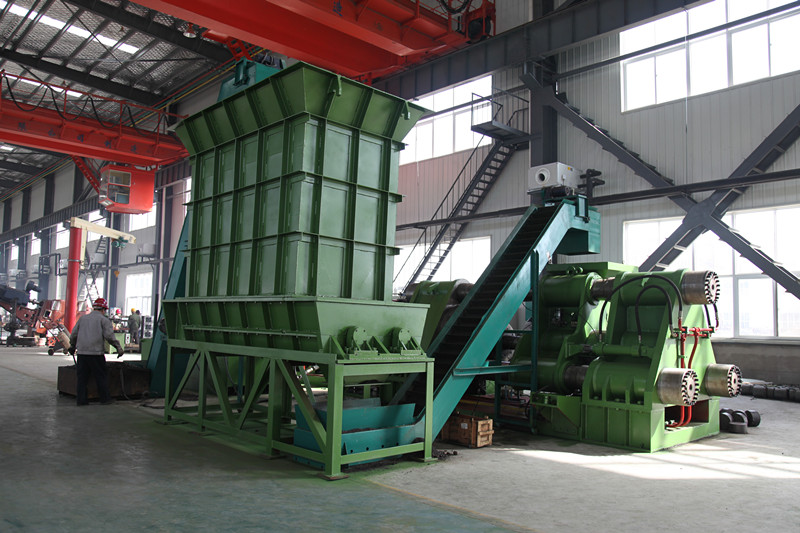

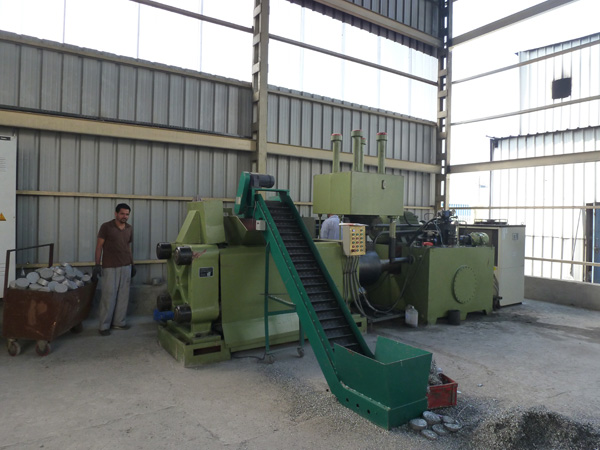

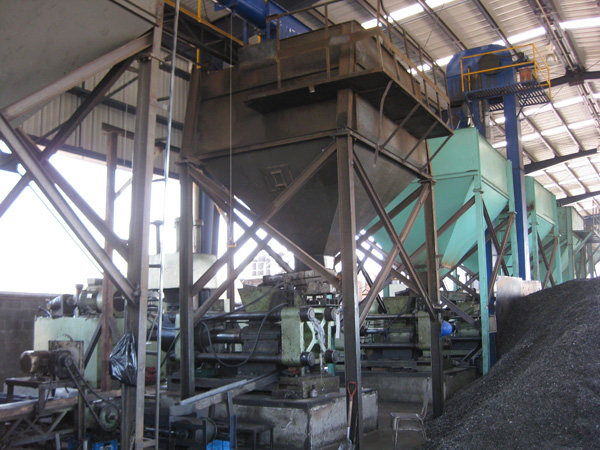

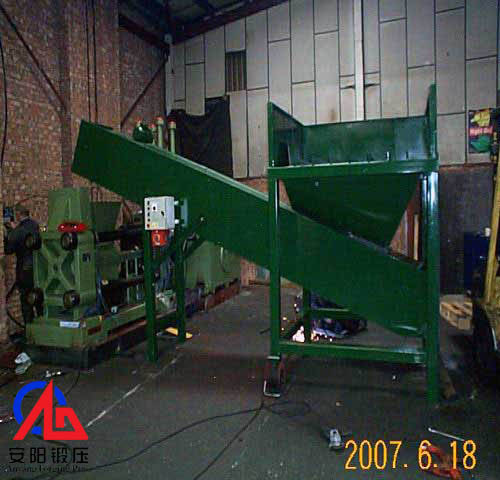

As the customer required, we can supply automatic feeder and conveyor to eased the workforce intensity.

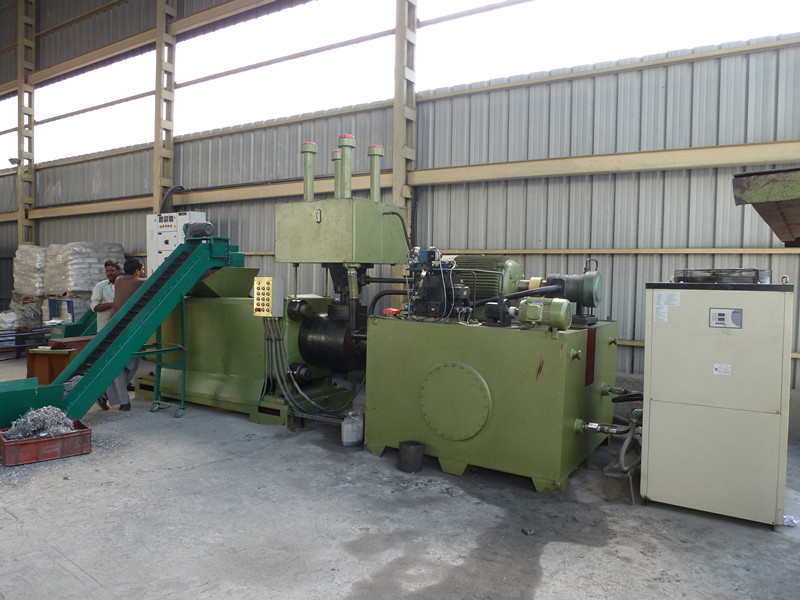

We can supply the electric cooler,which can meet 24 hours production.

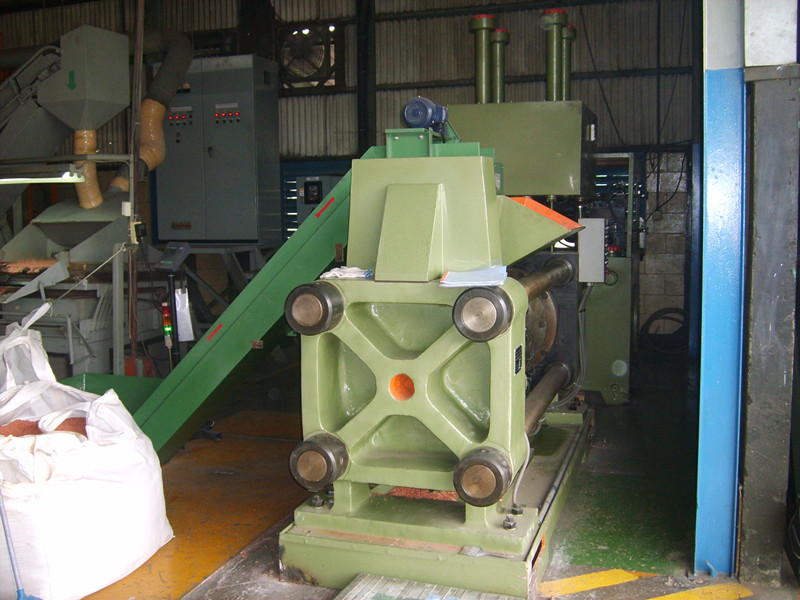

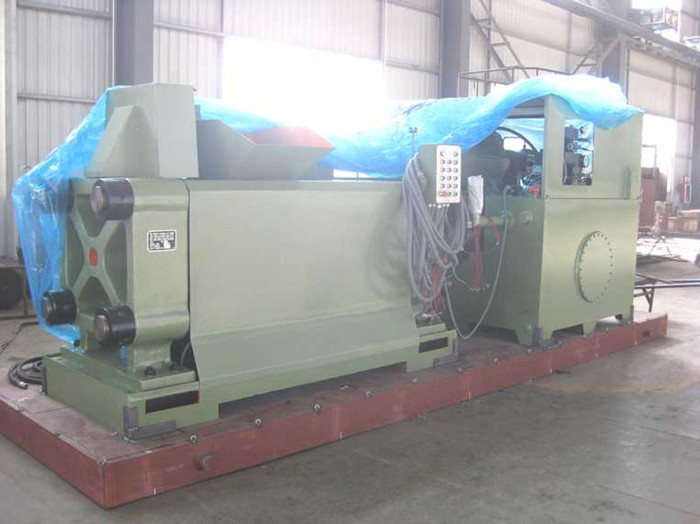

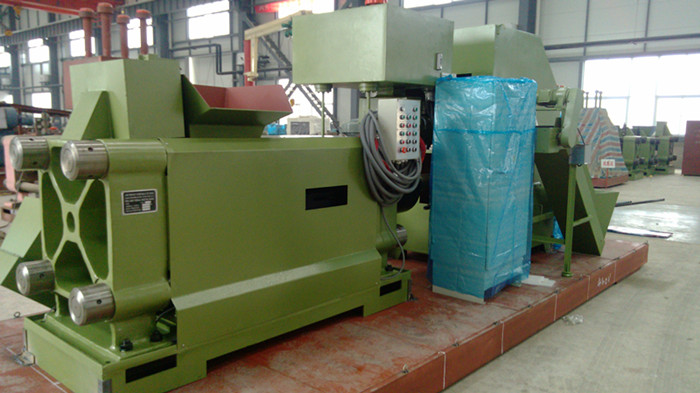

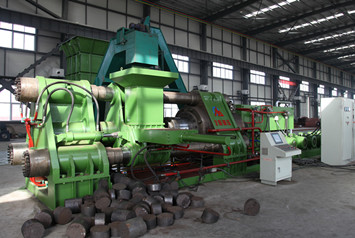

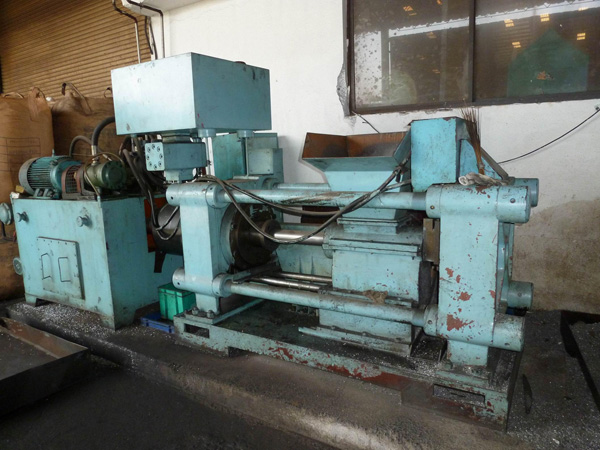

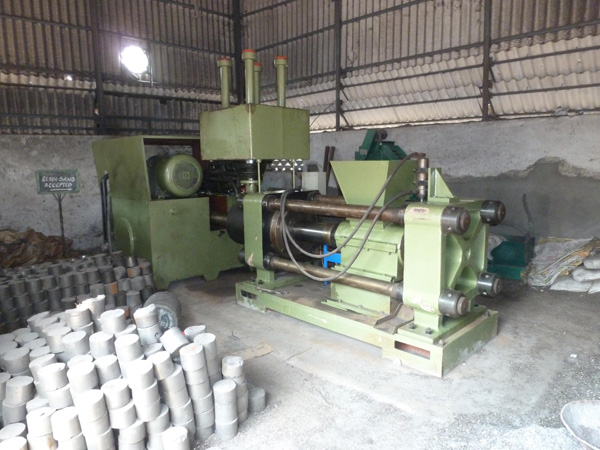

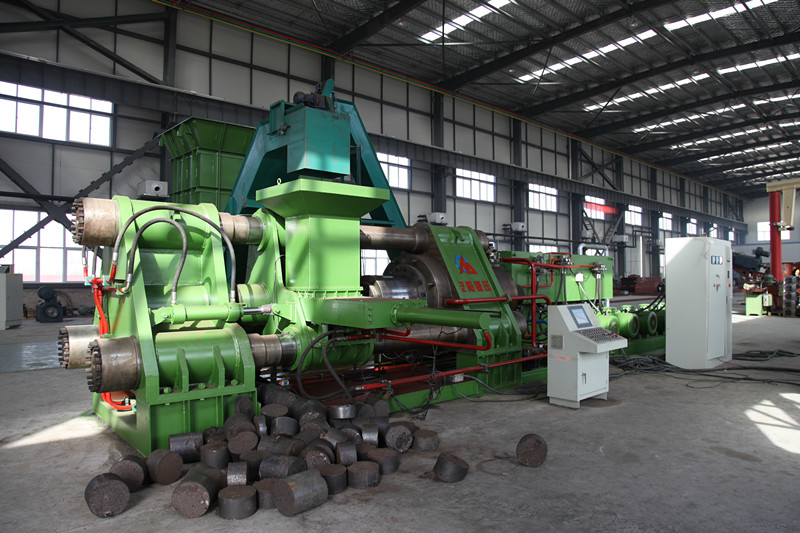

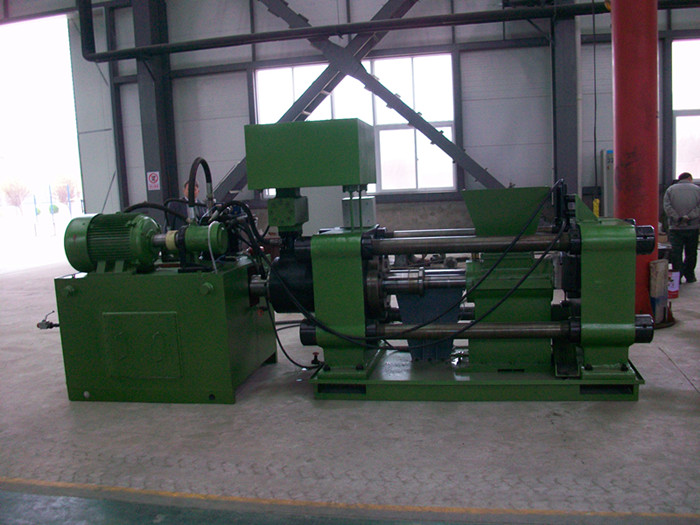

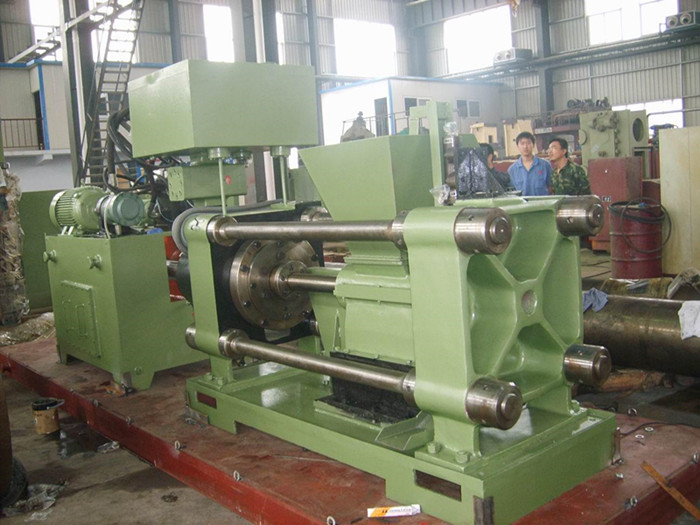

Y83 series briquetting press(horizontal type) | |||||
Model | Y83-160 | Y83-230 | Y83-300 | Y83-850 | Y83-1000 |
Nominal Force (KN) | 1600 | 2300 | 3000 | 8500 | 10000 |

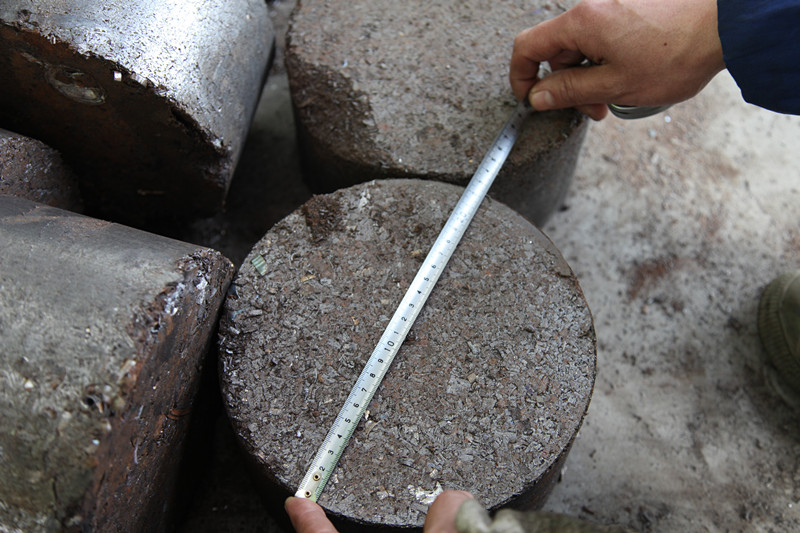

Block size (mm) | ¢90x(60-110) | ¢110x(70-120) | ¢120x(70-120) | ¢180x(165-180) | ¢220x(200-250) |
Block density (KG/m3) | ≥5200-5400 | ≥5200-5400 | ≥5200-5400 | ≥5200-5400 | ≥5200-5400 |
Work pressure (Mpa) | 16 | 23 | 21 | 25 | 25 |
Production Rate (Cast lron chip) (t/h) | 0.6-0.9 | 1.0-1.5 | 1.2-1.8 | 6-7.5 | 8.5-12 |
Total Power (Kw) | 24.2 | 39.2 | 47.2 | 185 | 225 |
Weight(Kg) | 6000 | 7500 | 8800 | 50000 | 60000 |
Outside Size (mm) | 4100x1086x2006 | 4100x1086x2006 | 5000x1600x2600 | 12000x1400x2600 | 15000x1600x2600 |
YA83 series briquetting press (vertical type) | ||||||||
Model | ID of main cylinder(mm) |
Block size(mm) | Density of block (t/m3) |
Weight of per piece(kg) |
Pieces per minute |
Output rate per shift(ton) |
Power (kw) |
Note |
YA83-150 | φ250 | φ80×(60~80) | ≥5 | 2~2.5 | 5 | 3~4 | 15 | Manual |
YA83-200A | φ280 | φ80×(60~80) | ≥5 | 2.5~3 | 5 | 4~6 | 15 | Manual |
YA83-200B | φ280 | φ80×(60~80) | ≥5 | 2.5~3 | 5 | 4~6 | 15 | PLC |
YA83-250 | φ320 | φ90×(60~80) | ≥5.2 | 2.5~3 | 5 | 5~8 | 18.5 | PLC |
YA83-315 | φ360 | φ(90~120)×(60~100) | ≥5.5 | 3~4 | 5~6 | 8~12 | 30 | PLC |
YA83-360 | φ400 | φ(100~130)×(60~100) | ≥5.5~6 | 3~4.5 | 5~6 | 8~14 | 30 | PLC |
YA83-500 | φ450 | φ(110~140)×(80~120) | ≥5.5~6 | 4~8 | 4~5 | 12~16 | 37 | PLC |
YA83-630 | φ520 | φ(140~160)×(80~150) | ≥5.5~6 | 6~10 | 4~5 | 16~20 | 45 | PLC |
