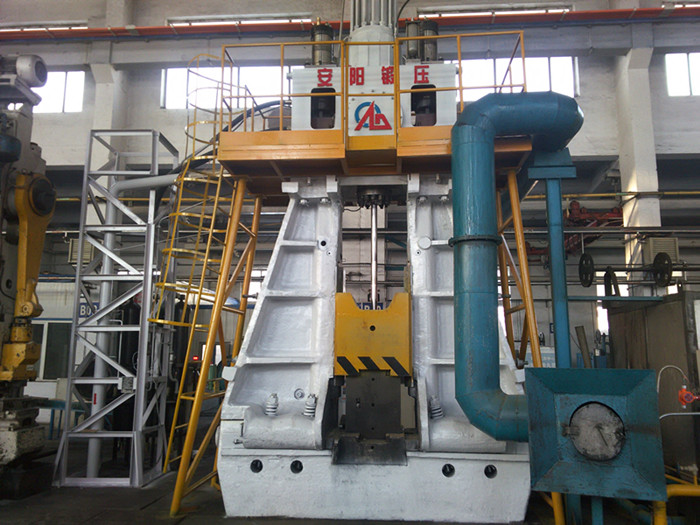

Hydraulic Closed Die Forging Hammer

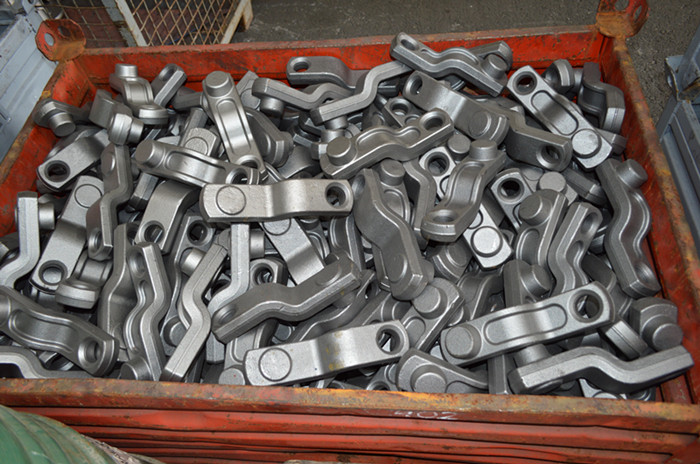

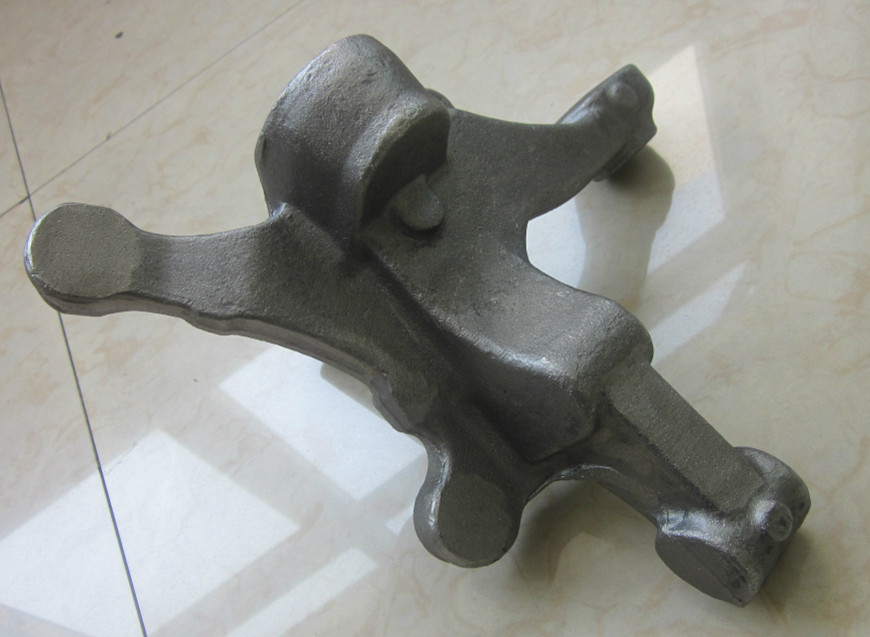

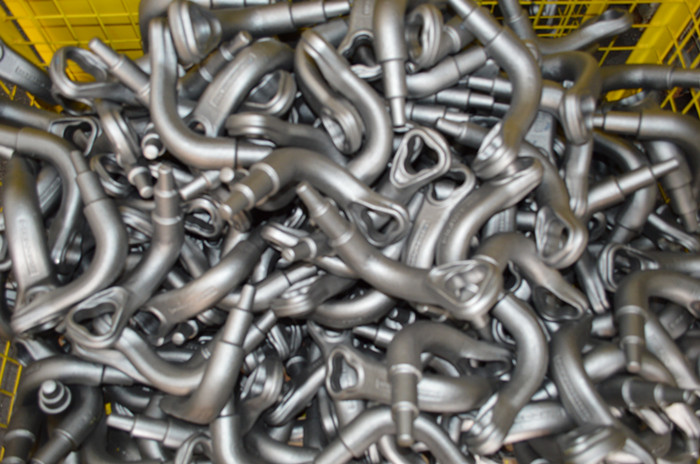

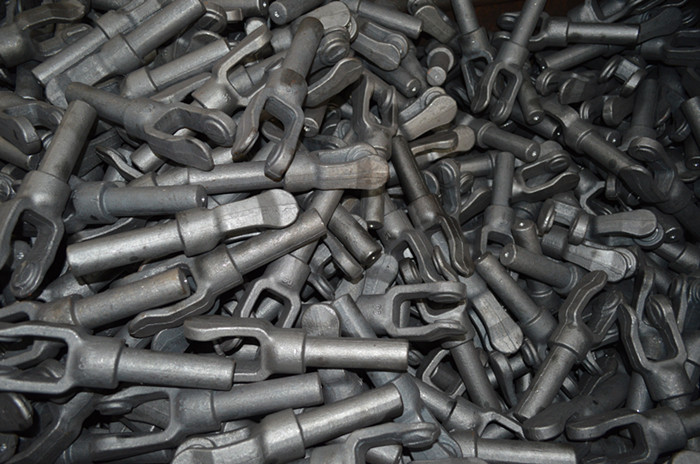

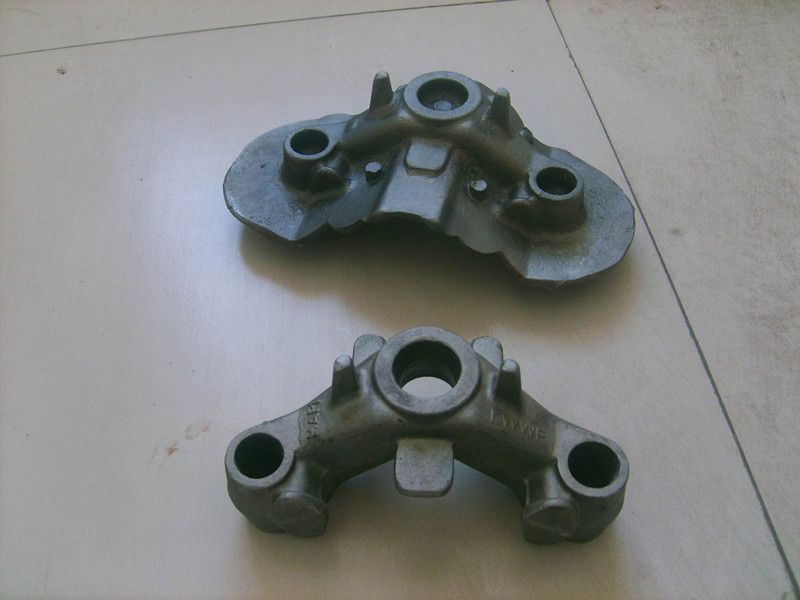

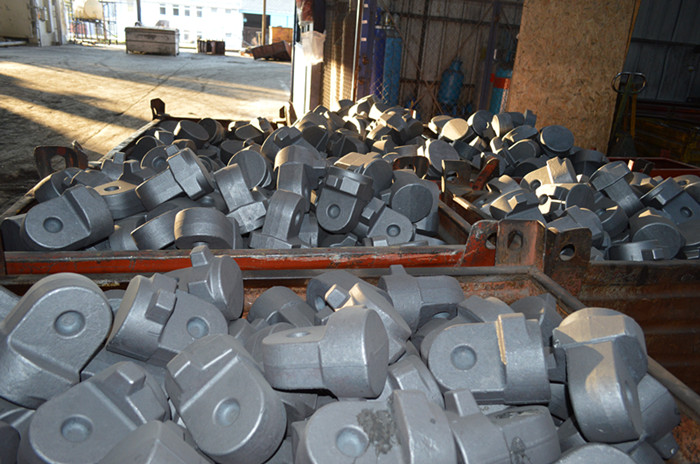

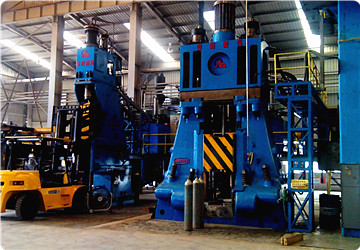

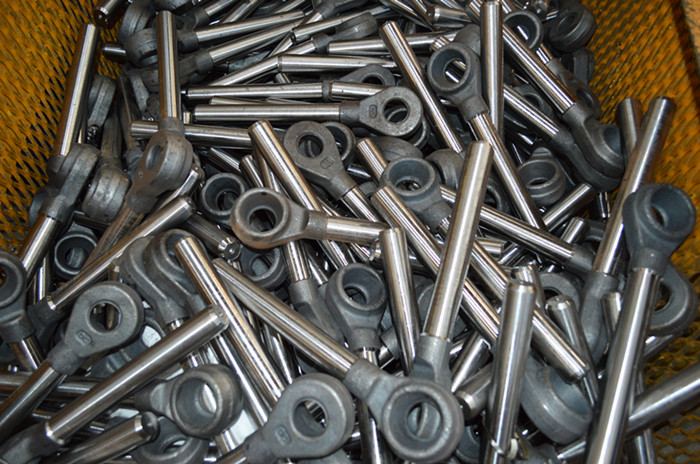

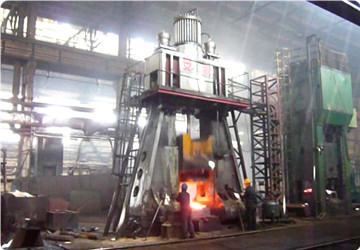

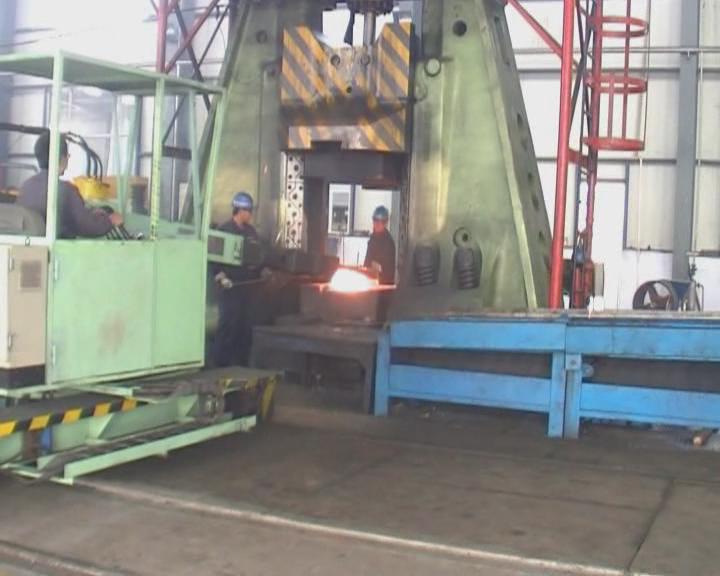

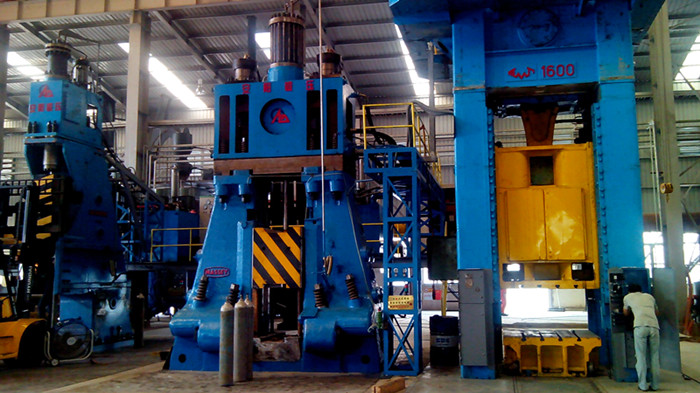

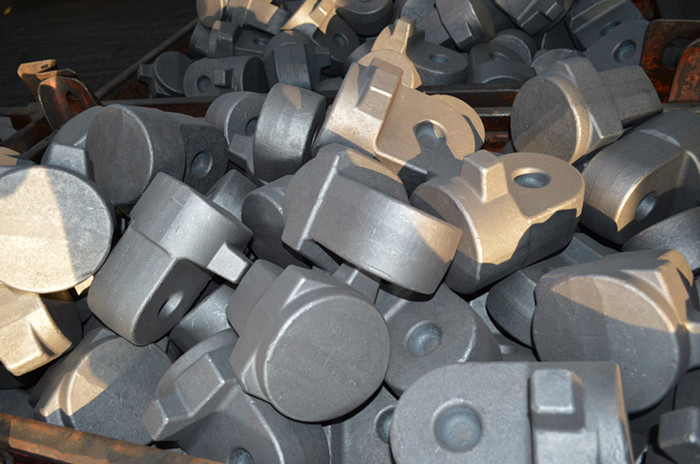

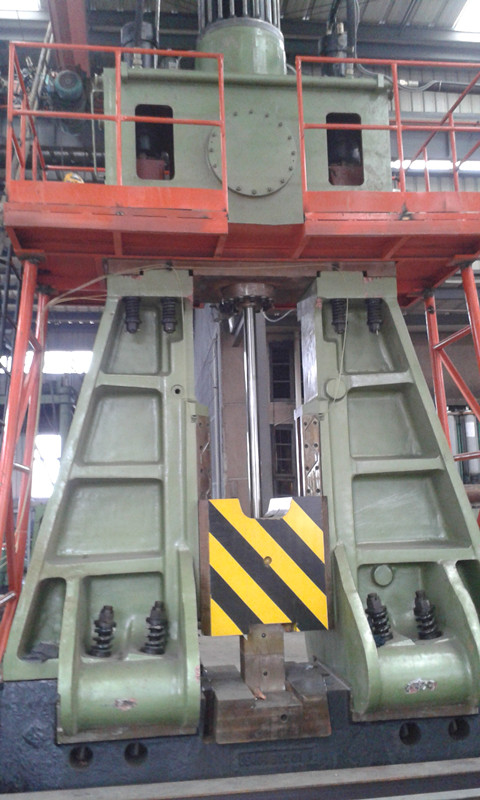

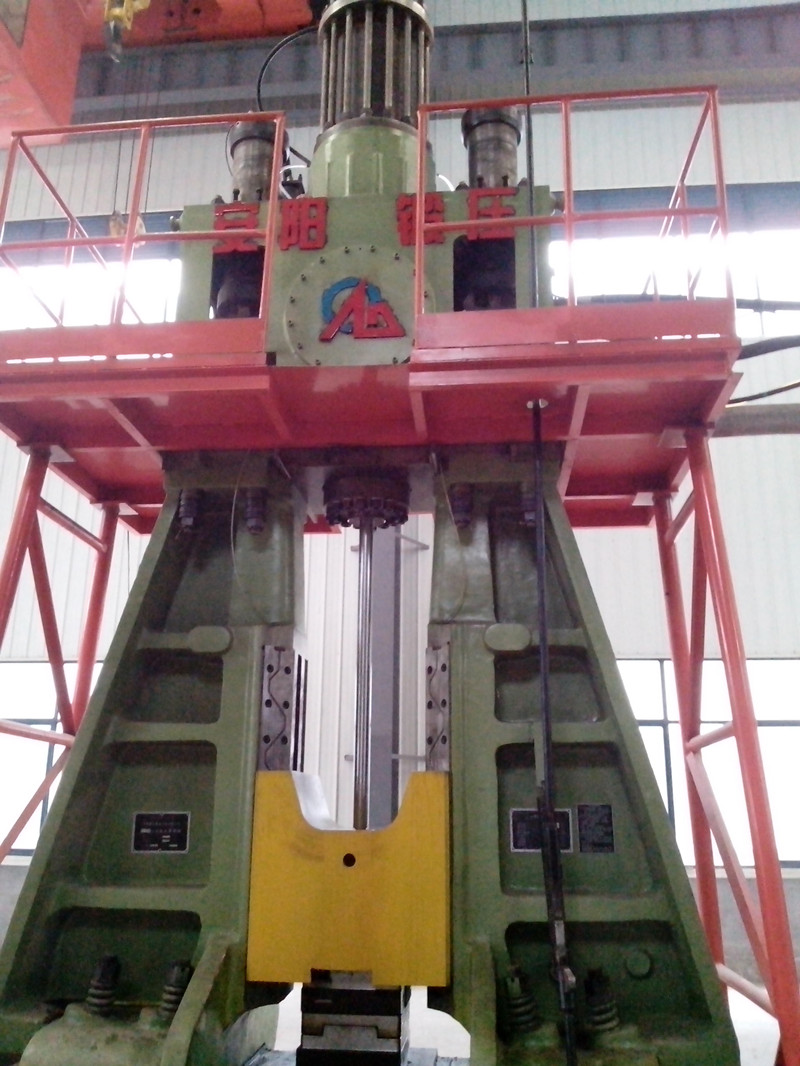

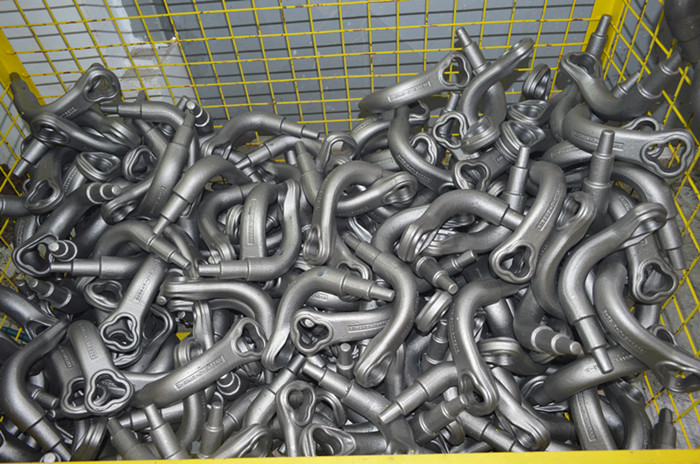

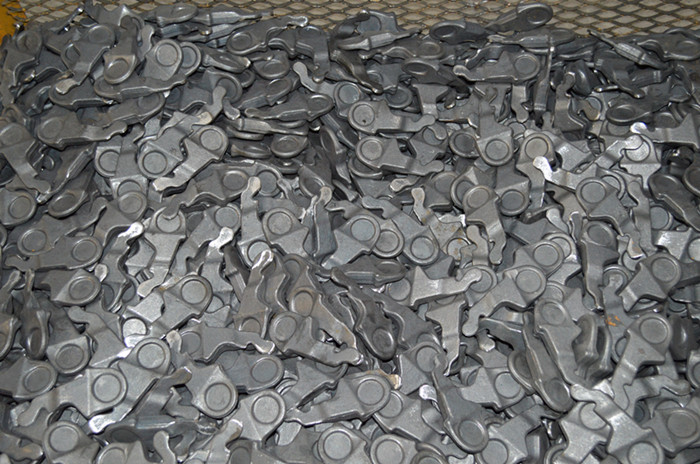

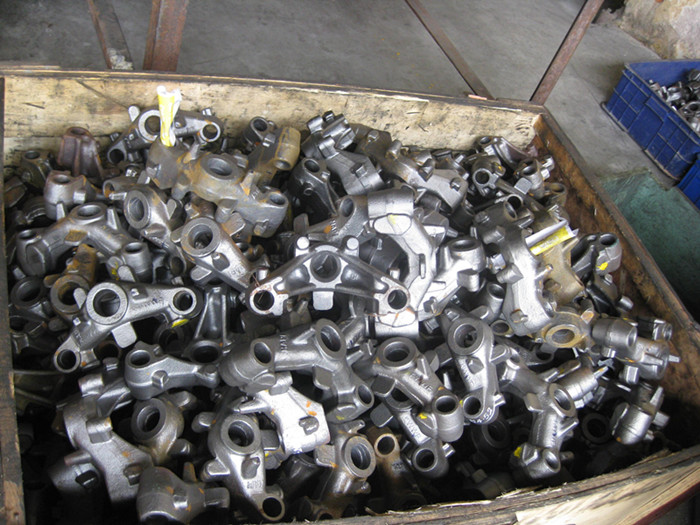

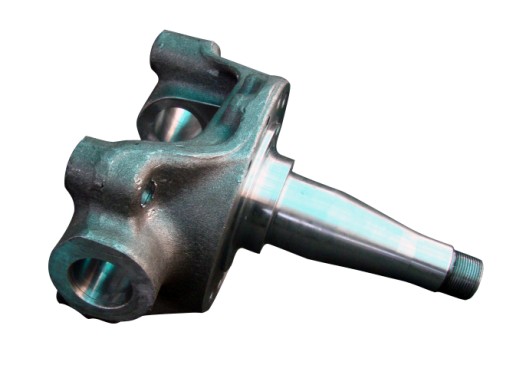

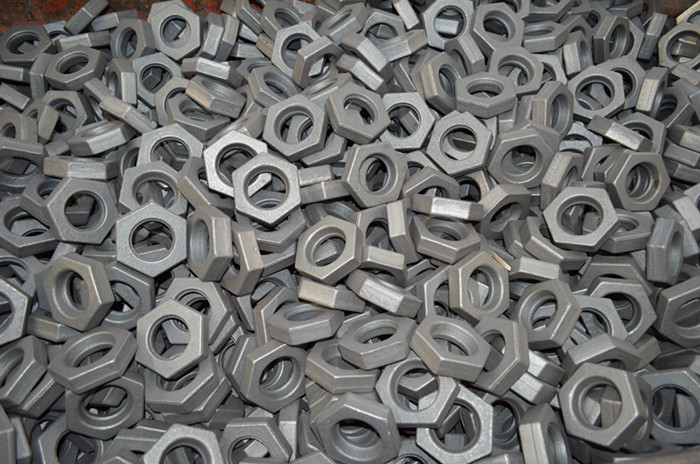

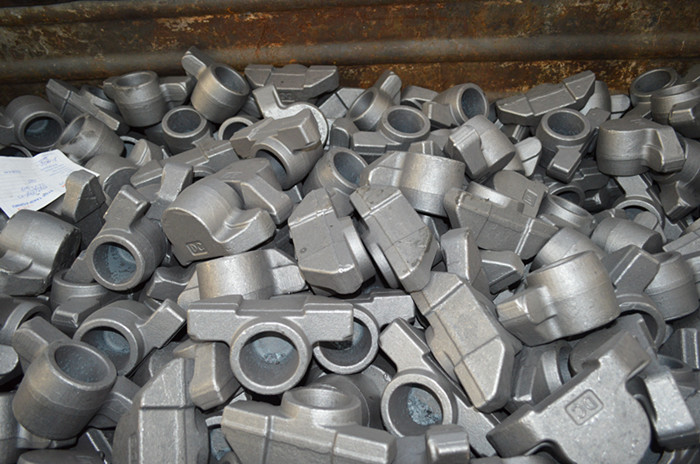

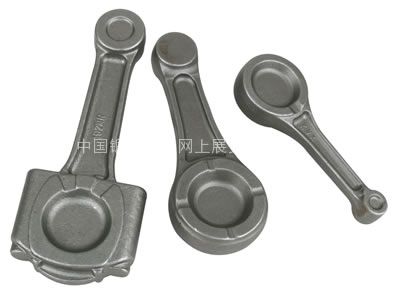

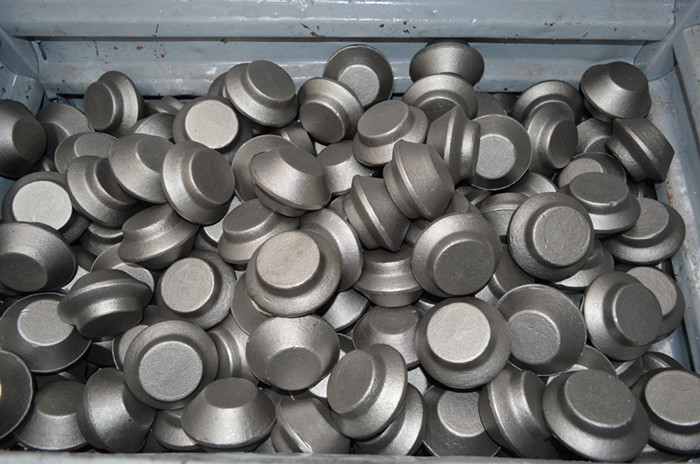

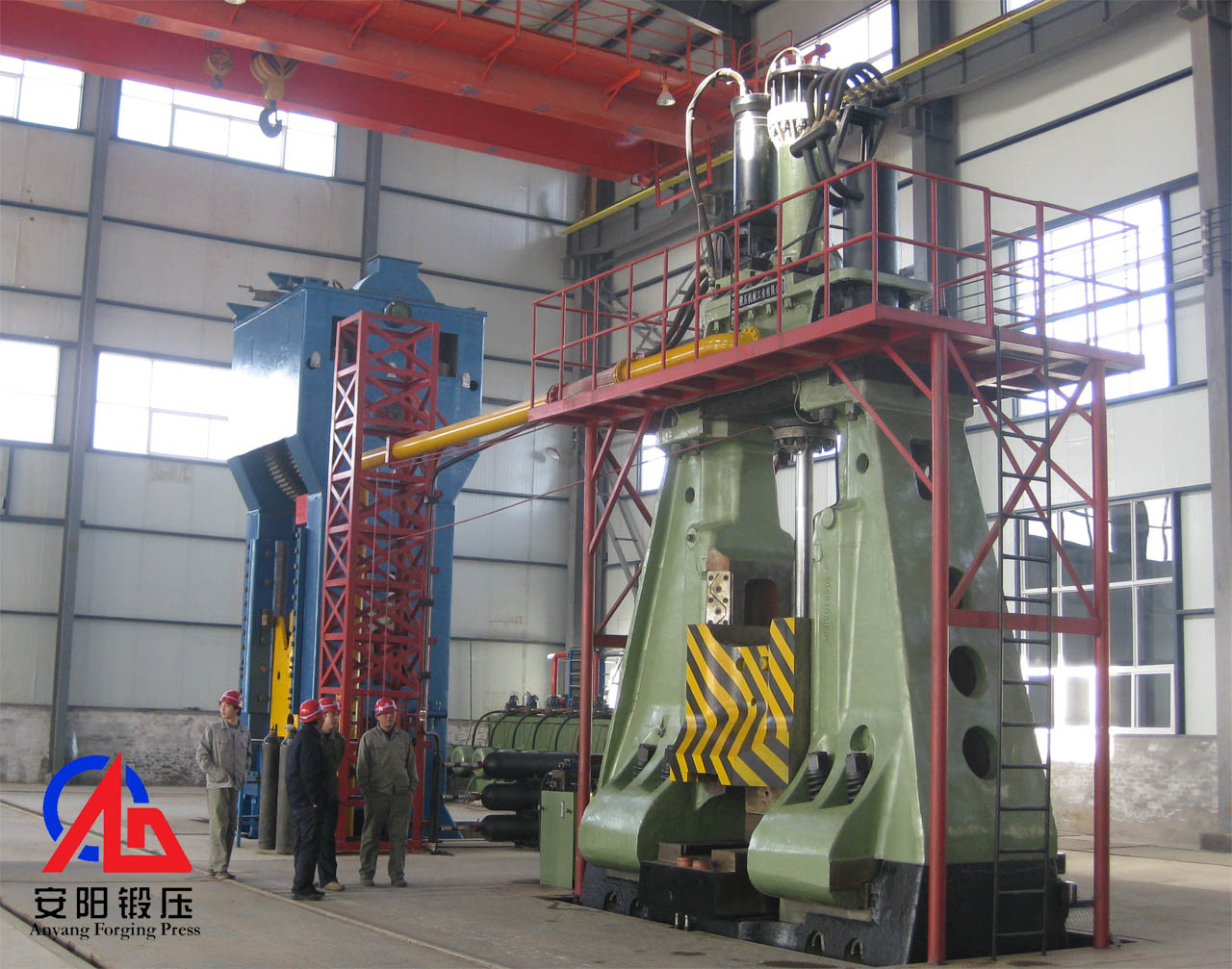

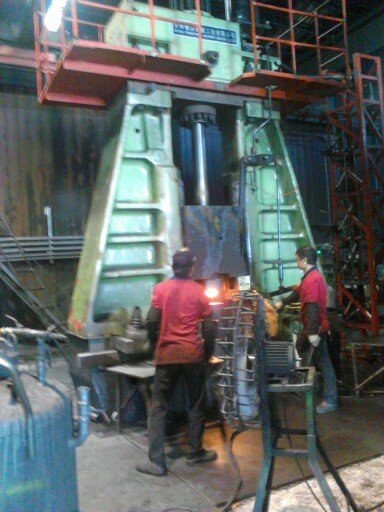

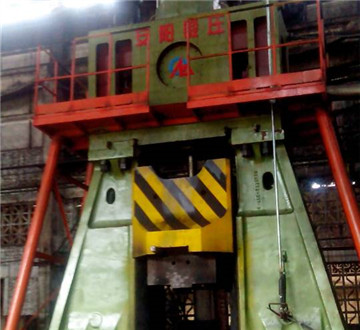

Hydraulic closed die forging hammer includes Electro hydraulic closed die forging hammer and Fully hydraulic closed die forging hammer, both are mainly applied in batches production of all kinds of die forgings,such as automobile forgings,tractor forgings,agricultural equipment forgings, oil and gas industry die forgings, electrical power station die forgings and industrial forgings.

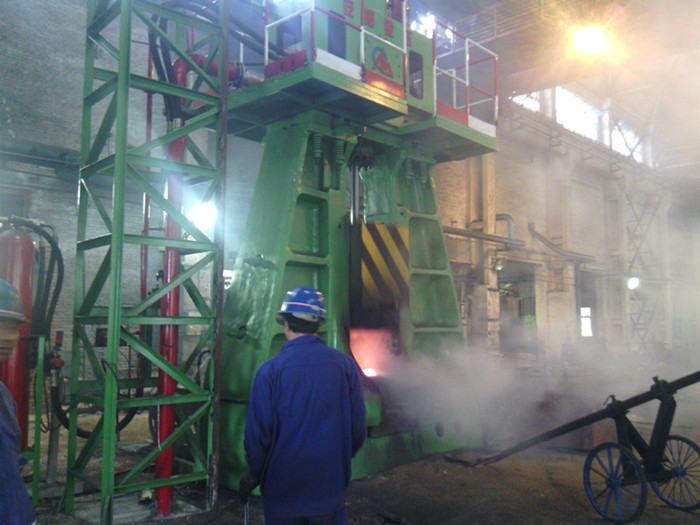

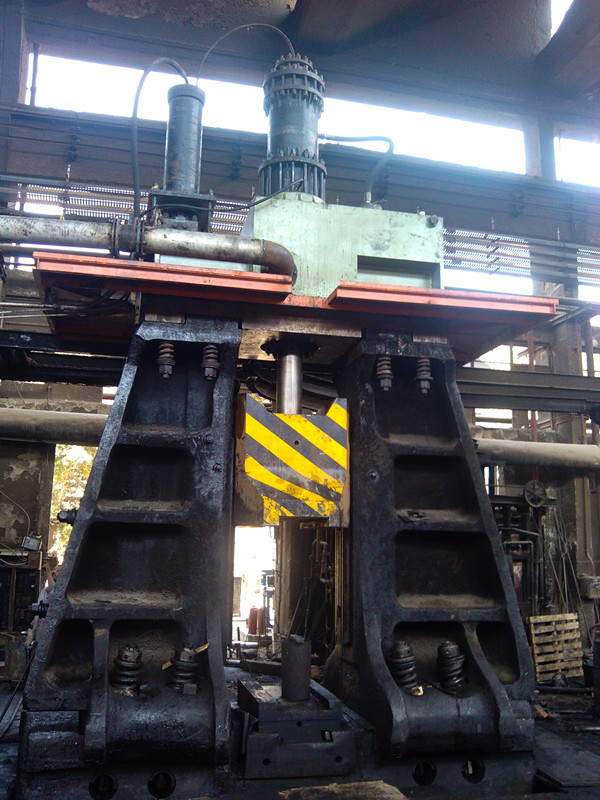

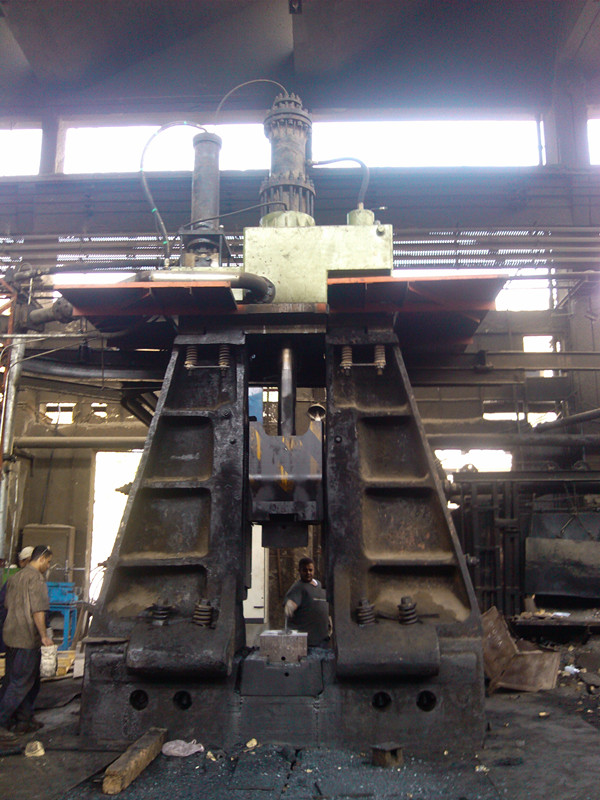

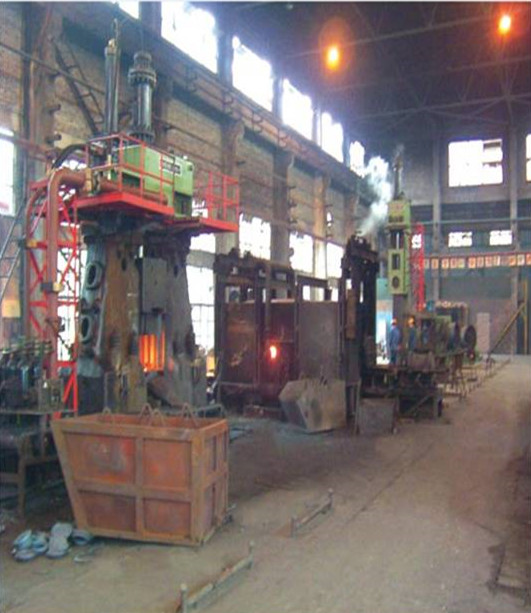

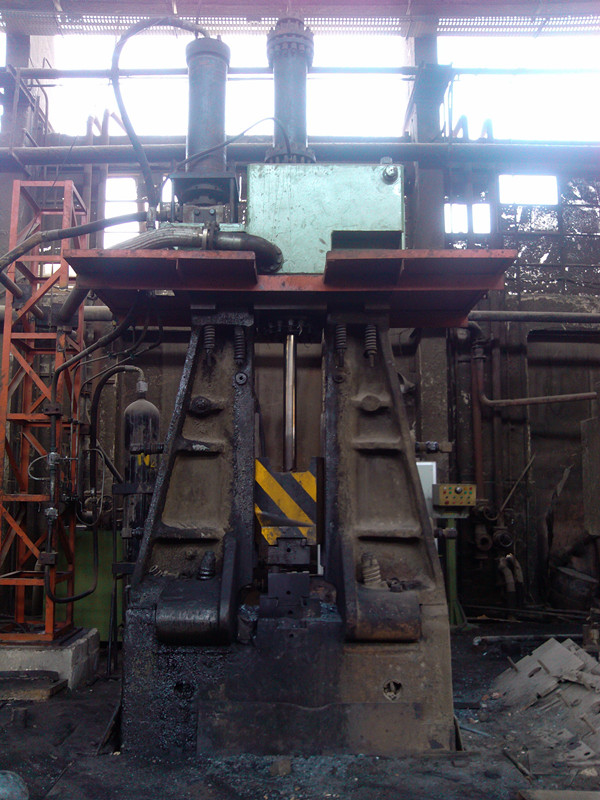

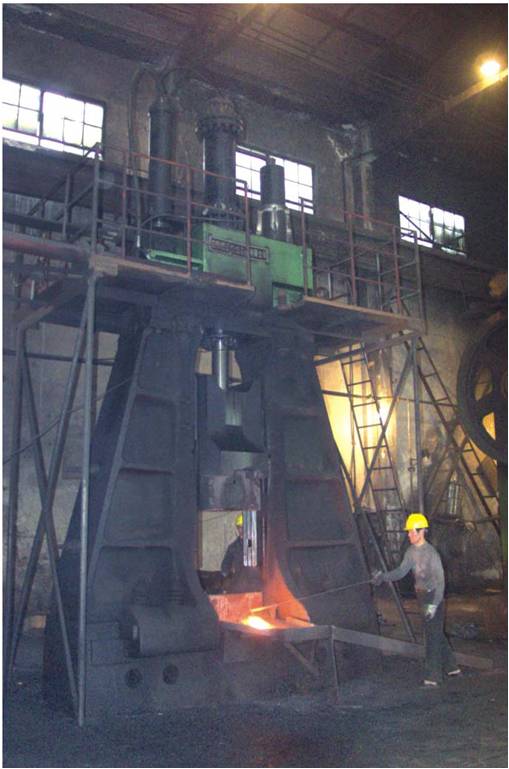

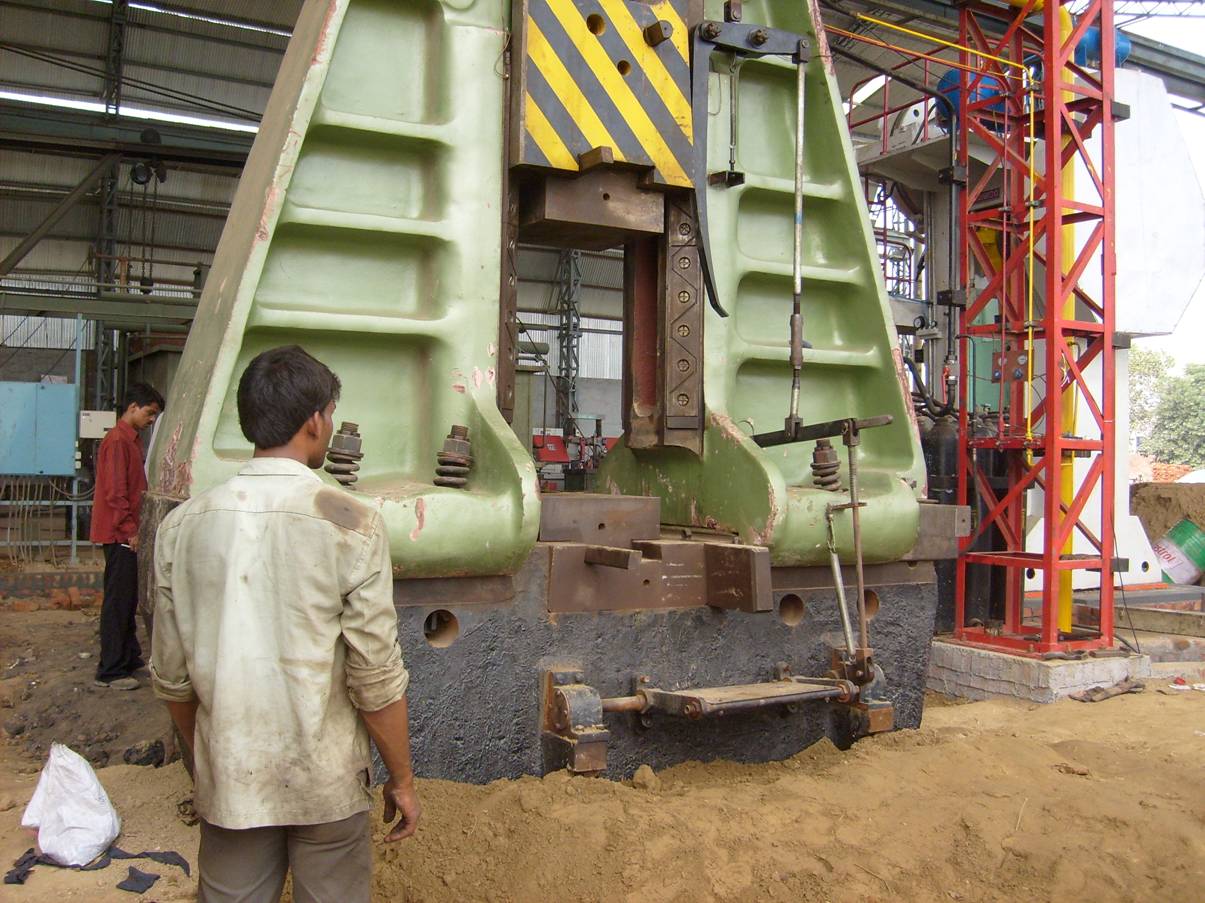

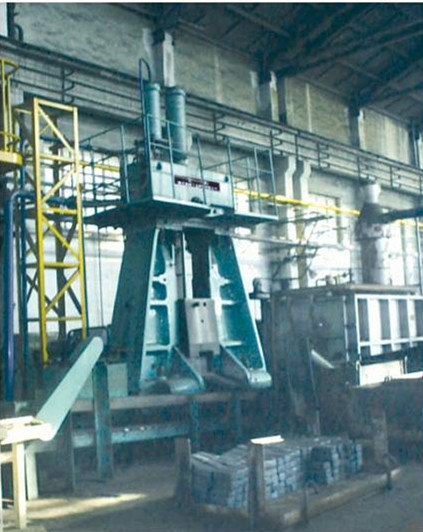

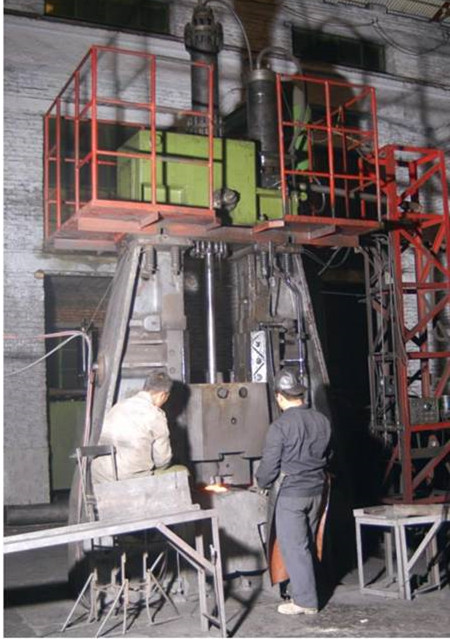

Anyang Forging Press company can convert the old steam hammer, blet drop hammer, Huta Zygmunt hammer into hydraulic forging hammer.

Buy hydraulic die forging hammer or Conversion of Hydra-pneumatic Hammer, please send email to info@chinesehammers.com

  • Parameters

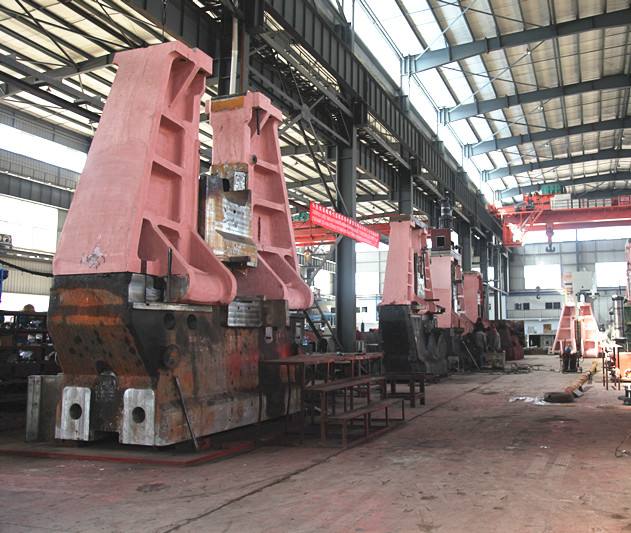

  • Manufacturing
  • Video
  • Customer
  • Application Fields
  • Download

Parameters

Item Unit C86-25
(1T)
C86-50
(2T)
C86-75
(3T)
C86-125
(5T)
Max. hitting energy KJ  25 50 75 125
Weight of falling parts kg  1500 2500 3500 6000
Max. stroke mm  1000 1200 1250 1300
Hit frequency min-1  55-65 55-65 50-60  45-55
Main motor power kw 45 45 55 55
Number of motor set  2 3 3 4
Electric-cooler type type YLD400 YLD600 YLD800 YLD1200
Electric-cooler capacity Kcal/h 40000 60000 80000 120000
Electric-cooler power kW 19 38 38 60
Guide space  mm 540 600 700 740
Min. die height
(without
dovetail)
mm 220 260 350 400
Machine outside size
(LxWxH)
mm 2400x1400x6000 3000x1700x6500 3200x1800x7100 3700x2100x8600
Oil tank outside size
(LxWxH)
mm 2000x1500x1300 2700x2000x1600 2700x2000x1600 3600x2000x1600
Item Unit C86-150
(6T)
C86-200
(8T)
C86-250
(10T)
C86-400
(16T)
Max. hitting energy KJ  150 200 250 400
Weight of falling parts kg  7000 8600 10500 16300
Max. stroke mm  1350 1350 1400 1500
Hit frequency min-1  45-55 40-55 30-40 30-40
Main motor power kw 55 55 55 75
Number of motor set  5 5 6 8
Electric-cooler type type YLD1200 YLD800x2 YLD800x2 YLD1000x2
Electric-cooler capacity Kcal/h 120000 80000x2 80000x2 100000x2
Electric-cooler power kW 60 38x2 38x2 54x2
Guide space  mm 800 900 1000 1200
Min. die height
(without
dovetail)
mm 430 430 450 500
Machine outside size
(LxWxH)
mm 3800x2300x9200 4300x2700x11200 4400x2700x12000 4500x2600x13100
Oil tank outside size
(LxWxH)
mm 4500x2000x1600 4500x2000x1600 5400x2000x1600 7200x2000x1600

If you have any questions about the type or specification of our electro hydraulic die forging hammer or fully hydraulic die forging hammer, please send email to info@chinesehammers.com

Customer service : 0086-372-3389658 Email: info@chinesehammers.com
