Pneumatic Forging Hammer

Location：HOME >> Pneumatic Forging Hammer

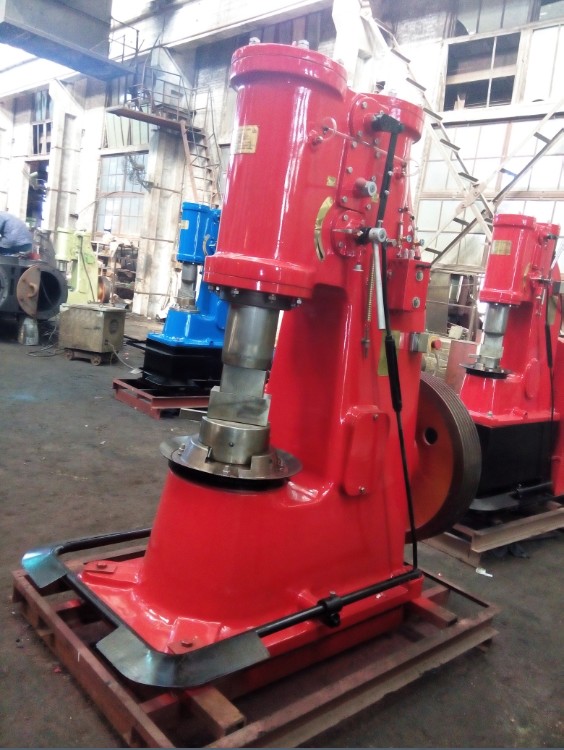

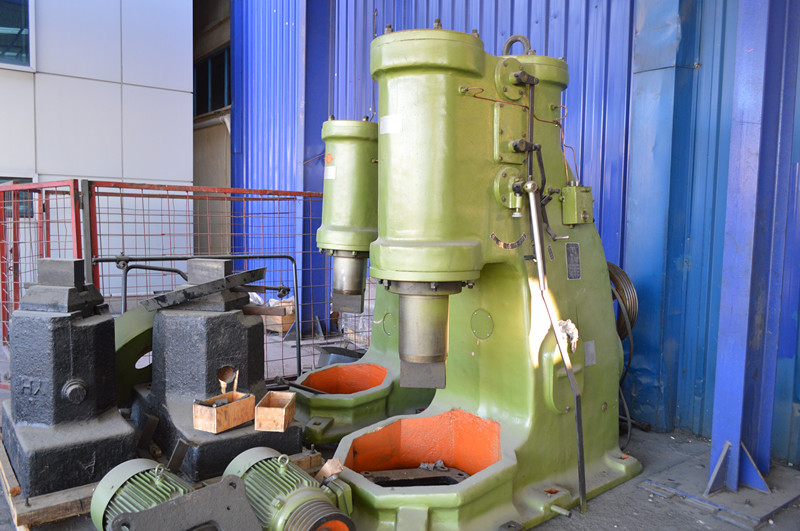

Pneumatic Forging Hammer

Features:

1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.

Parameters

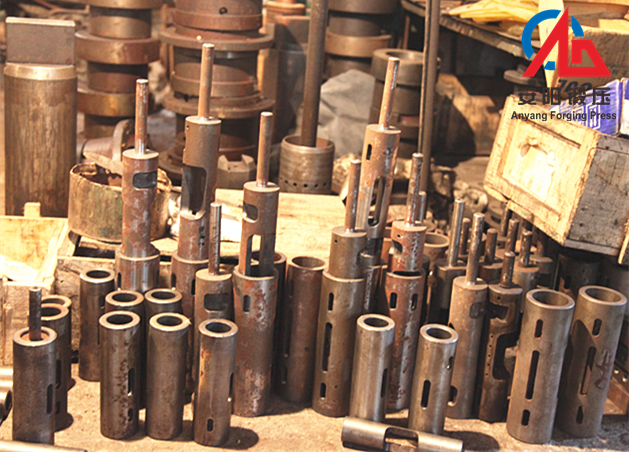

Manufacturing
Video
Customer
Application Fields
Download

Parameters

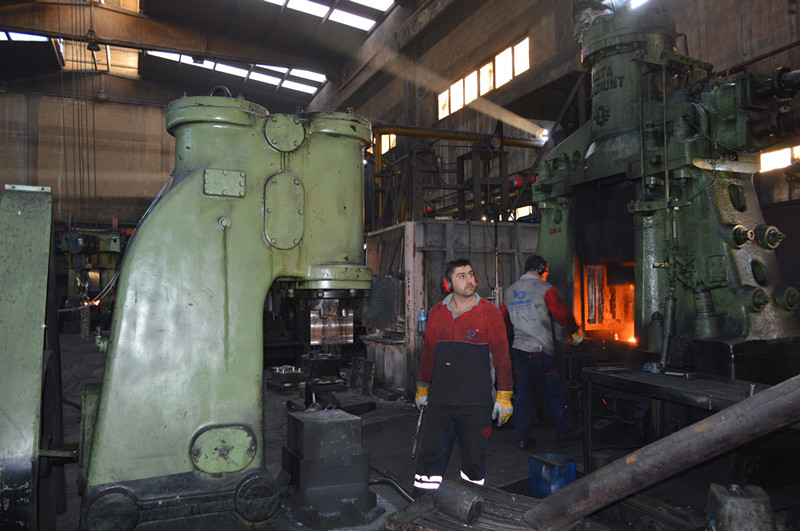

Our pneumatic forging hammer from 9kg to 110kg are widely used by blacksmith to do art forging, from 150kg to 2000kg are widely used in the industrial forging.
Pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.

**Anyang Pneumatic forging hammer parameters**
Model		C41-150	C41-250	C41-400	C41-560	C41-750	C41-1000	C41-2000
Weight of falling parts(kg)		150	250	400	560	750	1000	2000
Hitting energy (kj)		2.5	5.6	9.5	13.7	19	27	54
Hitting frequency(min-1)		180	140	120	115	105	95	80
Height of working area(mm)		370	450	530	600	670	800	1000
Depth of throat(mm)		350	420	520	550	750	800	950
Working Piece	Square(mm*mm)	130×130	145× 145	220× 220	270× 270	270× 270	290× 290	350× 350
Working Piece	Round(mm)	Φ145	Φ175	Φ240	Φ280	Φ300	Φ320	Φ400
Motor	Model	Y180M- 4-B3	Y180L- 4-B3	Y200L- 4-B3	Y280S- 6-B3	Y280M- 6-B3	Y315S- 6-B3	Y315L2- 6-B3
Motor	Power (kw)	18.5	22	30	45	55	75	132
Weight	Without anvil(kg)	3260	5000	8000	9800	17000	20000	48000
Outside size (mm)		680× 420× 850	700× 450× 980	1100× 500× 1300	1400× 600× 1500	1300× 700× 1600	1480× 800× 1853	1900× 1070× 2382

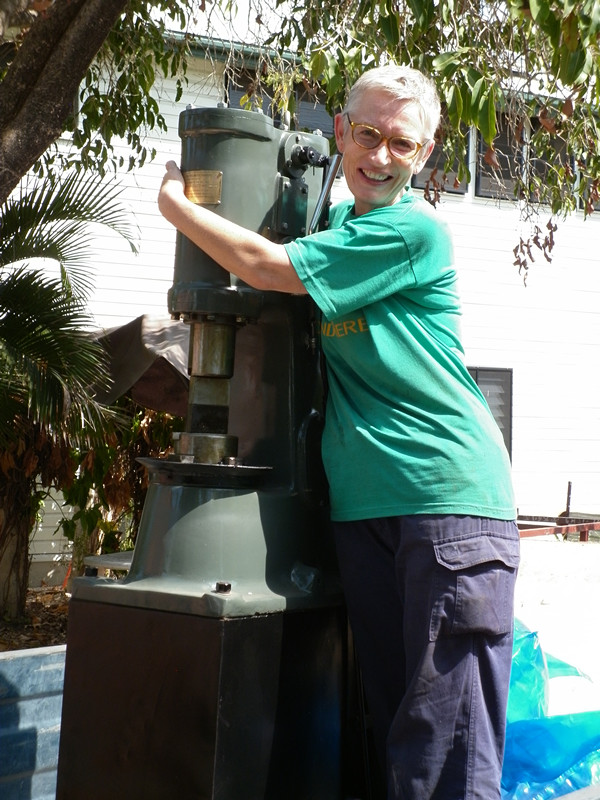

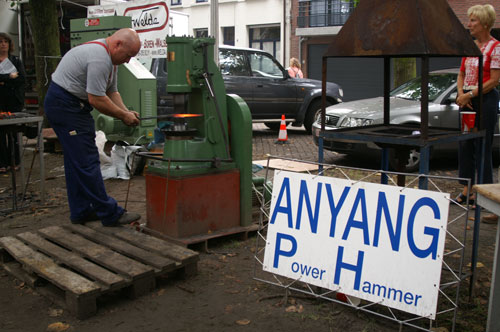

[Introduction of blacksmith power hammer]

1, Anyang pneumatic forging hammer do not need out-side air compressor. will compress air inside with motor driven flywheel.
2, Anyang power hammer save place in the workshop, no need do special foundation.

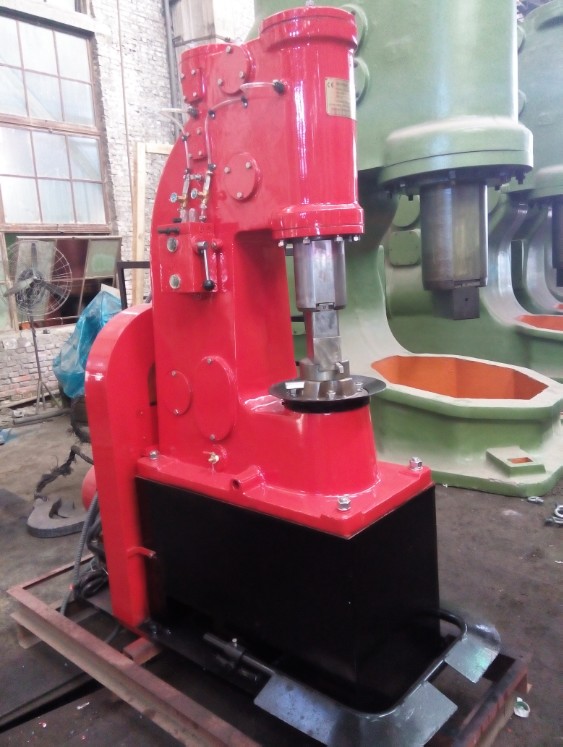

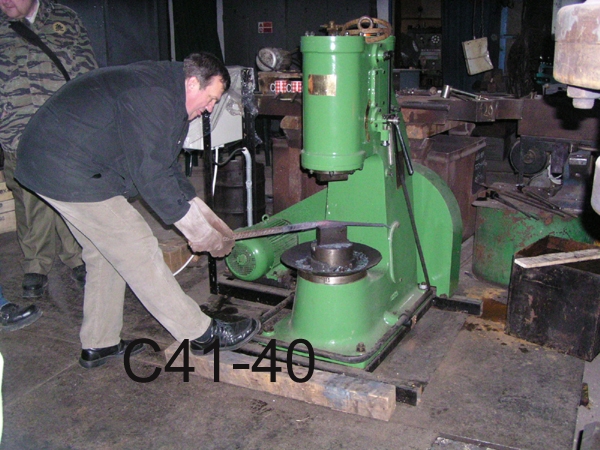

3, Blacksmith power hammer ( C41-9, C41-15,C41-25,C41-40,C41-55,C41-75,C41-110 ) has SINGLE FRAME and good for forging work handling.
4, Anyang power hammer is able to with high speed continuous strokes and good for titanium and other special alloy material free forgings.

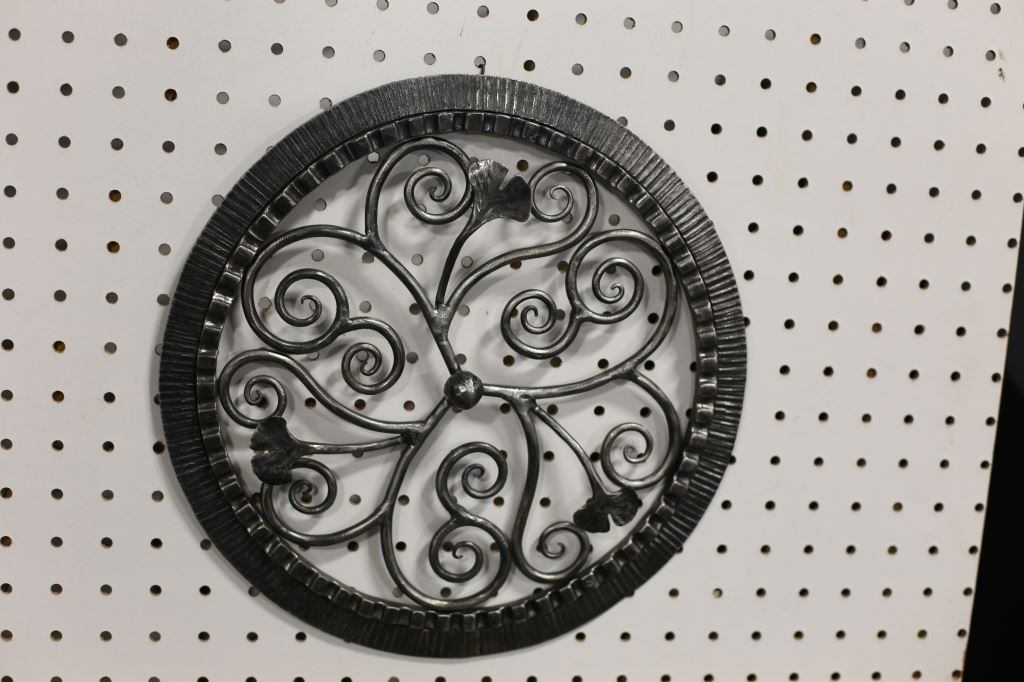

5, Anyang power hammer good for making work handling tools for forging operation, forged hunting knives, scissors, general operational tools, farm implements and iron art parts for house gate & fence.

6, All anyang power hammers have got CE.

**Anyang Power Hammer (for blacksmith) parameters**
Model		C41-9	C41-15	C41-25	C41-40	C41-55	C41-75	C41-110
Weight of falling parts(kg)		9	15	25	40	55	75	110
Hitting energy(kj)		0.09	0.16	0.27	0.53	0.7	1	1.98
Hitting frequency(min-1)		245	245	250	245	230	210	180
Height of working area(mm)		135	160	240	245	270	297	355
Depth of throat(mm)		120	140	200	235	270	280	400
Working Piece	Square(mm*mm)	25×25	30×30	40×40	52×52	60×60	65×65	110×110
Working Piece	Round (mm)	Φ30	Φ35	Φ48	Φ68	Φ75	Φ85	Φ120
Motor	Model	Y90L-4-B3	Y100L1-4	Y132S1-6	Y132M1-6	Y132M2-6	Y160M -6	Y180L-6
Motor	Power(kw)	1.5	2.2	3	4	5.5	7.5	15
Weight	Without anvil(kg)	250	270	720	860	1300	2500	3300
Outside size(mm)		680× 420× 850	700× 450× 980	1100× 500× 1300	1400× 600× 1500	1300× 700× 1600	1480× 800× 1853	1900× 1070× 2382
