Billet Precision Cutting Machine

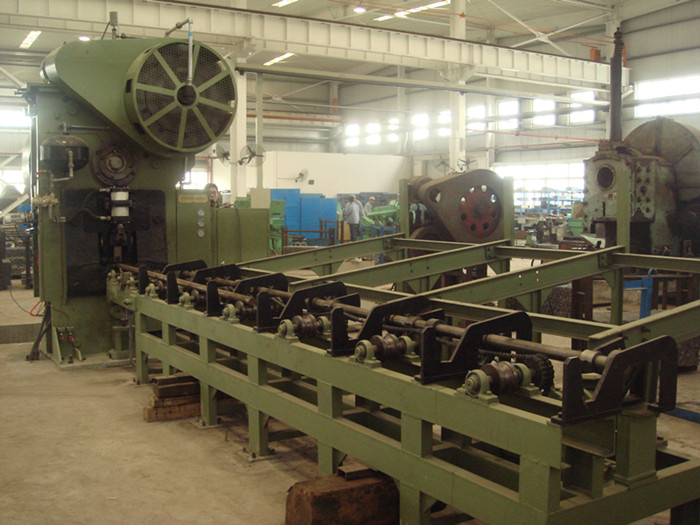

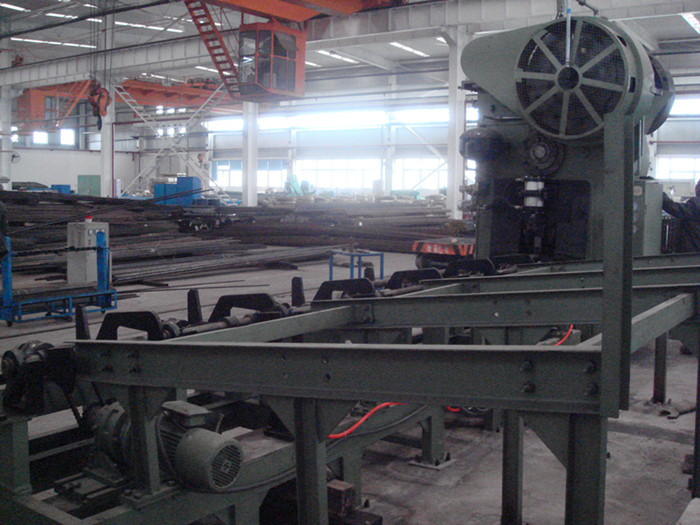

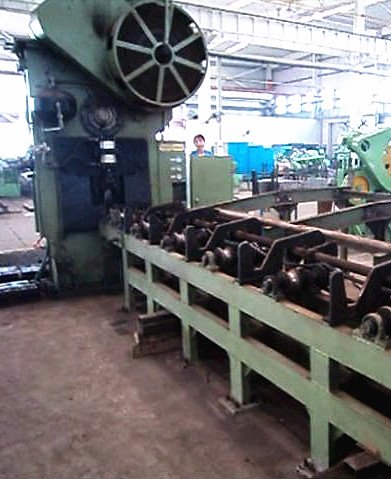

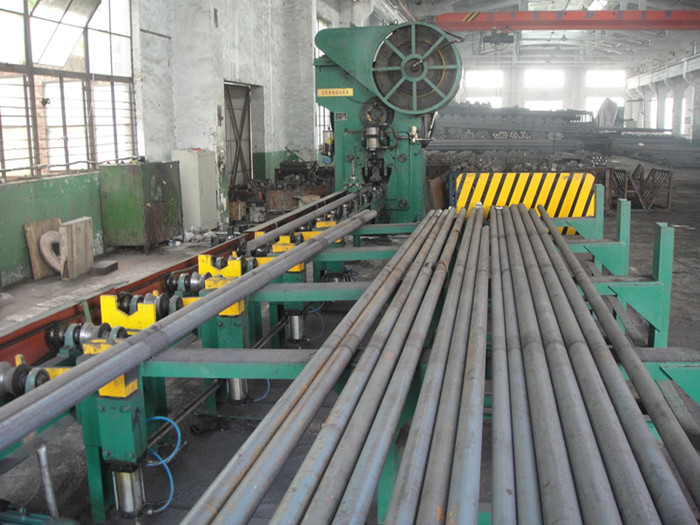

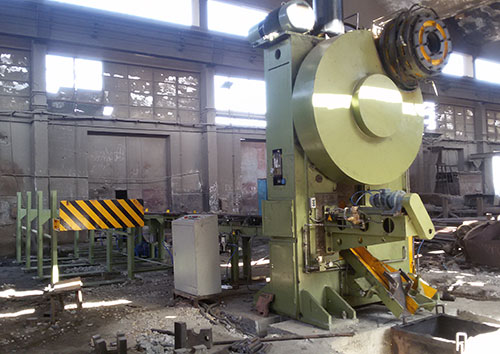

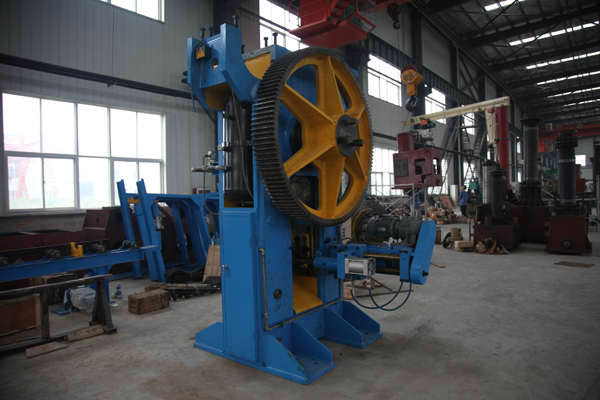

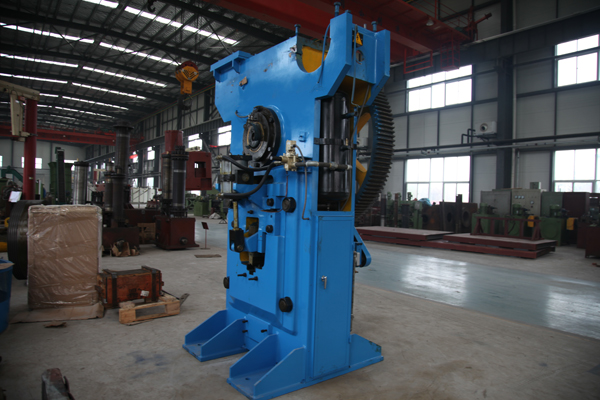

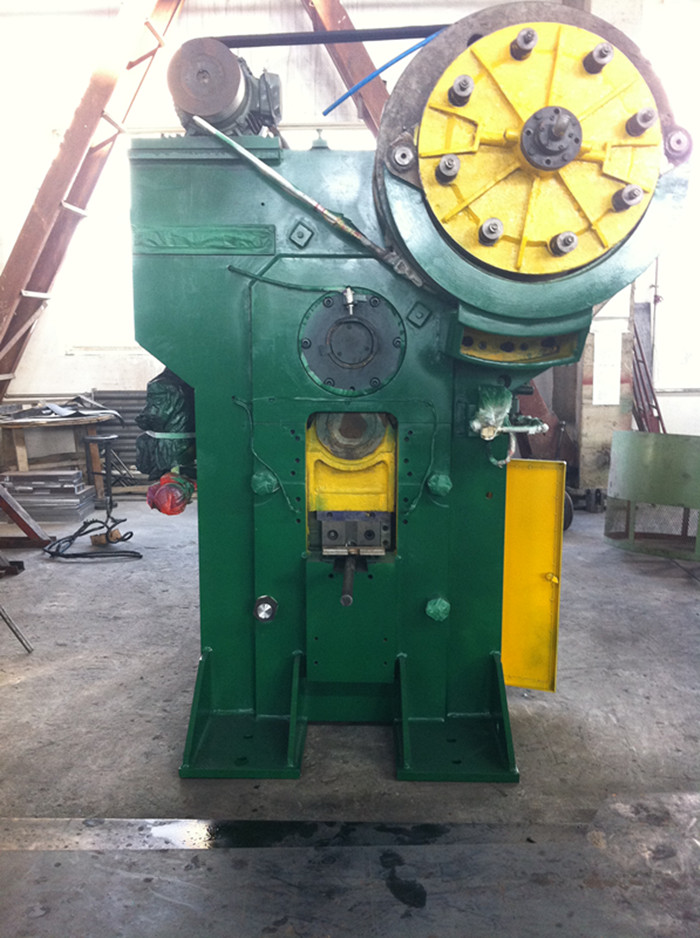

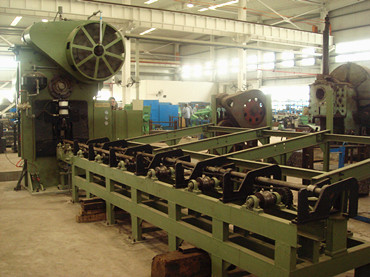

Billet cutting machine(billet shearing machine) is a kind of cold shearing machine, which is used to cut steel bar for the closed die forging production line. With PLC control, automatic feeding, automatic cutting , automatic counting, automatic lubrication and overloading protection .

Features:

1. PLC control

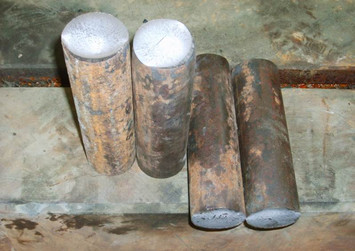

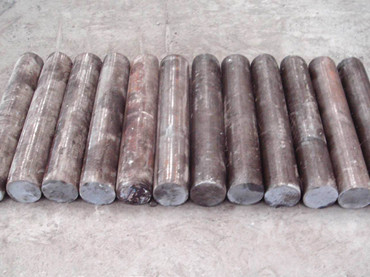

2. Section slope <=3 °; weight error within 0.5%
3. High efficiency cutting
4. Safety working
5. Energy saving
6. Low noise
7. Reliable operation and easy maintenance

Parameters
Manufacturing
Video
Customer
Application Fields
Download

Parameters

Item	Unit	Q42-200	Q42-300	Q42-400	Q42-500
Pressing force	KN	2000	3000	4000	5000
Cutting frequency	Num.	50	30	40	20
Stroke length	mm	70	80	90	110
Material tensile strength	MPa	600	600	600	600
Cutting diameter	mm	25-55	25-75	30-85	30-110
Cutting length	mm	50-300	50-300	50-300	50-300
Required air pressure	MPa	0.5	0.5	0.5	0.5
Main motor power	KW	18.5	22	30	45
Machine weight	Ton	11	14.5	17.7	22.5
