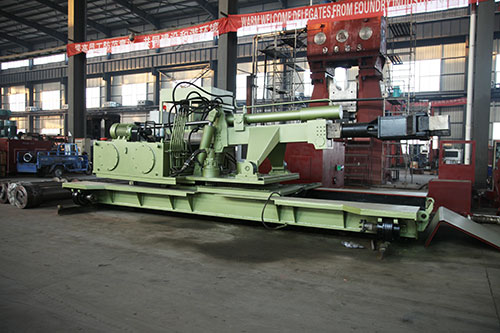

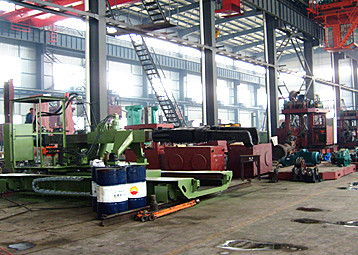

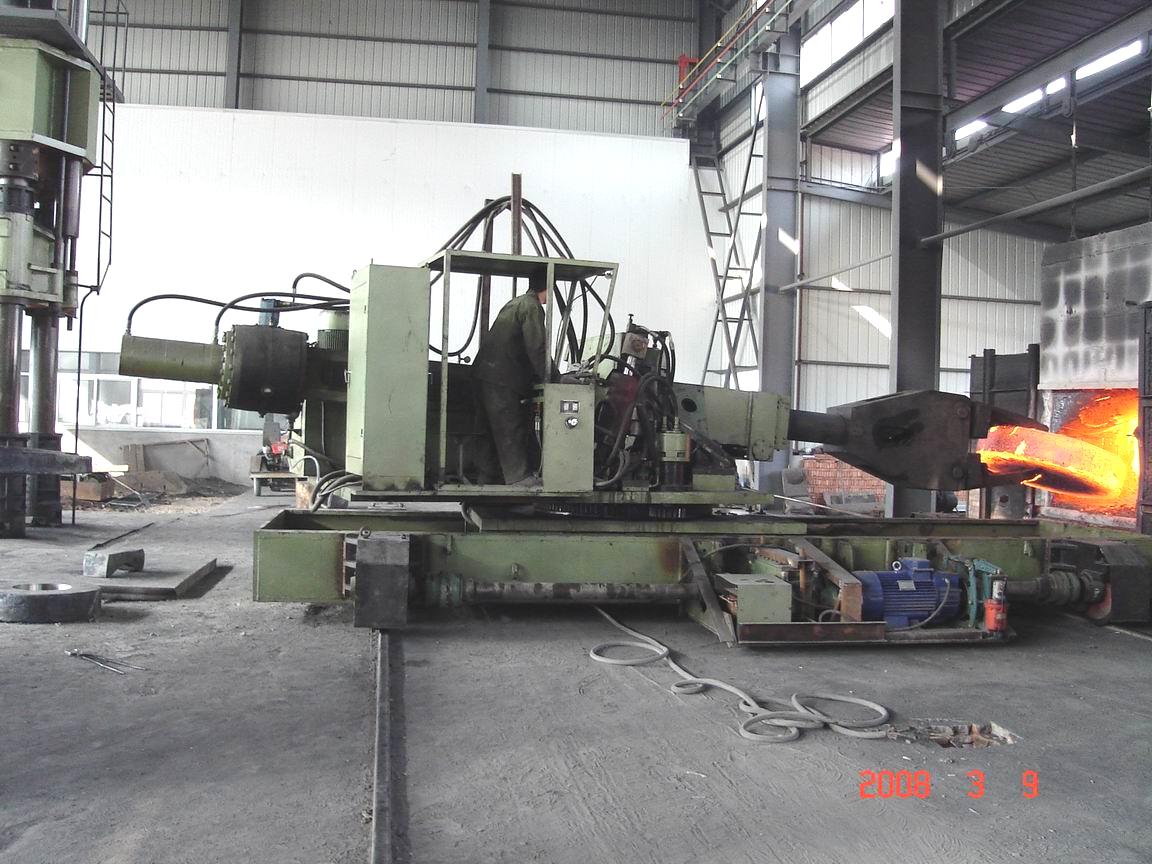

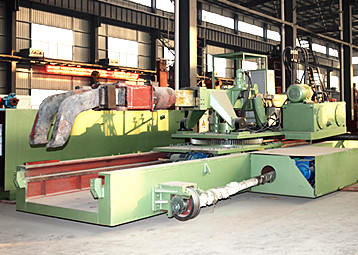

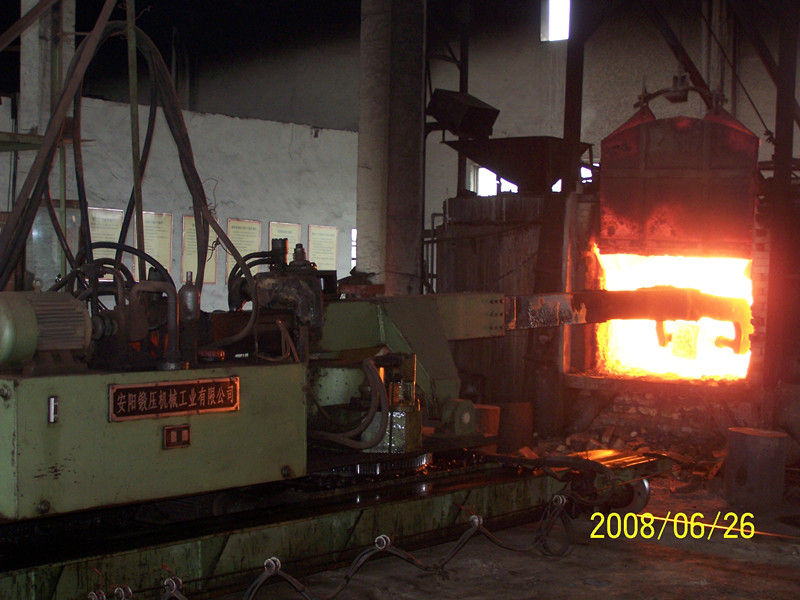

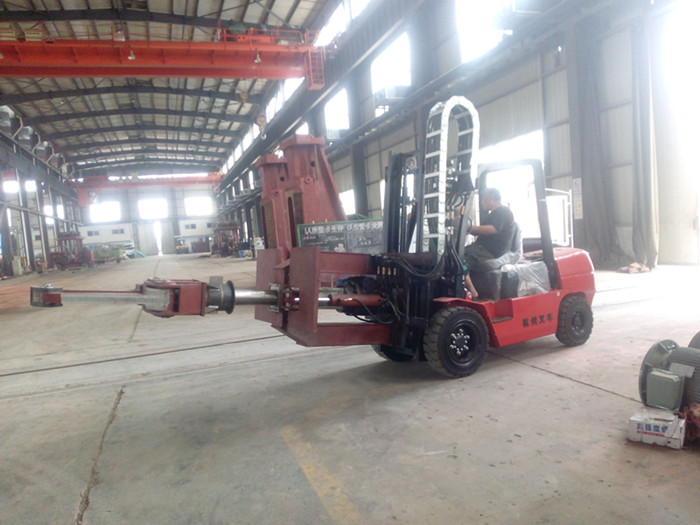

Forging charger is a mechanical-hydraulic mixed type machine.,it is used to transport cold and hot ingots discs and rings in open-die forging plants, ring mills, blooming mills and similar works. According to the types of the manipulative workpiece, they fall into clamp-support type, clamp-hold type, fork type. It can do the functions: manipulator walk,upside of the manipulator turn around, clamp rod flex,clamp rod lifting.
Features:
1. Efficient forging process and high performance.
2. Operational costs will be reduced significantly.
3. Rapid movements with highest precision will be achieved.
4. The quality of the forgings as well as the capacity of the production line can be significantly increased.
Item | Unit | ZHJ-0.6 | ZHJ-1 | ZHJ-2 | ZHJ-3 | ZHJ-4 | ZHJ-5 | ZHJ-8 | ZHJ-10 |
Nominal load weight | ton | 0.6 | 1 | 2 | 3 | 4 | 5 | 8 | 10 |
Holding range | mm | 50-550 | 50-600 | 80-700 | 100-850 | 100-1000 | 100-1000 | 150-1500 | 150-1800 |
Clapmp rod overhang | mm | 1500 | 1800 | 1800 | 210 | 2100 | 2100 | 2300 | 2300 |
Holding height | mm | 1500 | 1600 | 1600 | 1800 | 1800 | 1800 | 2000 | 2000 |
Moving speed of manipulator upside |
m/min | 25 | 25 | 25 | 25 | 20 | 20 | 20 | 15 |
Manipulatormoving speed | m/min | 50 | 50 | 50 | 50 | 50 | 40 | 30 | 20 |
Table framerotating speed | r/min | 4 | 4 | 3 | 3 | 3 | 3 | 2 | 2 |
Workingoil pressure | MPa | 8 | 8 | 8 | 10 | 10 | 12 | 10 | 12 |
Total motorpower | kw | 11 | 15 | 22 | 29.7 | 33.5 | 46.5 | 89 | 130 |
Machine outside size(L×W×H) |
mm | 4500×2200 ×1500 |
4800×2200 ×1550 |
5800×2700 ×1760 |
6700×2650 ×1450 |
7500×3450 ×2650 |
7500×3200 ×2850 |
8000×4500 ×2770 |
8600×4600 ×2900 |
