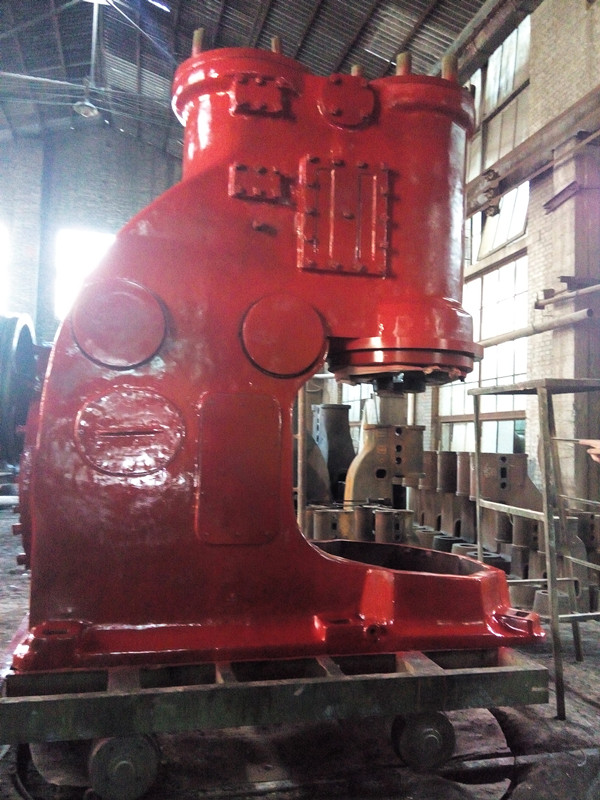

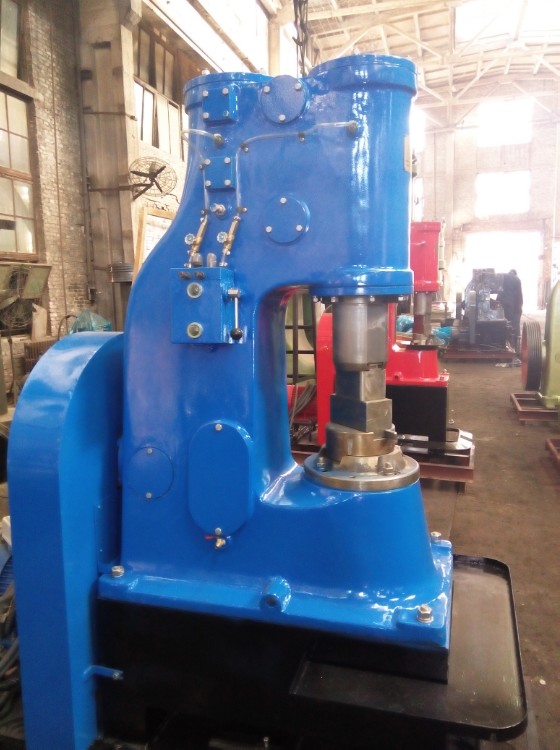

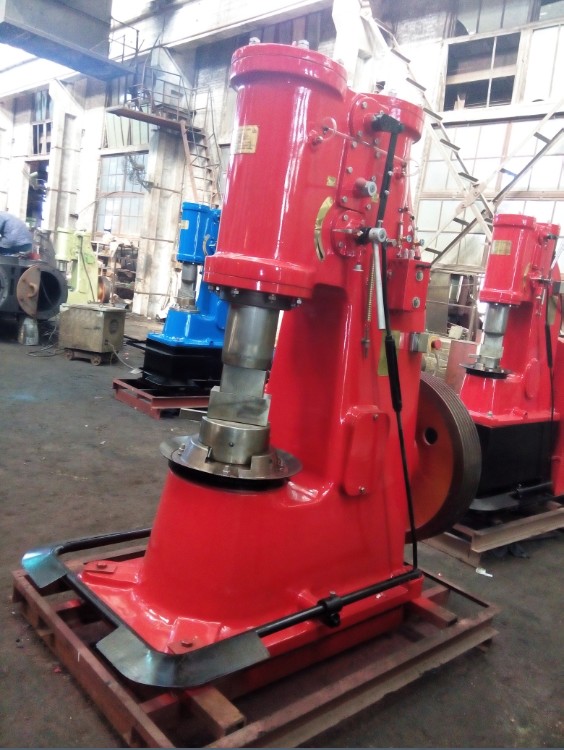

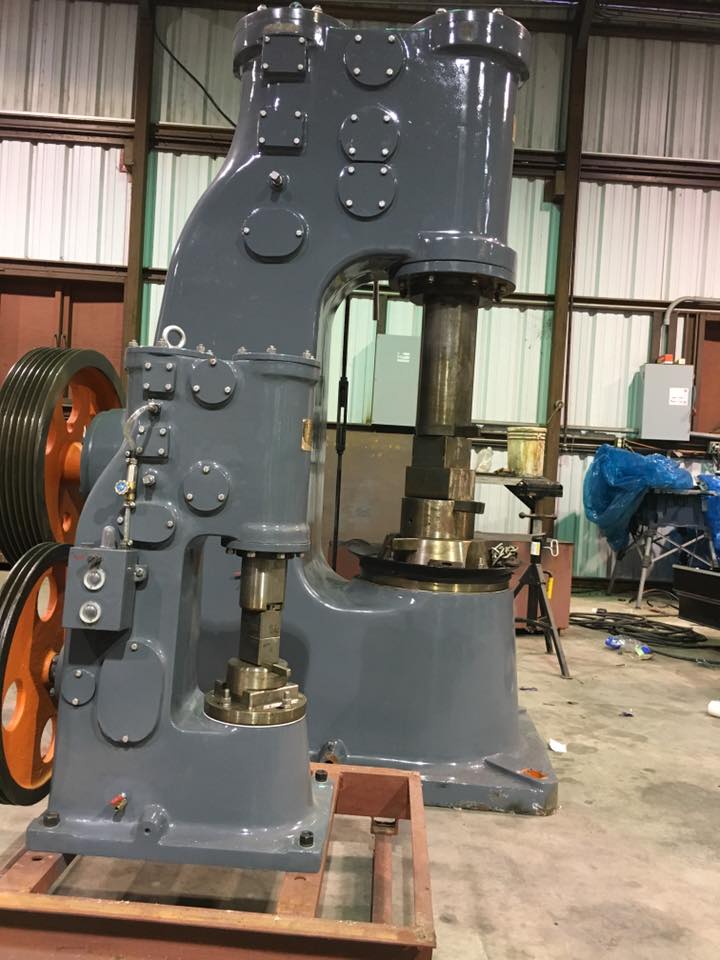

Pneumatic Forging Hammer

Features:

1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.

  • Parameters

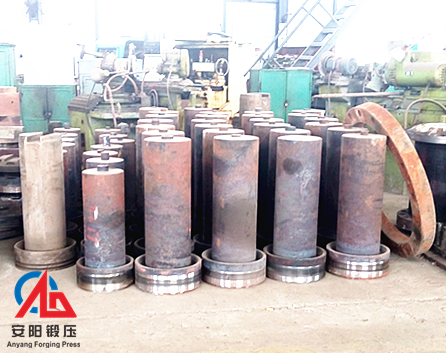

  • Manufacturing
  • Video
  • Customer
  • Application Fields
  • Download

Parameters

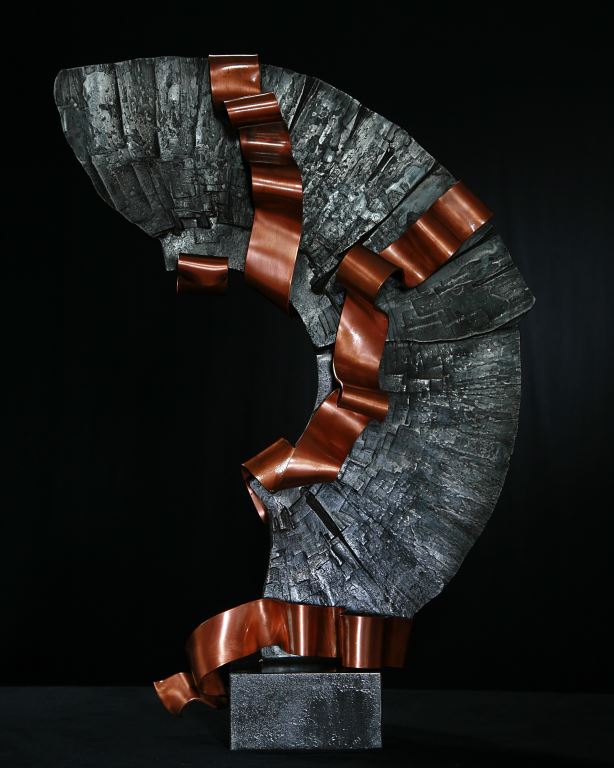

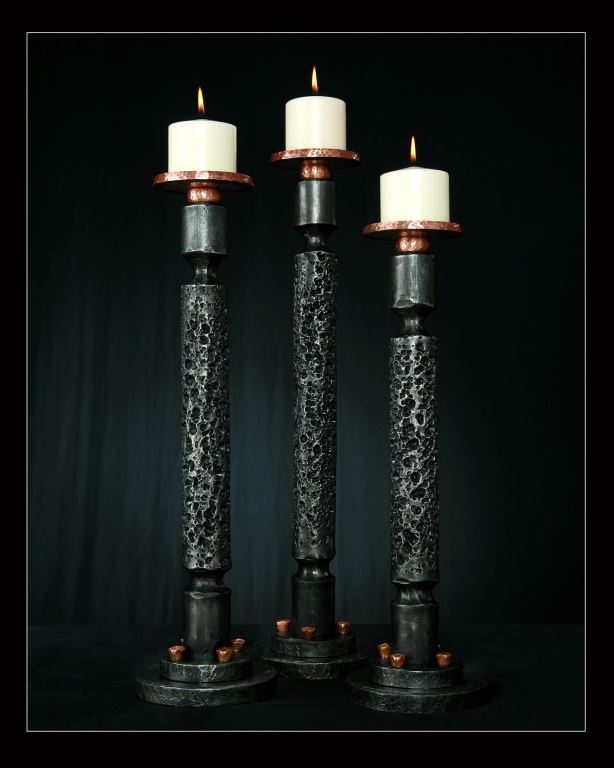

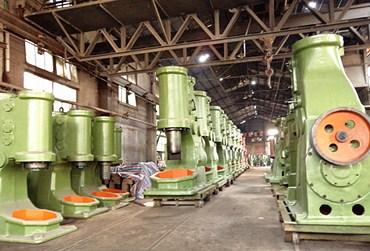

Our pneumatic forging hammer from 9kg to 110kg are widely used by blacksmith to do art forging, from 150kg to 2000kg are widely used in the industrial forging.

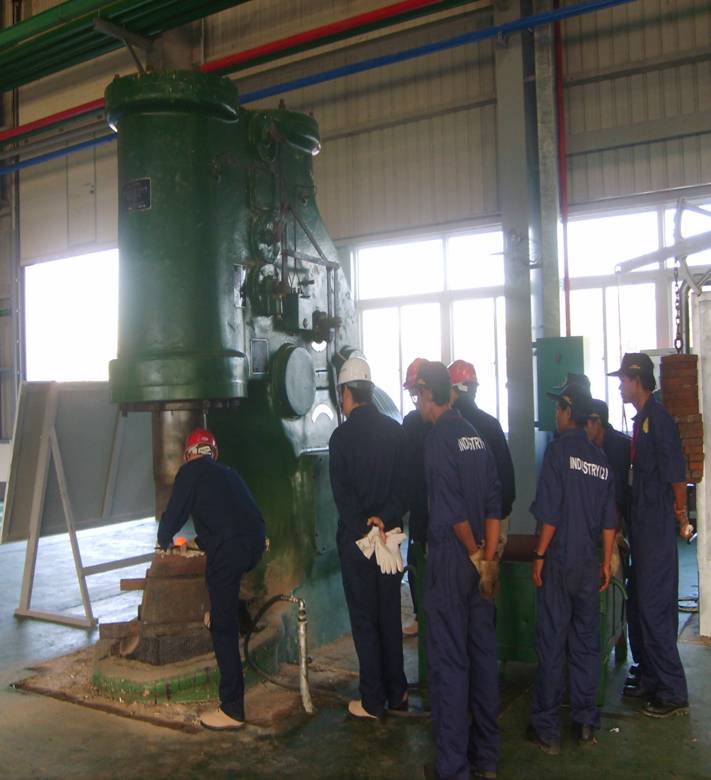

Pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.

Anyang Pneumatic forging hammer parameters

Model

C41-150

C41-250

C41-400

C41-560

C41-750

C41-1000

C41-2000

Weight of falling parts(kg)

150

250

400

560

750

1000

2000

Hitting energy (kj)

2.5

5.6

9.5

13.7

19

27

54

Hitting frequency(min-1)

180

140

120

115

105

95

80

Height of working area(mm)

370

450

530

600

670

800

1000

Depth of throat(mm)

350

420

520

550

750

800

950

Working

Piece

Square(mm*mm)

130×130

145×

145

220×

220

270×

270

270×

270

290×

290

350×

350

Round(mm)

Φ145

Φ175

Φ240

Φ280

Φ300

Φ320

Φ400

Motor

Model

Y180M-

4-B3

Y180L-

4-B3

Y200L-

4-B3

Y280S-

6-B3

Y280M-

6-B3

Y315S-

6-B3

Y315L2-

6-B3

Power (kw)

18.5

22

30

45

55

75

132

Weight

Without anvil(kg)

3260

5000

8000

9800

17000

20000

48000

Outside size (mm)

680×

420×

850

700×

450×

980

1100×

500×

1300

1400×

600×

1500

1300×

700×

1600

1480×

800×

1853

1900×

1070×

2382

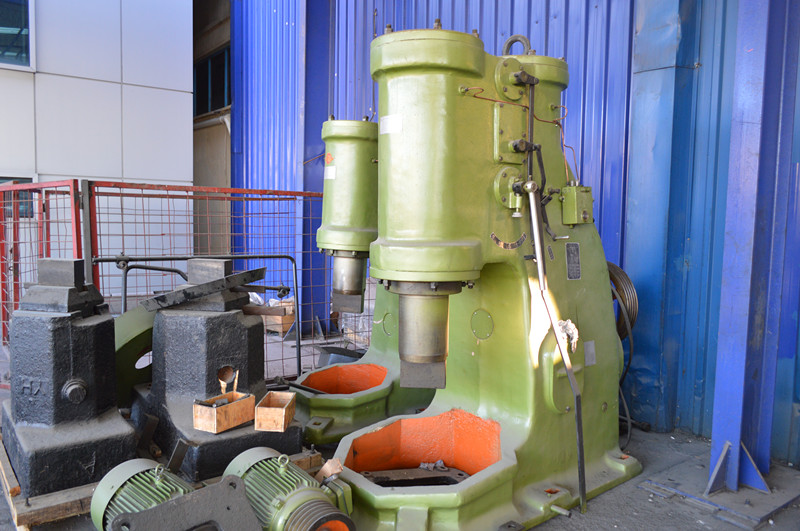

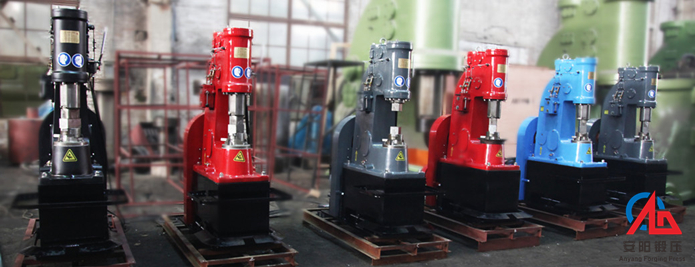

 [Introduction of blacksmith power hammer]

1, Anyang pneumatic forging hammer do not need out-side air compressor. will compress air inside with motor driven flywheel.
2, Anyang power hammer save place in the workshop, no need do special foundation.

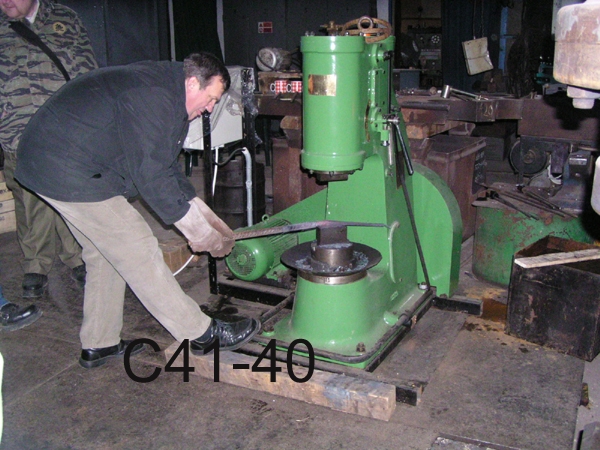

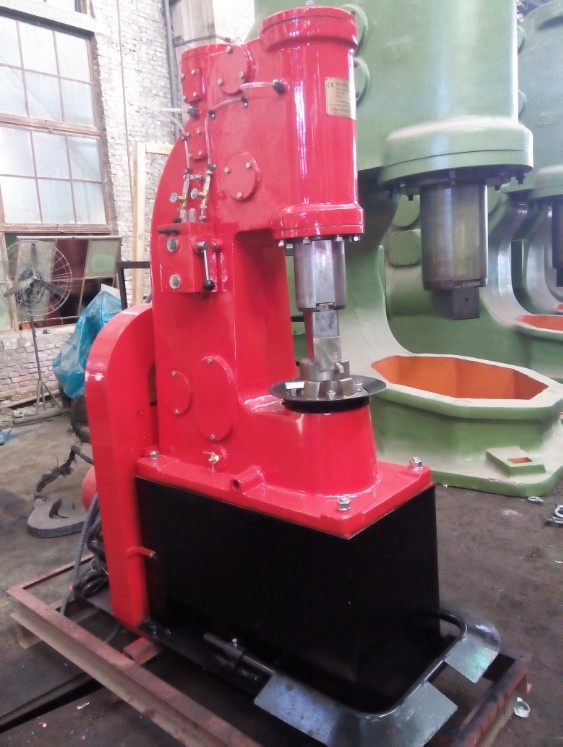

3, Blacksmith power hammer ( C41-9, C41-15,C41-25,C41-40,C41-55,C41-75,C41-110 ) has SINGLE FRAME and good for forging work handling.
4, Anyang power hammer is able to with high speed continuous strokes and good for titanium and other special alloy material free forgings.

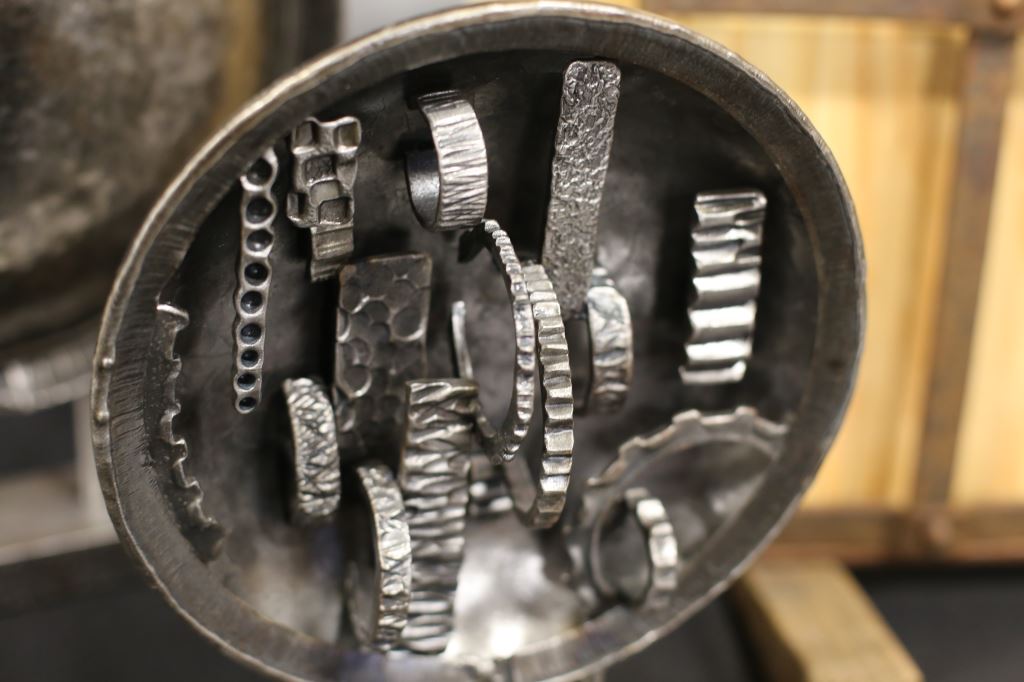

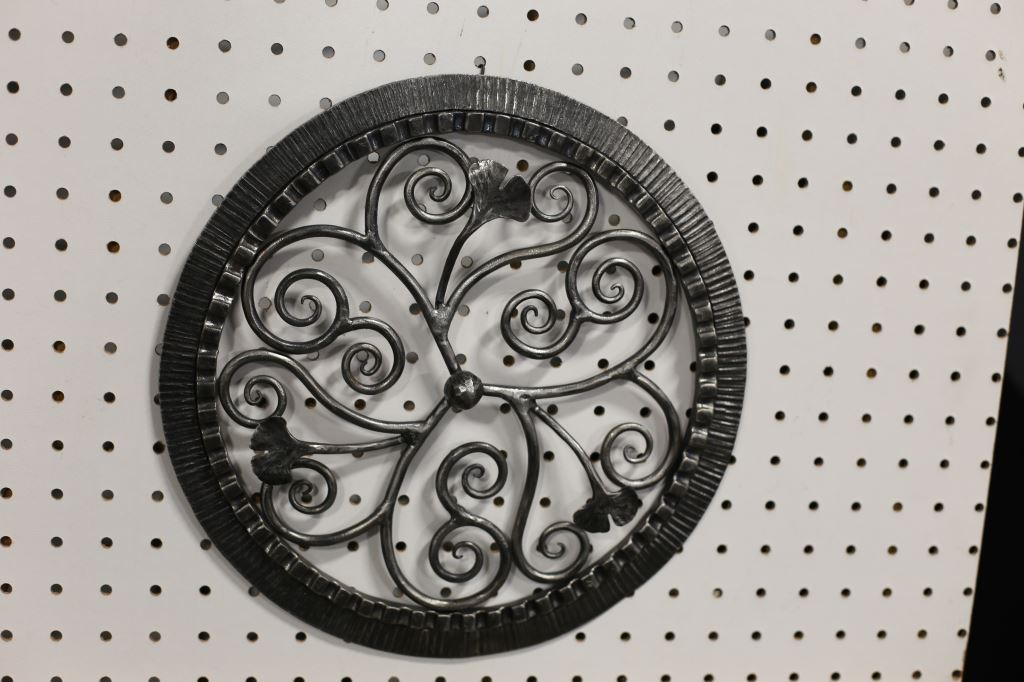

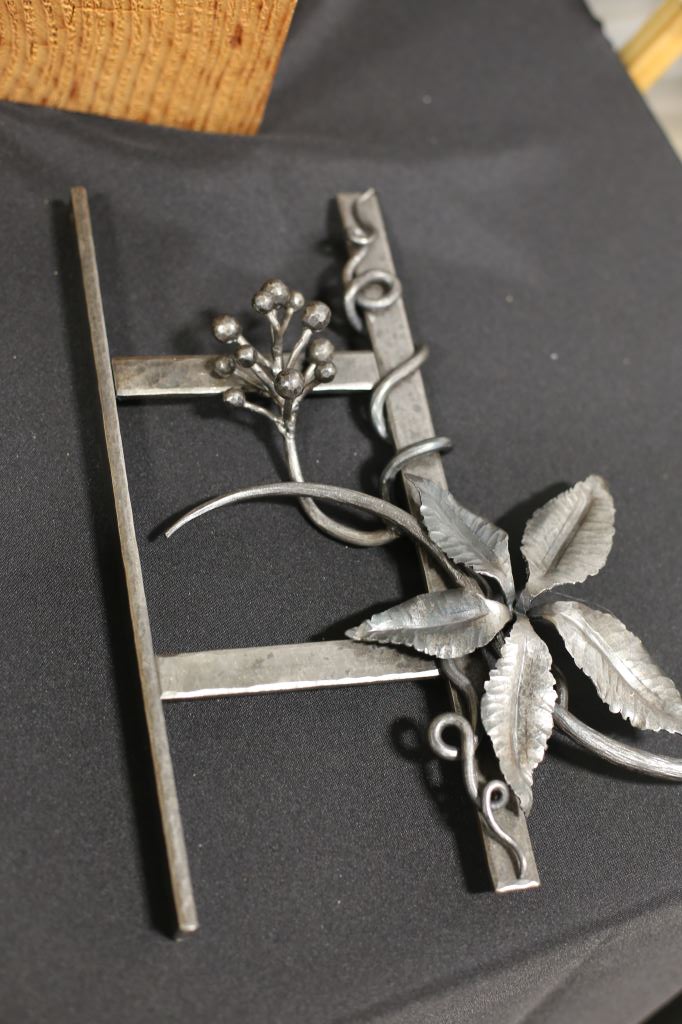

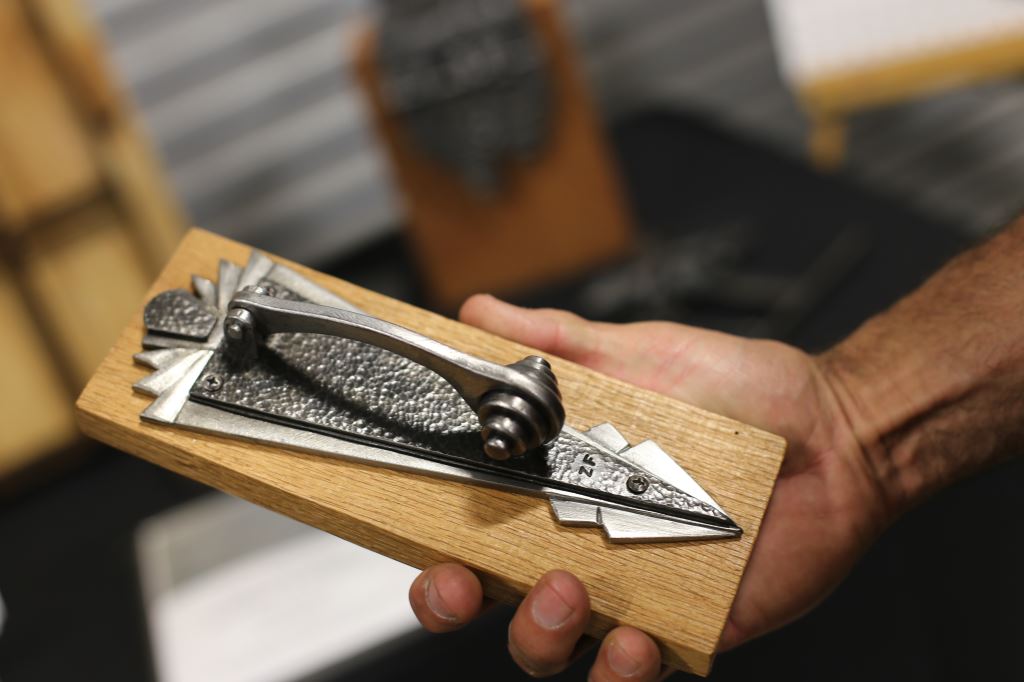

5, Anyang power hammer good for making work handling tools for forging operation, forged hunting knives, scissors, general operational tools, farm implements and iron art parts for house gate & fence.

6, All anyang power hammers have got CE.



Anyang Power Hammer (for blacksmith) parameters

Model

C41-9

C41-15

C41-25

C41-40

C41-55

C41-75

C41-110

Weight of falling parts(kg)

9

15

25

40

55

75

110

Hitting energy(kj)

0.09

0.16

0.27

0.53

0.7

1

1.98

Hitting frequency(min-1)

245

245

250

245

230

210

180

Height of working area(mm)

135

160

240

245

270

297

355

Depth of throat(mm)

120

140

200

235

270

280

400

Working

Piece

Square(mm*mm)

25×25

30×30

40×40

52×52

60×60

65×65

110×110

Round (mm)

Φ30

Φ35

Φ48

Φ68

Φ75

Φ85

Φ120

Motor

Model

Y90L-4-B3

Y100L1-4

Y132S1-6

Y132M1-6

Y132M2-6

Y160M -6

Y180L-6

Power(kw)

1.5

2.2

3

4

5.5

7.5

15

Weight

Without anvil(kg)

250

270

720

860

1300

2500

3300

Outside size(mm)

680×

420×

850

700×

450×

980

1100×

500×

1300

1400×

600×

1500

1300×

700×

1600

1480×

800×

1853

1900×

1070×

2382

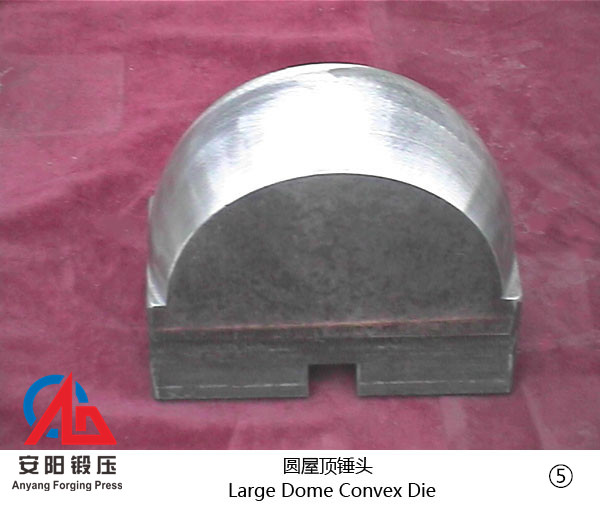

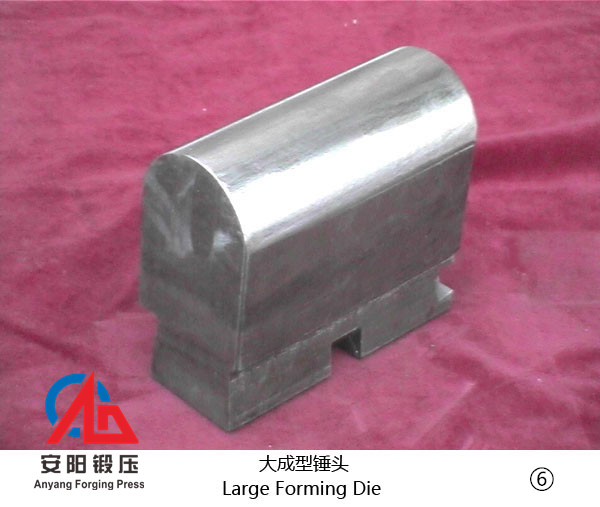

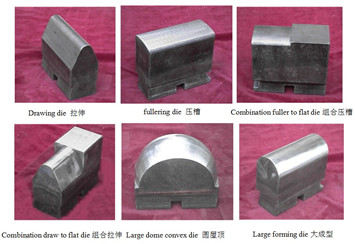

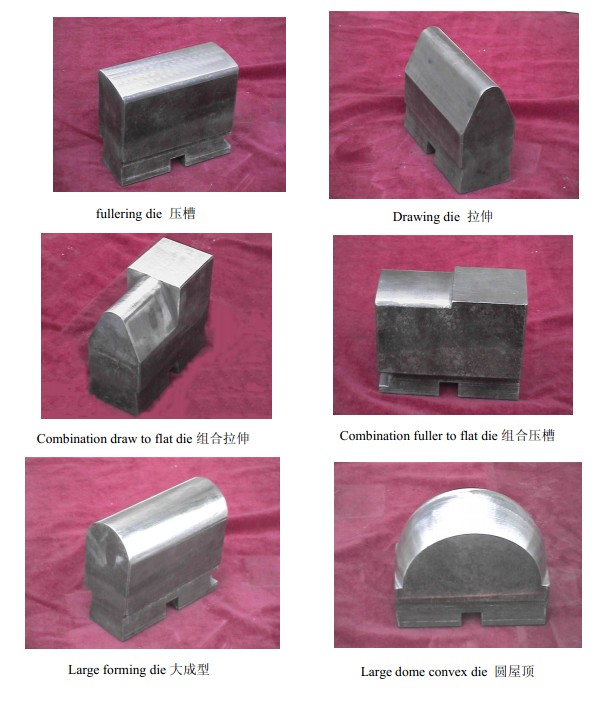

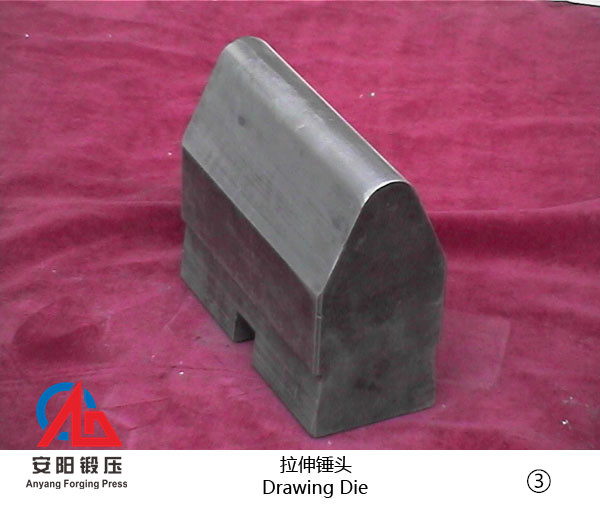

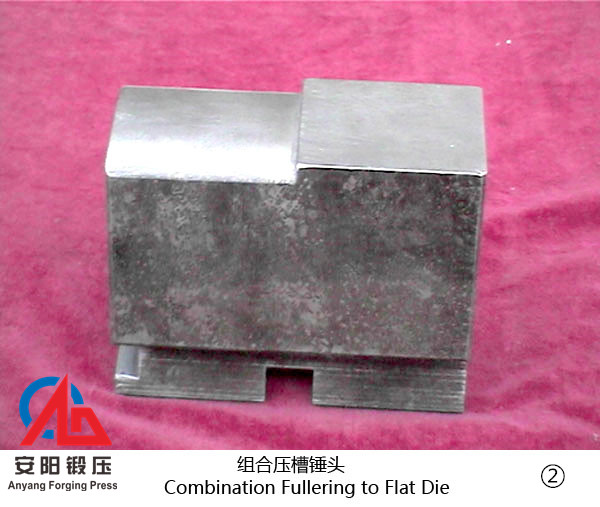

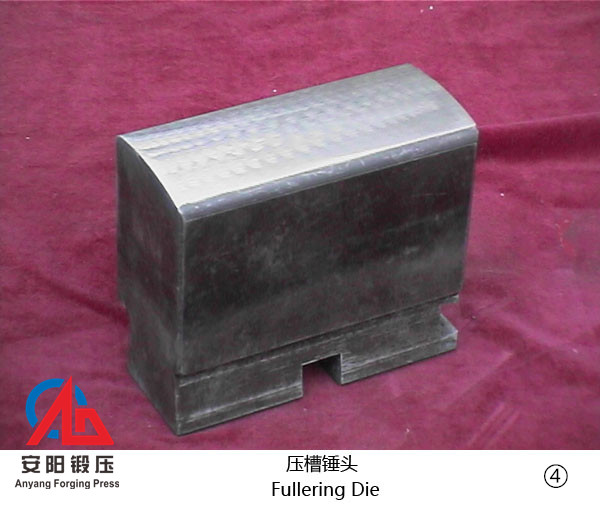

[Forging Dies for Power Hammer]
