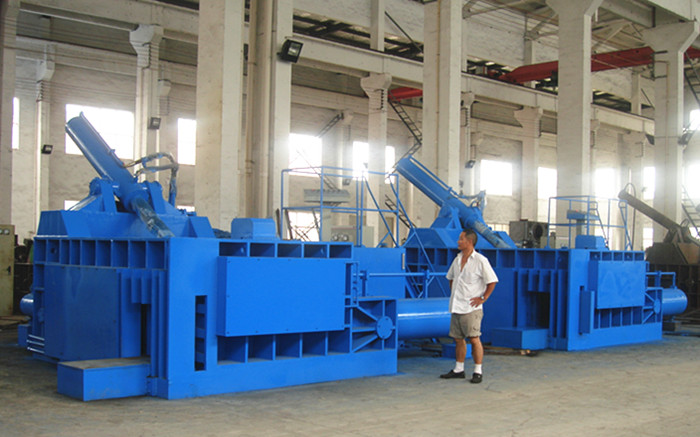

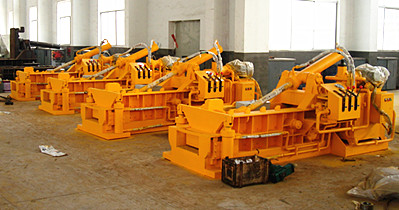

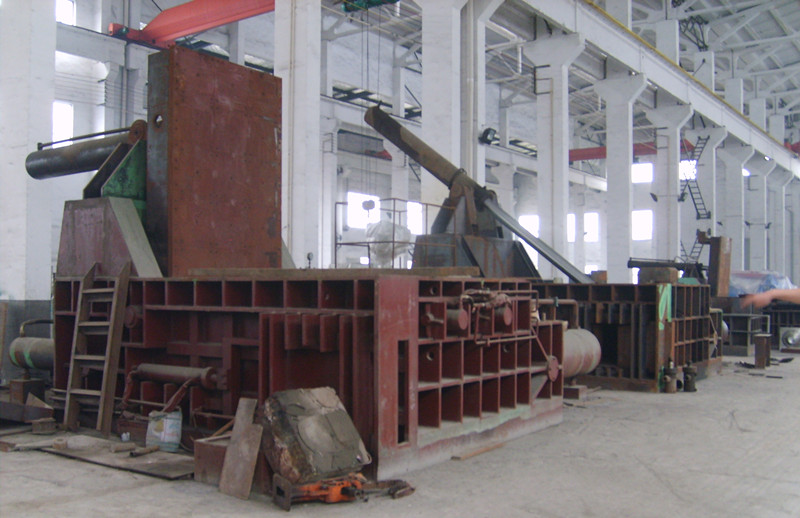

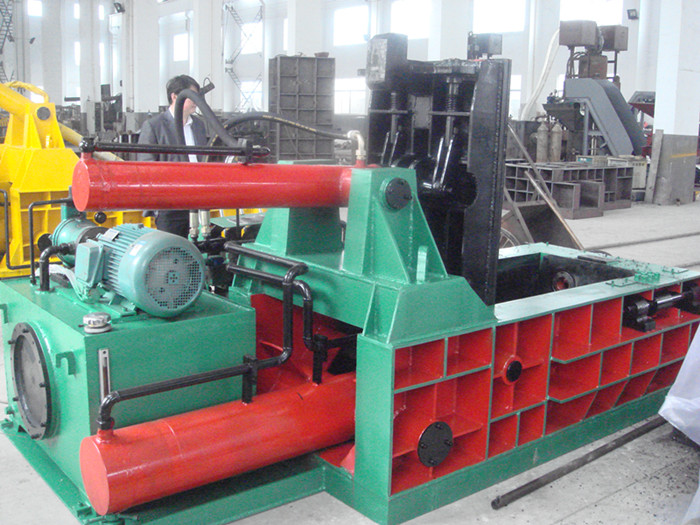

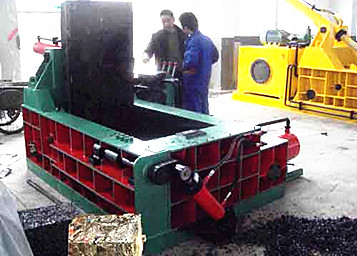

Hydraulic Baling Press

Hydraulic baling machines are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to recycle metal scrap (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in shapes of cuboids.


Features:
1. Hydraulic drive, manual or PLC control.
2. Bale-discharging: turn-out, push-out, forward-out, manual discharging.
3. Options for different force, press box size, bale shape & size.

  • Parameters

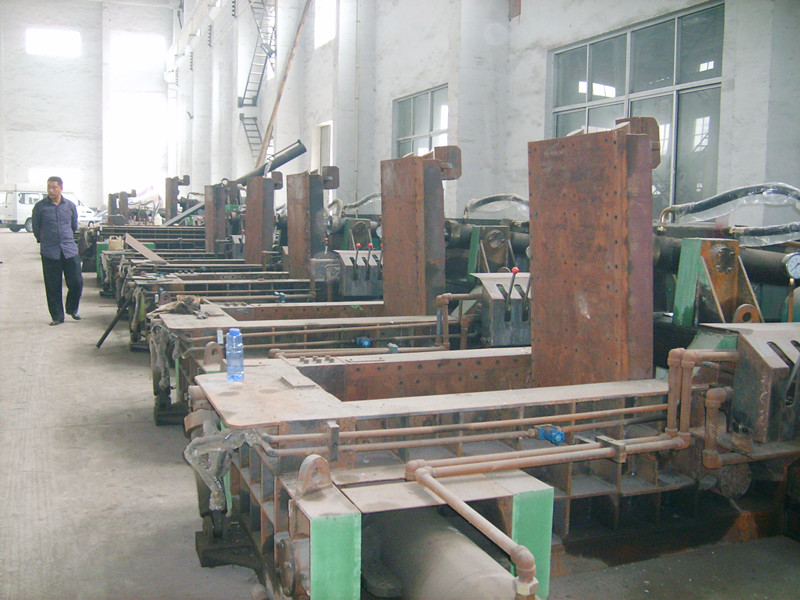

  • Manufacturing
  • Video
  • Customer
  • Application Fields
  • Download

Parameters

Item unit Y81-63 Y81-63A Y81-100 Y81-100A Y81-130B Y81-130C Y81-135
Pressure of main cylinder  KN 630 630 1000 1000 1300 1300 1300
ID of main cylinder  mm ¢180 ¢180 ¢220 ¢220 ¢250 ¢250 ¢250
Baling Chamber  mm 750×500
×350
1000×600
×500
1000×700
×550
1100×500
×500
1200×700
×550
1200×800
×550
1400×600
×600
Final Bale size  mm 180×180 200×200 300×300
250×250
220×220
200×200
200×(200-500) 300×300
250×250
220×220
200×200
300×300
250×250
600×250
Baled block density  kg/m3 ≥1800 ≥1800 ≥1800 ≥1800 ≥1800 ≥1800 ≥1800
Productivity ton/shift 3-4 4-6 6-8 6-8 8-12 12-16 16-20
Power KW 7.5 11 11 11 15 15 18.5/22
Baler Discharging   manual Turn-out Turn-out Forward-out Turn-out Turn-out Forward-out
Machine Weight ton 3 4.5 5.5 5 6 6.2 7.8
Item unit Y81-160 Y81-160A Y81-200 Y81-250 Y81-315 Y81-400 Y81-600
pressure of main cylinder  KN 1600 1600 2000 2500 3150 4000 6000
ID of main cylinder  mm ¢280 ¢280 ¢320 ¢340 ¢400 ¢450 ¢550
Baling Chamber  mm 1200×700
×550
1600×800
×800
1600×1200
×800
2000×1200
×800
2000×1400
×1200
2500×1600
×1200
2800×2000
×1200
Final Bale size  mm 300×300 350×350 350×400 450×450 450×500 500×600 600×700
Baled block density  kg/m3 ≥1800 ≥1800 ≥1800 ≥1800 ≥1800 ≥1800 ≥1800
productivity ton/shift 12-16 16-20 24 30 30-36 36-50 80
Power KW 18.5/22 18.5/22 30 30 37 44 90
Baler Discharging   Turn-out Turn-out Push-out,
Turn-out
Push-out,
Turn-out
Push-out,
Turn-out
Push-out,
Turn-out
side-out
Machine Weight ton 8 12 20 28 32 40 90
